Description:

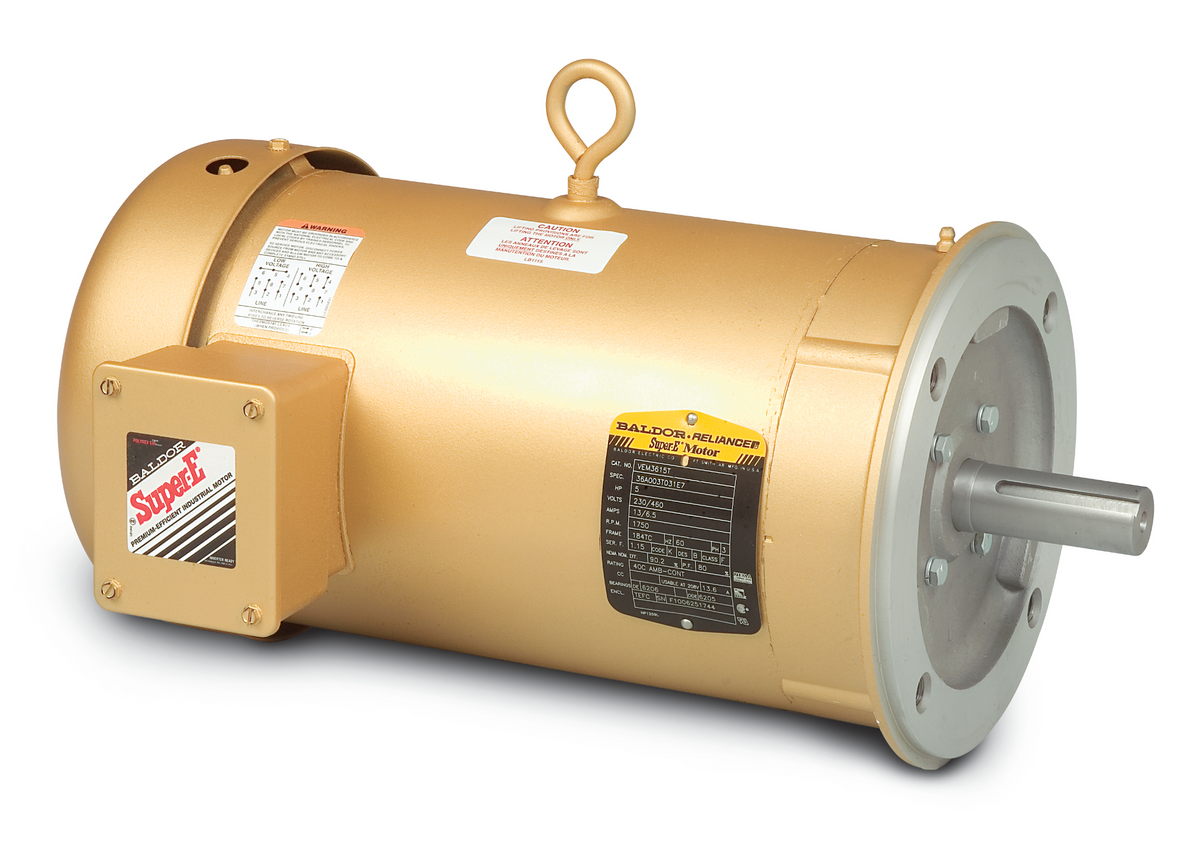

Product Type: Three PhaseHP: 1-1/2RPM: 3500Volts: 575Amps: 1.5Hz: 60Phase: 3Frame: 143TCEnclosure Type: TEFC (Totally Enclosed Fan Cooled)Enclosure Material: SteelMounting: C-FaceShaft Diameter: 0.875"Overall Length: 12.29"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Bearings: BallEfficiency: 84.0%Maximum
Attributes
| Key | Value |
|---|---|
| Amps | 1.5 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84.0% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 143TC |
| HP | 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Manufacturer Model # | 35AA003M784G1 |
| Maximum Ambient Temperature | 40? C |
| Mounting | C-Face |
| Number of Speeds | 1 |
| Overall Length | 12.29" |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 3500 |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 35 lbs. |
| Volts | 575 |
