| CC Number | CC010A |
| Country of Origin (subject to change) | United States |
| Duty, Duty Cycle | Continuous |
| Frame | 184TC |
| Frame Material | Rolled steel |
| Full Load Amps | 16.8/8.4 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| HP | 7 1/2 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Inverter Rated, Usable @ 208V | Yes |

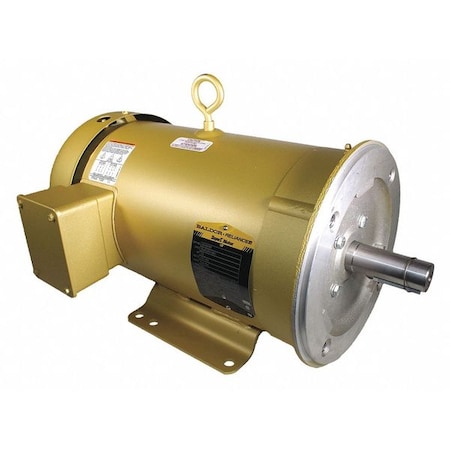

| Item | General Purpose Motor |
| Length Less Shaft | 15 7/16 in |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 3,450 |
| NEMA Design | A |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Overall Length | 18 1/16 in |
| Phase | Three |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 11/16 in |
| Standards | CSA, CSA EEV, UR |
| Usable @ 200V | No |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Weight | 101 lb |
