Baldor-Reliance BC142-5

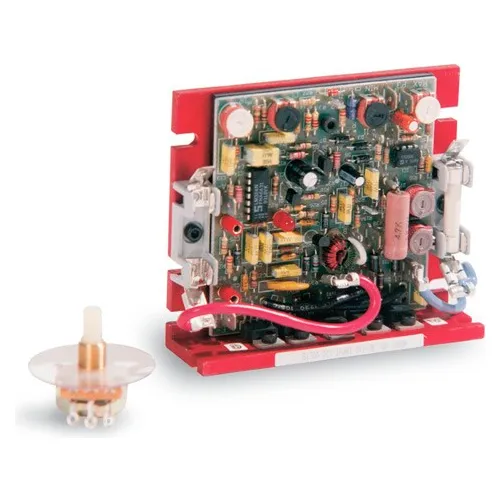

Chassis mount SCR controls have a free-wheeling diode and feature adjustable accel, decal, current limit, IR comp, min and max speed pots to match applications. The anti-demag features protects PM motors and helps protect the SCR power bridge against direct shorts. The controls have UL and cUL component recognition.<br><br><b>Product Overview:</b><ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Chassis SCR Control</li><li>Dual voltage</li><li>Supplied without fuses and fuse holders</li><li>Optional Heatsink ? BC143 Heatsink kit is available to increase the drives capabilities to handle a higher output power rating. <b><font color=red>If the BC143 heatsink is added, the unit will be able to handle up to 1.5 HP at 90 VDC or 3 HP at 180 VDC.</b></font></li></ul><br><b>NOTE:</b> A Plug-in Horsepower Resistor? and armature fuse <b><u>MUST</b></u> be ordered and installed in all versions of BC141 and BC142 controllers. Horsepower Resistors should be selected based on the motor's rated current.<b>(Sold Separately)</b><br><br>
