Description:

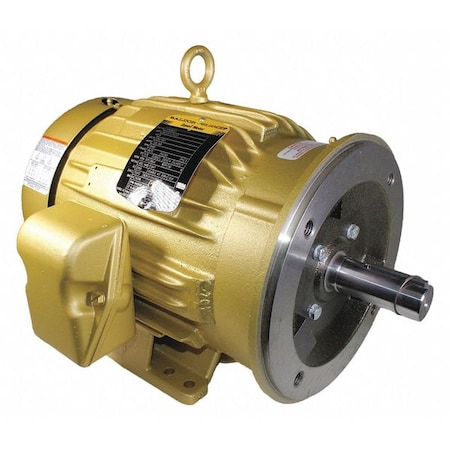

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,165, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.3/3.2, 184TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal
Attributes
| Key ^ | Value |
|---|---|
| Frame | 184TC |
| HP | 2 |
| Includes | Conduit Box |
| Item | General Purpose Motor |
| Length Less Shaft | 13 3/8 in |
| Manufacturers Warranty Length | 3 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,165 |
| Overall Length | 16 in |
| RPM Range | 1,101-1,200 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 11/16 in |
| Standards | CSA, CSA EEV, UR |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
