Baldor EM3556T
Baldorzoom

Baldor EM3556T

mpn:
EM3556T
brand:
Baldor-Reliance
manufacturer:
Baldor-Reliance
MPN:
EM3556T
Description:
Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.<br><br><b>Features</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Heavy gauge steel and cast iron frames</li><li>Ball bearings</li><li>ISR? (Inverter Spike Resistant?) copper windings</li><li>Low-loss electrical grade lamination steel</li><li>Three year warranty</li></ul><b>Application(s)</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.</li></ul>
Weight:
2.625
Weight:
41.0 LB
Preferred Price:
1054.17
Price:
1054.17
Min Simple Price:
595.58
Absolute Min Price:
845.72
Min Price:
845.72
Dimensions:
[14.0, 1.0, 1.0]
qty:
21
simpleSku:
Mzg5Nw:::EM3556T
sku:
Mzg5Nw::NZ:EM3556T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps3.6/3.6/1.8
Application, Product TypeGeneral Purpose
Bearing Type, BearingsBall
Composition, Enclosure Material, Frame Material, Motor Frame MaterialSteel
ConstructionCast Iron
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency82.5%
Efficiency %82.5 %
EnclosureTotally Enclosed Fan Cooled
Enclosure, Enclosure TypeTEFC
Estimated Weight42.00
Family SeriesBaldor Motors, M Series
FL Amps3.6/1.8
FL Efficiency82.5
Frame, NEMA Frame145T
Gross Weight, Net Weight41 lbs
Hertz, Hz60
Horsepower1 hp
HP, Number of Speeds1
Insulation ClassF
Inverter DutyYes, No
ItemGeneral Purpose Motor
Item Number, Part NumberEM3556T
Length Less Shaft11 1/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35AA001M497G1
Manufacturers Warranty Length3 yr
Maximum Ambient Temperature40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor, Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal Protection, Overload ProtectionNone
MountingFoot Mount, Rigid
Mounting TypeFoot Mount, Rigid
Nameplate RPM, RPM, Speed (RPM)1155
Nominal Voltage208 VAC, 240 VAC, 415 VAC, 480 VAC
Overall Length13 5/16 in, 13.31", 13.31 "
Phase3, 3 Phase
Product SeriesM
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1155 RPM
RPM Range1,101-1,200
SeriesSuper-E Series
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 1/4 in
Ship Weight42 lbs.
StandardsCSA, CSA EEV, UR
UPC Code781568541180
Voltage208-230/460V AC, 208V, 230V, 460V
Voltage (AC)208-230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Volts230/460

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.comEM3556T595.58595.581In StockBaldor595.58 @ Qty: 1+
thumbzoomPurvisEM3556T783.4783.41In StockBaldor-Reliance783.4 @ Qty: 1+
thumbzoomemotorpro.comEM3556T792.29792.291In StockBaldor42.0792.29 @ Qty: 1+
thumbzoomVoomi SupplyEM3556T793.99793.991In StockBaldor Motor793.99 @ Qty: 1+
us.rs-online.com71944170798.39798.3911Baldor-Reliance798.39 @ Qty: 1+
thumbzoommidwestapplianceparts.comEM3556T-BM-P798.61798.6111Baldor798.61 @ Qty: 1+
thumbzoomgsistore.comEM3556T833.33833.331In StockBaldor Motor833.33 @ Qty: 1+
thumbzoomGalcoEM3556T-BLDR870.86870.861In StockBaldor41.0870.86 @ Qty: 1+
thumbzoomWalker IndustrialEM3556T876.67876.671In StockBaldor876.67 @ Qty: 1+
thumbzoomGlobal IndustrialWBB909482878.0878.01In StockBaldor-Reliance878.0 @ Qty: 1+
factorysupplyoutlet.comIZ29EF907.14907.141In StockBaldor-Reliance907.14 @ Qty: 1+
motorsandcontrol.comEM3556T913.19913.191In StockBaldor Reliance42.0913.19 @ Qty: 1+
thumbzoomZoroG8984735919.99919.991In StockBaldor-Reliance919.99 @ Qty: 1+
thumbzoomstandardelectricsupply.com2389084950.15950.151In StockBaldor Electric950.15 @ Qty: 1+
thumbzoomapexindustrialautomation.comEM3556T1011.541011.5411Baldor-Reliance1011.54 @ Qty: 1+
thumbzoompumpproducts.comEM3556T1037.671037.671In StockBaldor1037.67 @ Qty: 1+
thumbzoomcbtcompany.comEM3556T1038.841038.841In StockBaldor Reliance1038.84 @ Qty: 1+
kirbyrisk.com23935311149.481149.481In StockBaldor1149.48 @ Qty: 1+
thumbzoomsustainablesupply.comC14908701216.541216.541In StockBaldor Electric41.01216.54 @ Qty: 1+
motionindustries.com044953291264.61264.61In StockBaldor-Reliance1264.6 @ Qty: 1+
thumbzoomRaptor SuppliesAJ6UAB1500.2434981500.2434981In StockBALDOR MOTOR1500.243498 @ Qty: 1+
B06XDGYKNZ
Baldor EM3556T

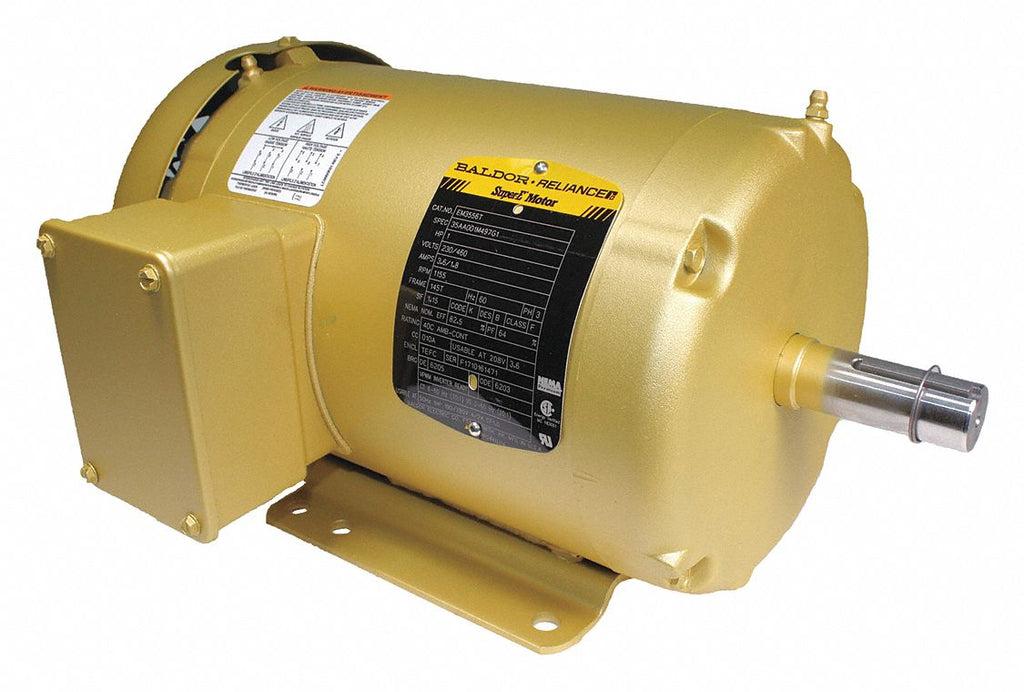

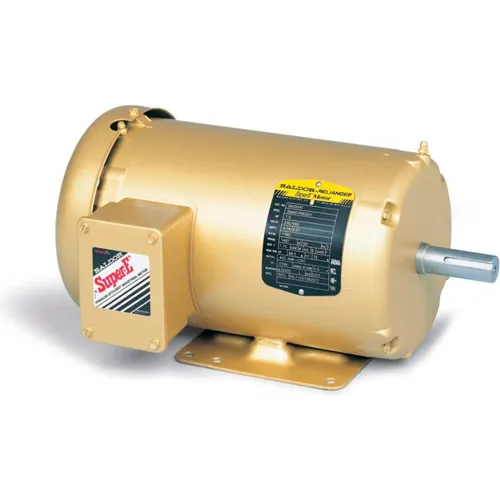

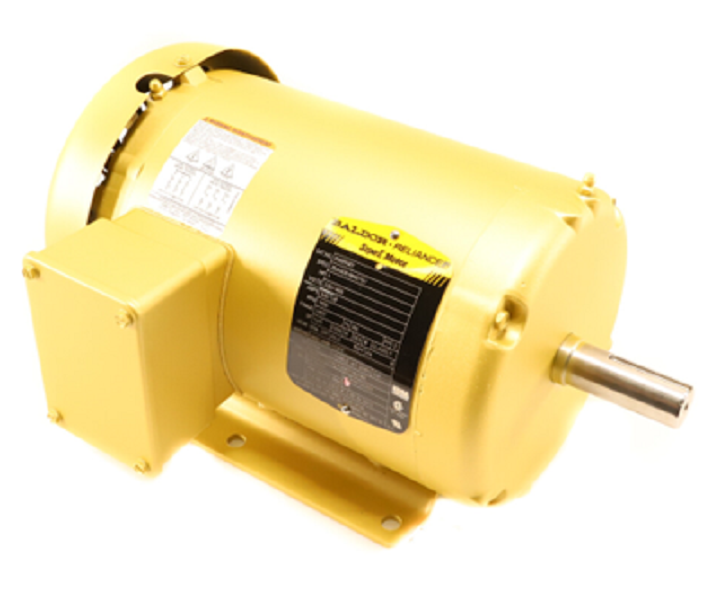

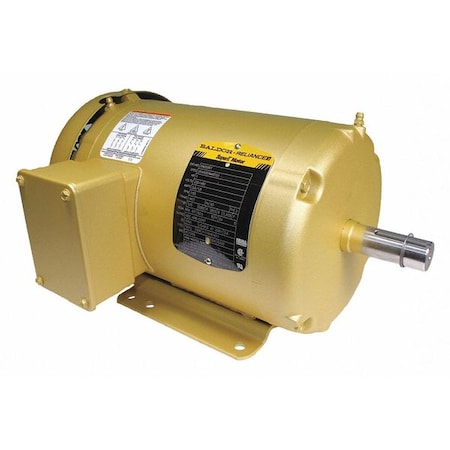

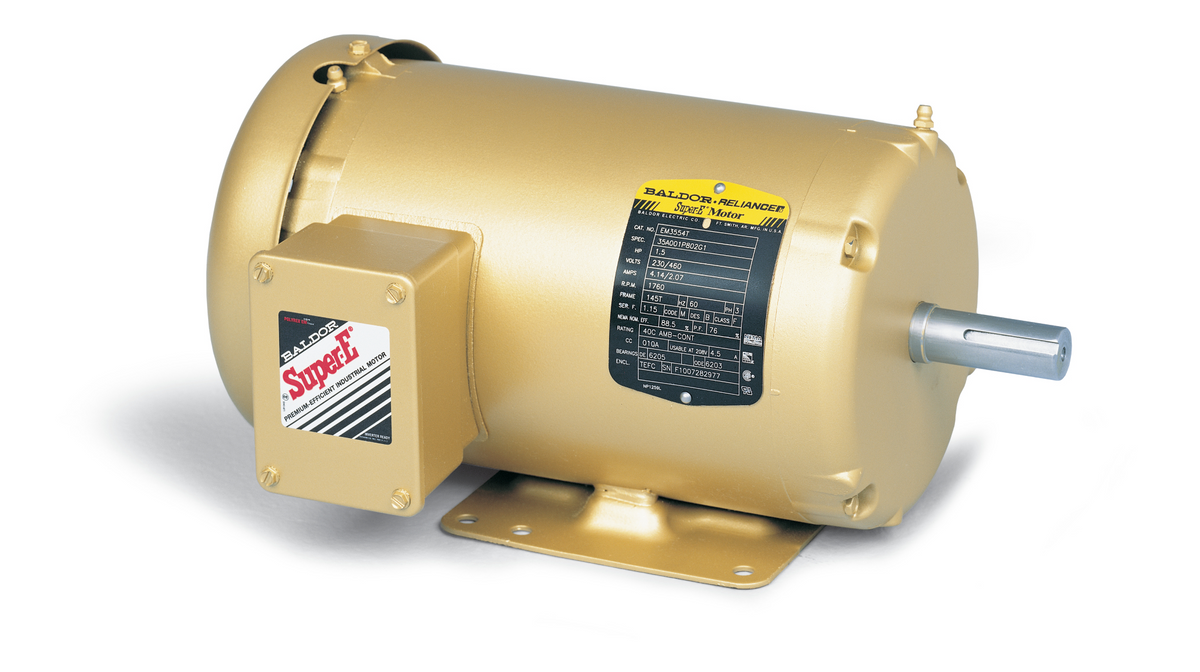

Baldor General Purpose Motor EM3556T, 1 HP, 208-230/460 V, 3 PH, 1155 RPM, 145T, TEFC

Baldor General Purpose Motor EM3556T, 1 HP, 208-230/460 V, 3 PH, 1155 RPM, 145T, TEFCzoom
