Description:

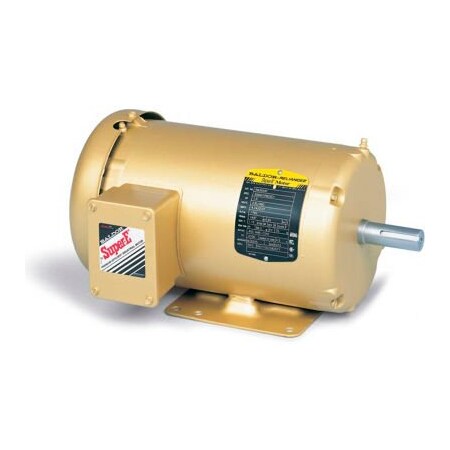

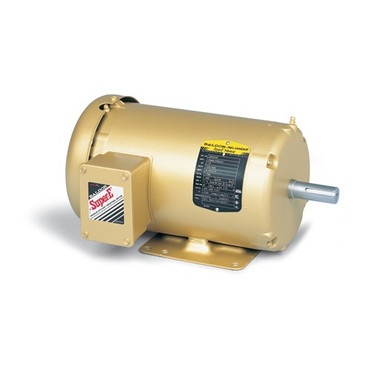

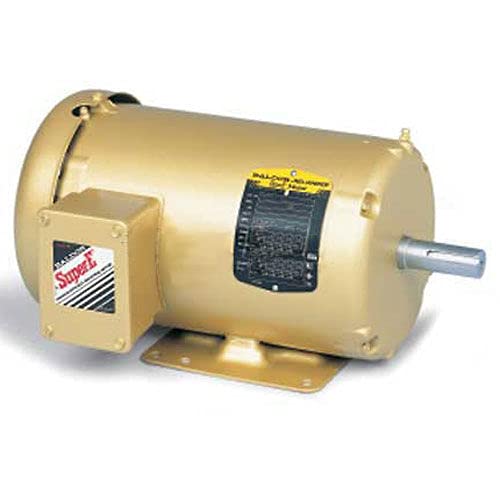

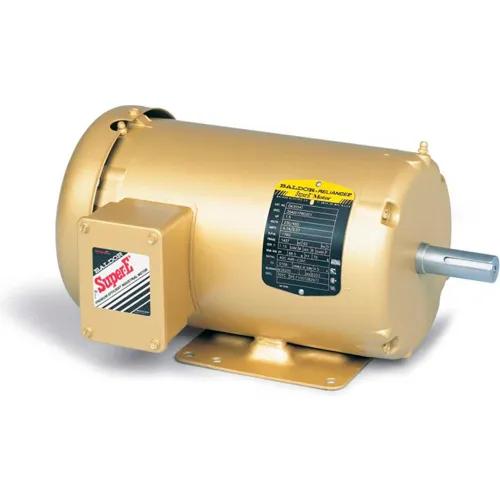

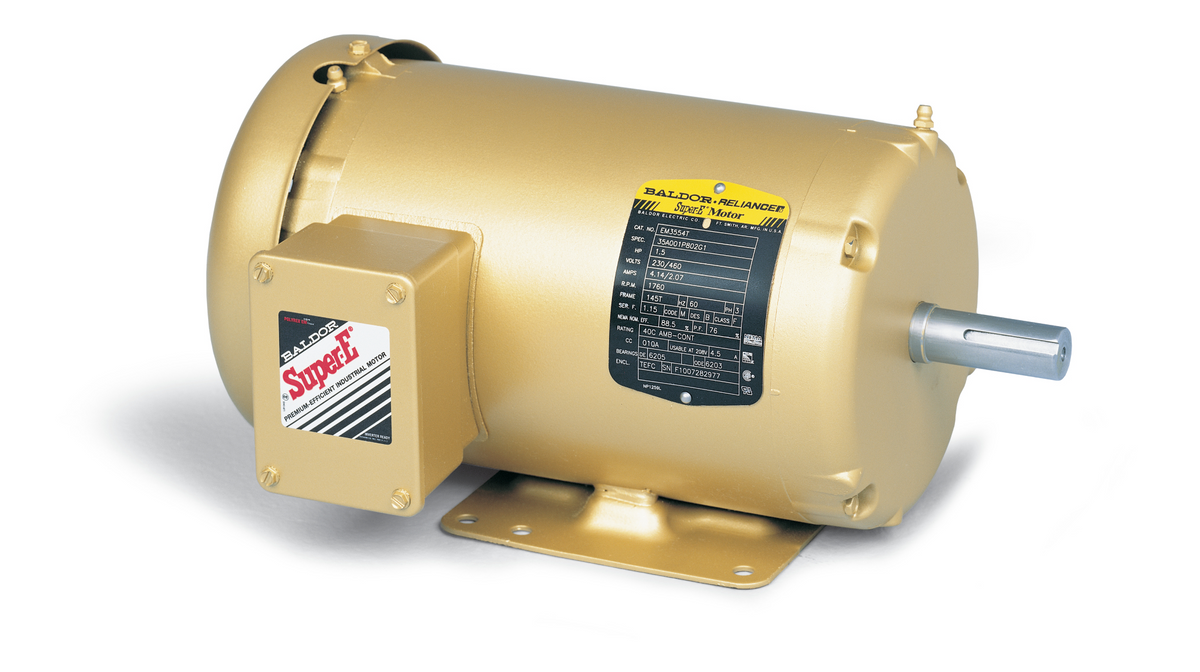

Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.<br><br><b>Features</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Ball bearings</li><li>Suitable for mounting any position</li><li>Heavy gauge steel and cast iron frames</li></ul><b>Application(s)</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Pumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.</li></ul>
Weight:
153.0
Weight:
165.0 LB
Preferred Price:
2202.67
Min Offer Price:
1064.97
Price:
2202.67
Min Simple Price:
1244.45
Absolute Min Price:
1767.11
Min Price:
1767.11
Dimensions:
[25.0, 16.0, 15.0]
qty:
21
simpleSku:
Mzg5Nw:::EM3714T-5
sku:
Mzg5Nw::73:EM3714T-5@y0
condition:
11
seller:
emotorpro.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 9.8 |
| Application, Product Type | General Purpose |
| Bearing Type, Bearings | Ball |
| Composition, Enclosure Material | Steel |
| Construction | Cast Iron |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Efficiency % | 91.7 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Enclosure, Enclosure Type | TEFC |
| Estimated Weight | 165.00 |
| Family Series | Baldor Motors, EM Series |
| FL Amps | 9.6 |
| FL Efficiency | 91.7 |
| Frame, NEMA Frame | 215T |
| Gross Weight, Net Weight | 165 lbs |
| Hertz, Hz | 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Item Number, Manufacturer Part Number, Part Number | EM3714T-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 37H244L872 |
| Maximum Ambient Temperature | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Foot Mount, Rigid |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 20.52 ", 20.52" |
| Phase | 3, 3 Phase |
| Product Series | EM |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1770 RPM, 1765 |
| Series | Super-E Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1.375" |
| Ship Weight | 165 lbs. |
| Speed (RPM) | 1770 |
| UPC Code | 781568139080 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | emotorpro.com | EM3714T-5 | 1244.45 | 1244.45 | 1 | In Stock | Baldor | 165.0 | 1244.45 @ Qty: 1+ | |
 | midwestapplianceparts.com | EM3714T-5-BM-P | 1254.39 | 1254.39 | 1 | In Stock | Baldor | 1254.39 @ Qty: 1+ | ||
 | galesburgelectric.com | EM3714T-5 | 1376.98 | 1376.98 | 1 | In Stock | Baldor | 1376.98 @ Qty: 1+ | ||
 | Walker Industrial | EM3714T-5 | 1376.99 | 1376.99 | 1 | In Stock | Baldor | 1376.99 @ Qty: 1+ | ||
 | Galco | EM3714T-5-BLDR | 1376.99 | 1376.99 | 1 | In Stock | Baldor | 165.0 | 1376.99 @ Qty: 1+ | |
 | Global Industrial | WBB909431 | 1379.0 | 1379.0 | 1 | In Stock | Baldor-Reliance | 1379.0 @ Qty: 1+ | ||
| motorsandcontrol.com | EM3714T-5 | 1434.36 | 1434.36 | 1 | In Stock | Baldor Reliance | 165.0 | 1434.36 @ Qty: 1+ | ||
 | Purvis | EM3714T-5 | 1452.6 | 1452.6 | 1 | In Stock | Baldor-Reliance | 1452.6 @ Qty: 1+ | ||
| factorysupplyoutlet.com | HB69RD | 1489.69 | 1489.69 | 1 | In Stock | Baldor-Reliance | 1489.69 @ Qty: 1+ | |||
 | apexindustrialautomation.com | EM3714T-5 | 1588.83 | 1588.83 | 1 | 1 | Baldor-Reliance | 1588.83 @ Qty: 1+ | ||
 | pumpproducts.com | EM3714T-5 | 1629.83 | 1629.83 | 1 | In Stock | Baldor | 1629.83 @ Qty: 1+ | ||
| us.rs-online.com | 71944251 | 1721.22 | 1721.22 | 1 | In Stock | Baldor-Reliance | 1721.22 @ Qty: 1+ | |||
| motionindustries.com | 00535012 | 2181.22 | 2181.22 | 1 | In Stock | Baldor-Reliance | 2181.22 @ Qty: 1+ | |||
 | Zoro | G804930586 | 2404.97 | 2404.97 | 1 | In Stock | Baldor-Reliance | 2404.97 @ Qty: 1+ | ||
 | Raptor Supplies | AJ6UEZ | 4101.2666955 | 4101.2666955 | 1 | In Stock | BALDOR MOTOR | 4101.2666955 @ Qty: 1+ |
