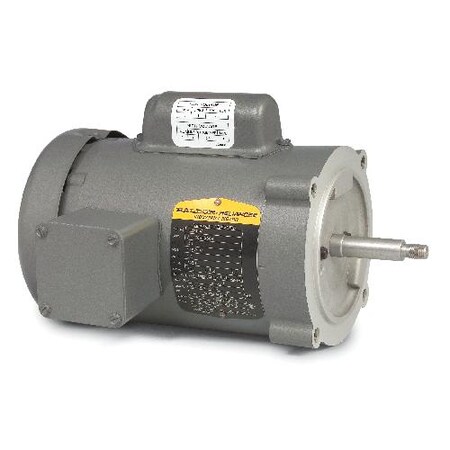

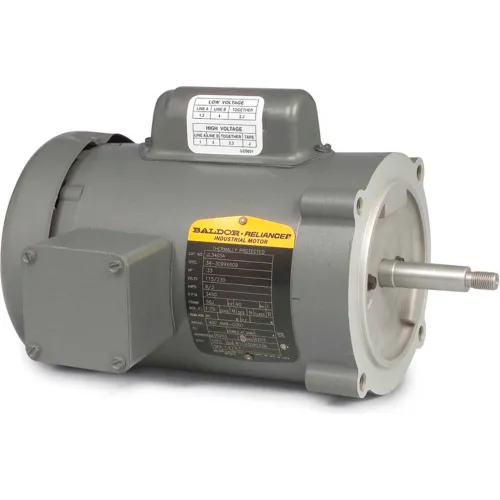

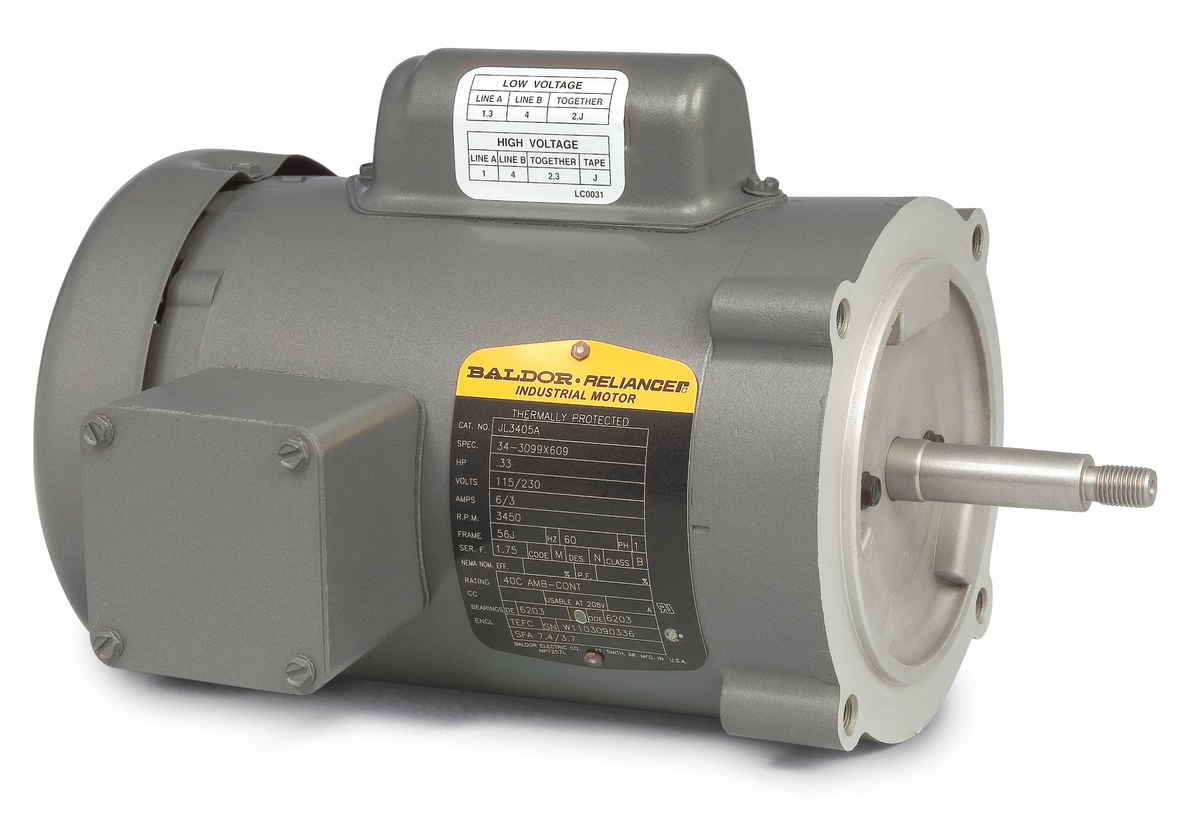

Baldor JL3510A Pump Motor
- Brand: Baldor
- PartNumber: JL3510A
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 12.4/6.2 |
| Application | Pump Motor |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 67.0% |
| Efficiency % | 67 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 42.00 |
| Family Series | Baldor Motors |
| FL Amps | 12.4/6.2 |
| FL Efficiency | 67 |
| Frame | 56J |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Gross Weight | 44 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| Horsepower Rating | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Item Number | JL3510A |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35F083-0527G1 |
| Manufacturer Part Number | JL3510A |
| Maximum Ambient Tempera. | 40? C |
| Mounting | C-Face, Footless |
| Mounting Type | Flange Mount, Footless |
| NEMA Frame | 56J |
| Net Weight | 44 lbs |
| Nominal Voltage | 120 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.74" |
| Part Number | JL3510A |
| Phase | 1, 1 Phase |
| Product Type | Pump |
| Rotation | Fixed Opposite Standard |
| RPM | 1725 RPM, 1725, 1,725 R. |
| Series | PJ1 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 40 lbs. |
| Special Features | Automatic Thermal Overl. |
| Speed (RPM) | 1725 |
| Supply Voltage | 115/230 VAC |
| Thermal Protection | Automatic |
| UPC Code | 781568218808 |
| Voltage | 110-120V, 230V, 115-230 |
| Voltage (AC) | 110-120 VAC |
| Volts | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 26076 | 591.75 | 1 | In Stock | | Baldor | | 591.75 @ 1 |
 | emotorpro.com | JL3510A | 623.92 | 1 | In Stock | | Baldor | 40.0 | 623.92 @ 1 |
| factorysupplyoutlet.com | KW78AZ | 683.47 | 1 | In Stock | | Baldor-Reliance | | 683.47 @ 1 |
 | Galco | JL3510A-BLDR | 690.37 | 1 | In Stock | | Baldor | 44.0 | 690.37 @ 1 |
 | Walker Industrial | JL3510A | 702.08 | 1 | In Stock | | Baldor | | 702.08 @ 1 |
| motorsandcontrol.com | JL3510A | 719.13 | 1 | In Stock | | Baldor Reliance | 42.0 | 719.13 @ 1 |
 | Global Industrial | WBB389334 | 742.0 | 1 | In Stock | | Baldor-Reliance | | 742.0 @ 1 |
| us.rs-online.com | 71934292 | 797.78 | 1 | In Stock | | Baldor-Reliance | | 797.78 @ 1 |
 | pumpproducts.com | JL3510A | 817.67 | 1 | In Stock | | Baldor | | 817.67 @ 1 |
 | cbtcompany.com | JL3510A | 831.96 | 1 | In Stock | | Baldor Reliance | | 831.96 @ 1 |
 | Zoro | G3312630 | 845.0 | 1 | In Stock | | Baldor-Reliance | | 845.0 @ 1 |
| kirbyrisk.com | 3130676 | 920.56 | 1 | In Stock | | Baldor | | 920.56 @ 1 |
| motionindustries.com | 02461123 | 995.53 | 1 | In Stock | | Baldor-Reliance | | 995.53 @ 1 |
 | Raptor Supplies | AJ6WQD | 2056.2703785 | 1 | In Stock | | BALDOR MOTOR | | 2056.2703785 @ 1 |
