Description:

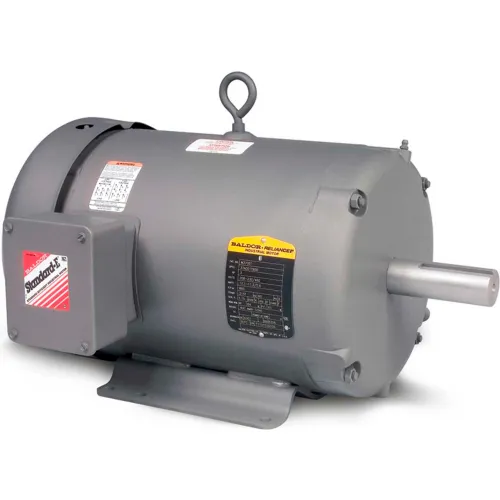

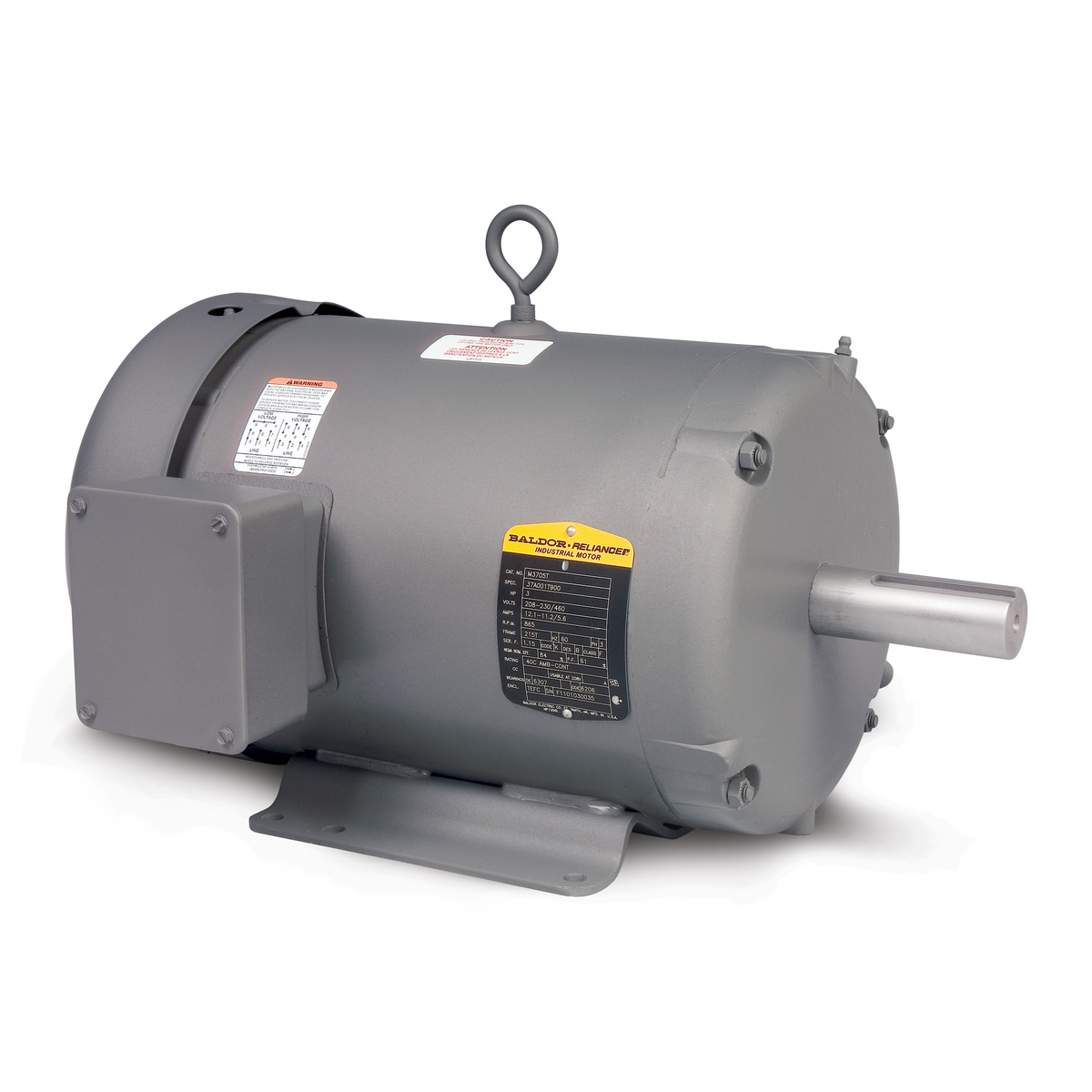

Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.<br><br><b>Features</b><ul style=margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Ball bearings</li><li>Suitable for mounting any position</li><li>Heavy gauge steel and cast iron frames</li></ul><b>Application(s)</b><ul style=margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Pumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.</li></ul><br><br>
Weight:
2.0625
Weight:
33.0 LB
Preferred Price:
940.47
Price:
940.47
Min Simple Price:
531.34
Absolute Min Price:
754.5
Min Price:
754.5
Dimensions:
[13.0, 1.0, 1.0]
qty:
21
simpleSku:
Mzg5Nw:::M3543-5
sku:
Mzg5Nw::1B:M3543-5@y0
condition:
11
seller:
MRO Supply
amzMan:
baldor electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps, FL Amps | 1.2 |
| Application, Product Type | General Purpose |
| Bearings | Ball |
| Comments, Frequency | 60 Hz |
| Composition, Construction | Cast Iron |
| Country of Origin (subject to change) | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 77.0% |
| Efficiency % | 77 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Material | Steel |
| Enclosure, Enclosure Type | TEFC |
| Estimated Weight | 33.00 |
| Family Name | Three Phase Enclosed Family |
| Family Series | Baldor Motors |
| FL Efficiency | 77 |
| Frame, NEMA Frame | 56H |
| Gross Weight, Net Weight | 0 lbs |
| Hertz, Hz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Insulation Class | B |
| Item Number, Part Number | M3543-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 34J153W415 |
| Maximum Ambient Temperature | 40? C |
| Mounting | Rigid |
| Mounting Type | Footed |
| Mounting, Mounting Type | Foot Mount |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Overall Length | 12.84" |
| Phase | 3, 3 Phase |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1140 RPM, 1,140 RPM |
| RPM, Speed (RPM) | 1140 |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625" |
| Ship Weight | 33 lbs. |
| UPC Code | 781568429662 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| Voltage, Volts | 575 |
