mpn:
brand:
manufacturer:
MPN:
Description:

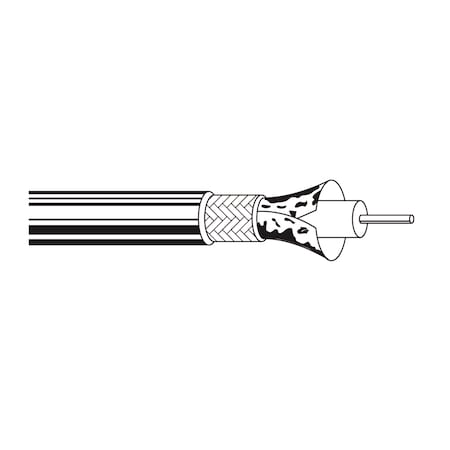

BELDEN 1855A 0071000 | Wire: coaxial; RG59 mini; 1x23AWG; solid; Cu; 23AWG; polyetylen
Weight:
17.0
Weight:
17.0 LB
Preferred Price:
7.27
Price:
7.27
Min Simple Price:
0.52793
Absolute Min Price:
6.95
Min Price:
6.95
Dimensions:
[12000.0, 1.0, 1.0]
qty:
21
simpleSku:
jQ2Njg:::1855A 0071000
sku:
jQ2Njg::J8:1855A 0071000@y0
condition:
11
seller:
Digi-Key
amzMan:
belden
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| AWG Size | 23 |
| Cable application | digital video broadcasting, |
| Cable external diameter | 4.04mm |
| Cable Type | RG59/U |
| Color, Insulation colour | violet |
| Conductor Configuration | 1 Coax / Triax |
| Conductor Count, No. of Conductors | 1 |
| Conductor Material | Bare Copper |
| Conductor Size | 23 AWG |
| Conforms | UL 1666 |
| Core diameter | 23AWG |
| Core structure, Stranding@Conductor1 | solid |
| Country of Origin | US - United States |
| CPR Euroclass, CPR UKCA Class | Eca |
| CPR standard | E |
| CSA Flammability | FT4 |
| ECCN | EAR99 |
| EU CE Mark, EU Directive 2015/863/EU, Suitability - Indoor, UV Resistance | Yes |
| Information | The UL Label and Mark on full factory packaging only |
| Insulation Material | Polyolefin (PO, PE, PP), Foamed HDPE |
| Jacket, Jacket Material | PVC |
| Kind of core | Cu |
| Kind of wire | RG59 mini |
| Length | 1000 ft, 1000 ft. |
| Manufacturer | BELDEN |
| Material@Insulation01 | PE - Polyethylene (Foam) |
| Operating temperature | -30...75?C |
| Package contents | 305m |
| Put-Up Type | Reel |
| Resistance to | UV rays |
| Shield structure | Al-PET-Al foil, |
| Shielded | Aluminum Foil Polyester Tape |
| Shielding | Foil + Braid(s) |
| Suitability - Aerial | Yes - Black only, when supported by messenger wire |
| Suitability - Outdoor | Yes - Black only |
| Type of wire | coaxial |
| UL Flammability | UL1666 Vertical Shaft |
| UL Temp Rating | 75?C |
| UL voltage rating | 300 V RMS |
| Wave impedance | 75? |
| Wire insulation material | polyetylene |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Digi-Key | BEL30152-1000-ND | 0.52793 | 211.488758 | 1000 | 189 | Belden Inc. | 0.52793 @ Qty: 1000+ | |||
| Onlinecomponents.com | 1855A-007-1000 | 0.64 | 256.384 | 1000 | 1000 | Belden | 0.64 @ Qty: 1000+ | |||
 | pacrad.com | BLD1855A-VIO-1K | 1.2 | 1.2 | 1 | 83 | Belden | 1.2 @ Qty: 1+ | ||
| RS Delivers | 187-6103 | 2.664 | 2.664 | 1 | 1220 | Belden | 2.664 @ Qty: 1+ | |||
| TME | 1855A.0071000 | 3.83 | 9.958 | 5 | 26 | BELDEN | 3.83 @ Qty: 5+ | |||
| Mouser | 566-1855A-1000-07 | 756.32 | 756.32 | 1 | 3 | Belden | 756.32 @ Qty: 1+ | |||
 | Zoro | G3175262 | 791.99 | 791.99 | 1 | 26 | 30 | Belden Bav | 791.99 @ Qty: 1+ | |
| Graybar | 99912041 | 881.8544 | 881.8544 | 1 | In Stock | Belden | 881.8544 @ Qty: 1+ | |||
| us.rs-online.com | 71316867 | 944.83 | 944.83 | 1 | 1 | Belden | 944.83 @ Qty: 1+ | |||
 | Newark | 19C3108 | 1052.88 | 1052.88 | 1 | In Stock | BELDEN | 1052.88 @ Qty: 1+ |
