- mpn19511 B59250
- brandname: Belden
- manufacturername: Belden

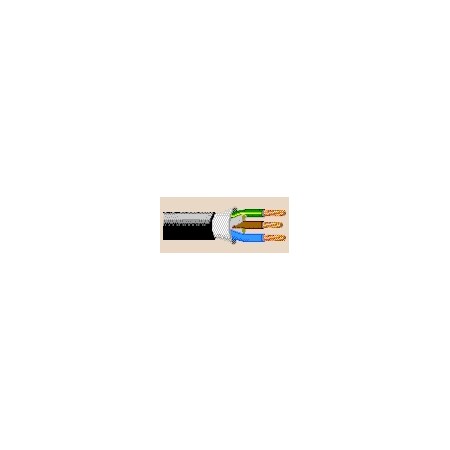

Belden 19511 Portable Cordage - UL/CSA Types
- Brand: Belden
- PartNumber: 19511 B59250
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | For outdoor use, contro. |
| AWG Size | 14 |
| Base Product Number | 19511 |
| Cable Type | Multi-Conductor, Portab. |
| Category | Cables, Wires |
| Color | Black, Matte |
| Conductor Configuration | 3 Conductor |
| Conductor Count | 3 |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Bare Copper (BC), Bare . |
| Conductor Strand | 41/30 |
| Configuration | Conductors |
| Cordage Type | SJTOW |
| CSA AWM Specification | SJTOW |
| CSA Flammability | FT1 |
| Current Rating | 18 A |
| Description | CABLE 3COND 14AWG BLACK. |
| Detailed Description | 3 Conductor Multi-Condu. |
| Dielectric Voltage | 2000 VAC |
| Digi-Key Part Number | BEL1006-250-ND |
| EU CE Mark | Yes |
| Features | - |
| Insulation Material | PVC, Polyvinyl Chloride. |
| Insulation Thickness | 0.032 in. |
| Jacket | PVC |
| Jacket (Insulation) Dia. | 0.380" (9.65mm) |
| Jacket (Insulation) Mat. | Belflex? |
| Jacket (Insulation) Thi. | 0.0400" (1.016mm) |
| Jacket Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Length | 250.0' (76.2m), 250 ft |
| Manufacturer | Belden Inc. |
| Manufacturer Product Nu. | 19511 B59250 |
| Manufacturer Standard L. | 5 Weeks |
| Material@Insulation01 | PVC - Polyvinyl Chloride |
| Mfr | Belden Inc. |
| Number of Conductors | 3 |
| Operating Temperature | -35 to +105 C, -40?C ~ . |
| Outer Diameter | 0.38 in. |
| Package | Spool |
| Package Quantity | 1 |
| Packaging | Coil |
| Product Header | Portable Cordage |
| Product Status | Active |
| Put-Up Type | Reel |
| Ratings | - |
| Series | Belflex 19511 Series, - |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Shielding | Unshielded |
| Standards | UL ; CSA ; EU CE |
| Stranding | 41x30 |
| Stranding@Conductor1 | 41x30 |
| Suitability - Oil Resis. | Yes |
| Suitability - Outdoor | Yes |
| Temperature, Rating | -35 to 105 C |
| UL Flammability | VW-1 |
| UL Temp Rating | 105?C |
| UL voltage rating | 300 V |
| Usage | - |
| Voltage Rating | 300 V |
| Wire Gauge | 14 AWG |
| Wire Size | 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 19511 B59250 | 4.4 | 1 | 250 | | Belden | | 4.4 @ 250 |
 | alldataresource.com | B19511 | 6.7 | 1 | 250 | | Belden | | 6.7 @ 250 |
| AmazonTP | B075XDRC4M | 977.86 | 1 | 250 | 1 | Belden | | 977.86 @ 250 |
 | Digi-Key | 7009508 | 1109.25 | 1 | 250 | | Belden Inc. | | 1109.25 @ 250 |
| us.rs-online.com | 70005454 | 1484.73 | 1 | 250 | | Belden | | 1484.73 @ 250 |
 | Newark | 92F2196 | 1583.28 | 1 | 250 | | BELDEN | | 1583.28 @ 250 |
 | Zoro | G2844318 | 84774.75 | 1 | 250 | | Belden | | 84774.75 @ 250 |
