- mpn7929A 0101000
- brandname: Belden
- manufacturername: Belden

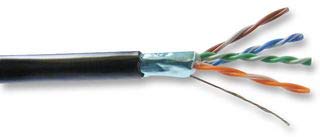

Belden 7929A 0101000 INDUSTRIAL ETHERNET, COPPER, BONDED PAIRS, FOIL SHIELDED BLACK
- Brand: Belden
- PartNumber: 7929A 0101000
- Size: 1000 feet
- PackageQuantity: 1
- Manufacturer: BELDEN
- Label: BELDEN
Attributes
| Key | Value |
|---|
| Additional Features | Aluminum Foil-Polyester. |
| Application | Industrial Ethernet, NT. |
| Base Product Number | 7929A |
| Cable application | indoor, |
| Cable external diameter | 6.99mm |
| Cable Type | Twisted Pair, Outdoor, . |
| Category | Cat 5e, Cables, Wires |
| Color | black |
| Color Family | black |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Bare Copper (BC), Coppe. |
| Conductor Strand | solid |
| Configuration | 4 Pair |
| Conform to the norm | UL 1666 |
| Core diameter | 24AWG |
| Core structure | solid |
| Country of Origin | US - United States |
| CPR standard | E |
| Description | CABLE CAT5E 8COND 24AWG. |
| Detailed Description | 8 (4 Pair Twisted) Cond. |
| Digi-Key Part Number | BEL2233-ND |
| ECCN | EAR99 |
| Ethernet category | Cat 5e |
| Family Name | DataTuff Family |
| Features | Drain Wire, Oil Resista. |
| Gauge | 24 AWG |
| Ground | tinned copper strand 24. |
| Information | The UL Label and Mark o. |
| Insulation colour | black |
| Insulation Material | Polyolefin (PO) |
| Jacket (Insulation) Dia. | 0.578" (14.68mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0300" (0.762mm) |
| Jacket Color | black |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Kind of core | Cu |
| Kind of wire | F/UTP |
| Length | 1000.0' (304.8m), 1000 . |
| Manufacturer | BELDEN, Belden Inc. |
| Manufacturer Product Nu. | 7929A 0101000 |
| Manufacturer Standard L. | 7 Weeks |
| Mfr | Belden Inc. |
| No. of Pairs | 4 |
| No. of pairs | 4 |
| Number of Conductors | 8, 8 (4 Pair Twisted) |
| Number of cores | 8 |
| Operating Temperature | -40?C ~ 75?C |
| Operating temperature | -40...75?C |
| Outer Diameter | 0.265 in. |
| Package | Spool |
| Package contents | 305m |
| Packaging | Coil, 1000 Foot Crate R. |
| Product Header | Industrial Data Solutio. |
| Product Status | Active |
| Rated voltage | 300V |
| Ratings | UL Style CMR |
| Series | Category 5e Series, Dat. |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield structure | Al-PET foil, |
| Shield Type | Foil |
| Shielded | Shielded |
| Shielding | Foil |
| Standards | UL NEC Type CMR ; CMX O. |
| Stranding | solid |
| Temperature, Rating | -40 to 75 C |
| Type of wire | data transmission |
| UNSPSC | 26121609 |
| Usage | Industrial, Network |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire insulation material | PVC |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | alldataresource.com | B7929A-1000 | 2.75 | 1 | 36 | | Belden | | 2.75 @ 1 |
 | TME | 7929A.0101000 | 4.75 | 5 | 695 | | BELDEN | | 4.75 @ 5 |
 | Markertek | BL-7929A-1000 | 1809.68 | 1 | 36 | | Belden | | 1809.68 @ 1 |
| Graybar | 22065185 | 2101.9712 | 1 | In Stock | | Belden | | 2101.9712 @ 1 |
 | industrialnetworking.com | 7929A 0101000 | 2157.1 | 1 | 2 | | Belden | | 2157.1 @ 1 |
 | Digi-Key | 8120986 | 2171.74 | 1 | In Stock | | Belden Inc. | | 2171.74 @ 1 |
| us.rs-online.com | 70004285 | 2478.54 | 1 | 19 | | Belden | | 2478.54 @ 1 |
 | Newark | 90H0105 | 2534.55 | 1 | In Stock | | BELDEN | | 2534.55 @ 1 |
