8163 060500

mpn8163 060500
brandname: Belden
manufacturername: Belden

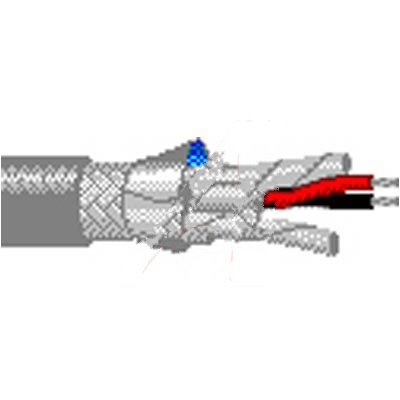

Belden 8163 060500, COMPUTER CABLE, DATALENE INSULATED, 24AWG STRAND (7X32), 3 PAIRS CHROME

Belden 8163 060500, COMPUTER CABLE, DATALENE INSULATED, 24AWG STRAND (7X32), 3 PAIRS CHROME

zoom

PartNumber: 8163 060500
Model: 8163 060500
PackageQuantity: 1
Binding: Unknown Binding
Manufacturer: Belden
Label: Belden

Attributes

Key	Value
Application	For EIA RS-232, EIA RS-.
Cable application	RS232,
Cable external diameter	9.12mm
Cable features	twisted pair conductors
Cable Type	STP
Conductor Material	Tinned Copper (TC)
Configuration	3 Pair
Core diameter	24AWG
Core section	0.22mm
Core structure	stranded
Country of Origin (subj.	Unknown
CPR standard	E
Insulation colour	chrome
Insulation Material	Foam Polyethylene (FPE)
Jacket Color	chrome
Jacket Material	Polyvinyl Chloride (PVC)
Kind of core	Cu,
Length	500 ft
Manufacturer	BELDEN
No. of pairs	3
Number of Conductors	6
Number of cores	6
Operating temperature	-40...60?C
Outer Diameter	0.359 in.
Package contents	152m
Packaging	Coil
Product Header	Individually and Overal.
Rated voltage	300V
Series	Datalene 8163 Series
Shield Material	Aluminum/Polyester Tape.
Shield structure	Al-PET foil,
Shielding	Braid, Foil
Standards	UL AWM Style 2493 ; NEC.
Stranding	7x32
Temperature, Rating	-40 to 60 C
Type of wire	data transmission
Wave impedance	100?
Wire insulation material	PVC
Wire Size	24 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	alldataresource.com	B8163-500	8.05	1	3		Belden		8.05 @ 3
	TME	8163.060500	19.18	2	3		BELDEN		19.18 @ 3
	Digi-Key	BEL5360-500-ND	1563.31	1	3		Belden Inc.		1563.31 @ 3
	us.rs-online.com	70005712	3981.57	1	3		Belden		3981.57 @ 3
	Newark	03F4019	4099.2	1	4000		BELDEN		4099.2 @ 3
	Zoro	G1144228	4279.4	1	3	30	Belden		4279.4 @ 3
