Belden 82842 8771000

B00TGGW30Y

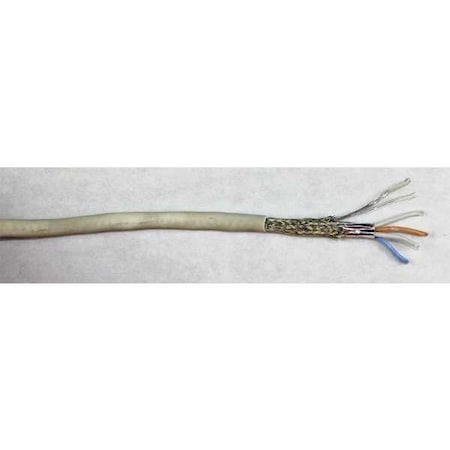

Belden Plenum Low Capacitance Computer and Computer P.O.S. Multi-Conductor Cable

Belden Plenum Low Capacitance Computer and Computer P.O.S. Multi-Conductor Cablezoom

Attributes

Key Value
Application - Communica.Computer Systems
Bend Radius2 3/4 in
Cable applicationindoor,
Cable external diameter5.18mm
Cable Length1,000 ft
Cable Sub-CategoryMulti-Conductor
Conductor MaterialTinned Copper
Conductor Size24 AWG
Conductor Size - Data C.24 AWG
Conform to the normUL 910
Core diameter24AWG
Core markingcolours with colour rep.
Core structurestranded
Country of OriginUS - United States
CPR standardE
Earth corenone
ECCNEAR99
Fire Rating - Data CablePlenum
InformationThe UL Label and Mark o.
Insulation colourgrey
Insulation MaterialFoam FEP, Fluorinated E.
ItemCommunication Cable
Item - Data CableCommunication Cable
Jacket ColorNatural
Jacket MaterialPVC, Low-Smoke PVC
Jacket Material - Wire .PVC
Kind of coreCu,
Length1000 ft.
ManufacturerBELDEN
No. of Conductors4
No. of pairs2
Nominal Outside Dia.0.273 in
Number of Conductors4
Number of cores4
Operating temperature0...75?C
Outside Diameter0.3 in
Package contents305m
Plenum / Riser RatedPlenum Rated
Rated voltage300V
Shield structureAl-PET foil,
ShieldedShielded, Overall Beldf.
Solid / Strandedstranded
Spool Length1,000 ft
Suggested Voltage Ratin.300 V
Temp. Range-4 Degrees to 167 Degr.
Total Number of Conduct.4 (2 Pair)
Type of wiredata transmission
UNSPSC43202222
Wire insulation materialPVC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomturtle.comBDN 82842 87710005.731In StockBelden5.73 @ 1
alldataresource.comB8284287710008.051In StockBelden8.05 @ 1
TME82842.877100027.325In StockBELDEN27.32 @ 5
Digi-KeyBEL5392-1000-ND3414.741In StockBelden Inc.3414.74 @ 1
AmazonTPB00TGGW30Y5096.551In Stock1Belden5096.55 @ 1
thumbzoomZoroG37242757003.991In StockBelden46.07003.99 @ 1
Graybar999147307465.7521In StockBelden7465.752 @ 1
thumbzoomNewark73C83328732.351In StockBELDEN8732.35 @ 1
