Belden 8504 0071000

B005T59Z98

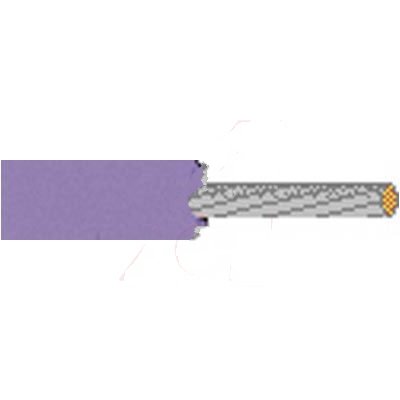

"Belden 8504 0071000 WIRE, HOOK UP, 24AWG, STRANDED, PVC, 600V, MIL-W-16878/1 TYPE B VIOLET"

"Belden 8504 0071000 WIRE, HOOK UP, 24AWG, STRANDED, PVC, 600V, MIL-W-16878/1 TYPE B VIOLET"zoom

Attributes

Key Value
ApplicationFor internal wiring of .
Base Product Number8504
Cable external diameter1.1mm
Cable TypeHook-Up
CategoryCables, Wires
Conductor MaterialTinned Copper (TC), Cop.
Conductor Strand7/32
Conform to the normMIL-W-16878/1 (Type B)
Core diameter24AWG
Core structurestranded
Country of Origin (subj.Unknown
Features-
Insulation Colorviolet
Insulation colourviolet
Insulation MaterialPolyvinyl Chloride (PVC)
Insulation Thickness0.01 in.
Jacket (Insulation) Dia.0.044" (1.12mm)
Jacket (Insulation) Mat.Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.0.010" (0.25mm)
Jacket Colorviolet
Kind of coreCu,
Length1000.0' (304.8m), 1000 .
ManufacturerBELDEN
Maximum Operating Tempe.105 C
MfrBelden Inc.
Number of cores1
Operating ForcePolyvinyl Chloride (PVC)
Operating Temperature-
Operating temperature-40...105?C
Outer Diameter0.044 (1.12) in. (mm)
PackageSpool
Package contents305m
PackagingCoil
Product StatusActive
Rated voltage600V
SeriesMIL-W-16878/1 Type B, 8.
StandardsCE Marked, MIL-W-16878E.
Stranding7x32
Temperature, Rating105 C
Type of wireassembly
Voltage600V
Voltage Rating600 V
Wire Gauge24 AWG
Wire insulation materialPVC
Wire Size24 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTME8504.00710000.634305157BELDEN0.634 @ 305
thumbzoomalldataresource.comB8504-71.46168Belden1.46 @ 1
thumbzoomZoroG2805285315.62115730Belden315.62 @ 1
us.rs-online.com70002989571.421157Belden571.42 @ 1
Digi-Key8122763597.581157Belden Inc.597.58 @ 1
thumbzoomNewark02F4592682.192In StockBELDEN682.19 @ 1
