Belden 9508 0601000

B005T5BJZG

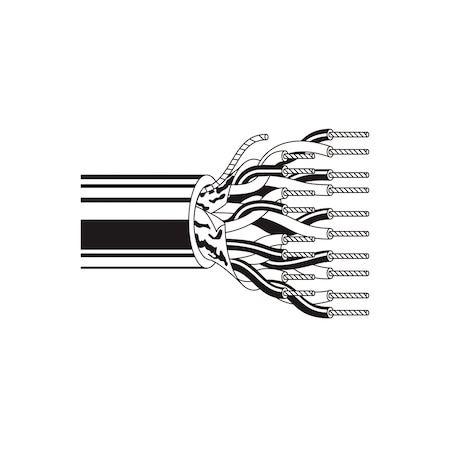

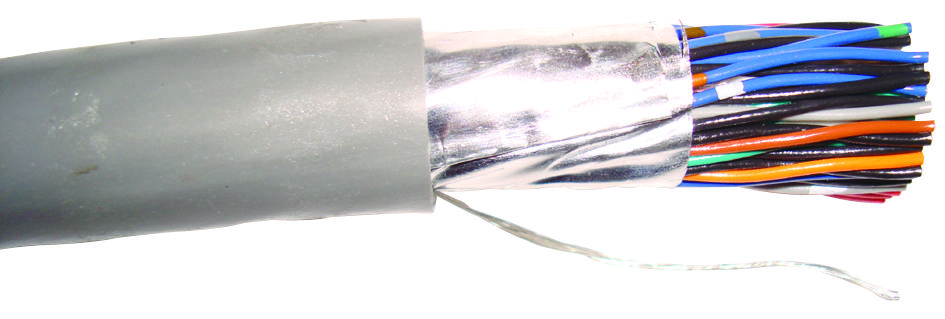

Multipair Shielded Cable, Computer, Chrome, 8 Pair, 24 AWG, 1000 ft, 304.8 m

Multipair Shielded Cable, Computer, Chrome, 8 Pair, 24 AWG, 1000 ft, 304.8 mzoom

Attributes

Key Value
ApplicationFor computer and EIA RS.
Base Product Number9508
Cable TypeSTP, Multi-Pair
CategoryCables, Wires
Conductor InsulationPoly-Vinyl Chloride (PV.
Conductor MaterialTinned Copper (TC), Cop.
Conductor Size24 AWG
Conductor Strand7/32
Configuration8 Pair
Country of Origin (subj.Unknown
DescriptionMULTI-PAIR 16COND 24AWG.
Detailed Description16 (8 Pair Twisted) Con.
Digi-Key Part NumberBEL5759-1000-ND
FeaturesDrain Wire
Insulation MaterialPolyvinyl Chloride (PVC)
Jacket (Insulation) Dia.0.324" (8.23mm)
Jacket (Insulation) Mat.Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.0.0320" (0.813mm)
Jacket ColorChrome
Jacket MaterialPolyvinyl Chloride (PVC)
Length1000.0' (304.8m), 1000 .
ManufacturerBelden Inc.
Manufacturer Product Nu.9508 0601000
Manufacturer Standard L.4 Weeks
MfrBelden Inc.
Nominal Impedance50 Ohms
Number of Conductors16 (8 Pair Twisted), 16
Number of Pairs8
Operating Temperature80 ?C, -30?C ~ 80?C
Outer Diameter0.324 in.
PackageSpool
PackagingCoil
Product HeaderOverall Beldfoil? Shiel.
Product StatusActive
RatingsUL Style 2464
SeriesClassics, 9508 Series
ShieldTinned Copper Overall 1.
Shield Coverage100%
Shield MaterialAluminum/Polyester Tape.
Shield TypeFoil
ShieldingFoil
StandardsUL AWM Style 2464 ; NEC.
Stranding7x32
Temperature, Rating-30 to 80 C
UsageComputer
Voltage300 V
Voltage Rating300 V
Wire Gauge24 AWG
Wire Size24 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomturtle.comBDN 9508 06010003.71126Belden3.71 @ 1
thumbzoomalldataresource.comB95085.471In StockBelden5.47 @ 1
i-components9508 0601000711.618136Belden711.618 @ 1
thumbzoomZoroG11644672568.681In Stock35Belden2568.68 @ 1
thumbzoomDigi-Key81317505052.11In StockBelden Inc.5052.1 @ 1
us.rs-online.com700049215710.481In StockBelden5710.48 @ 1
thumbzoomNewark02F61215879.251In StockBELDEN5879.25 @ 1
