Description:

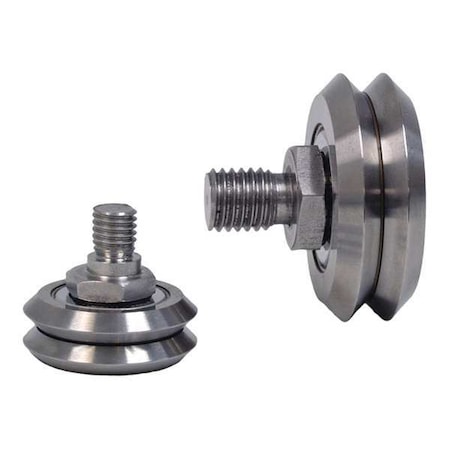

Guide Wheel, Closure Double Sealed, Drive Type External Hex, Duty Type Standard, Face Design Plain, For Environment Clean Room, Extreme High Temperature, Overall Length 1 3/64 in, Roller Diameter 1 13/64 in, Roller Head Type V-Groove, Roller Material Alloy Steel, Roller Width 7/16 in, Rolling Element Rows 2, Seal Type Contact, Stud Material Stainless Steel, Stud Thread Size M10-1.5, Stud Type Concentric, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100
Attributes
| Key ^ | Value |
|---|---|
| Bearing Material Grade | AISI 52100 |
| Bearing Material, Roller Material | Alloy Steel |
| Bearing Type | Double Row Ball |
| Bore Dia. (In.) | 0.3750 |
| Bore Dia. (mm), Stud Dia. (mm) | 9.53 |
| Bore Dia., Stud Dia. | 0.375 in |
| Closure | Double Sealed |
| Drive Location, Roller Style | Stud |
| Drive Type | External Hex |
| Duty Type | Standard |
| Face Design | Plain |
| Features | Custom Greases, Washdown Wheels for Food and Beverage Applications |
| Flange Diameter, Flange Thickness, Hex Drive Size, Lube Port Location | Not Applicable |
| For Environment | Clean Room, Extreme High Temperature |
| Item | Guide Wheel |
| Load Direction | Radial |
| Max. Load Axial (Lb.) | 141 lb |
| Max. Load Radial (Lb.) | 596 lb |
| Maximum Temperature | 500 Degrees F |
| Minimum Temperature | -94 Degrees F |
| Number of Bearings | 1 |
| Overall Length | 1 3/64 in |
| Resistance Properties | Corrosion Resistant |
| Roller Dia. | 1.21 in |
| Roller Dia. (In.) | 1.210 |
| Roller Dia. (mm) | 30.73 |
| Roller Diameter | 1 13/64 in |
| Roller Head Type, Roller Shape | V-Groove |
| Roller Material Grade | 52100 |
| Roller Type | 90 Degrees Dual Vee |
| Roller Width (In.) | 0.438 |
| Roller Width (mm) | 11.13 |
| Roller Width, Stud Length, Stud Thread Length | 7/16 in |
| Rolling Element Rows, Size | 2 |
| Seal Type | Contact |
| Static Axial Load Capacity | 141 lbf |
| Static Radial Load Capacity | 596 lbf |
| Stud Dia. (In.) | 0.375 |
| Stud Diameter | 3/8 in |
| Stud Length (In.) | 0.448 |
| Stud Length (mm) | 11.38 |
| Stud Material | Stainless Steel |
| Stud Material Grade | 303 |
| Stud Thread Size | M10-1.5 |
| Stud Type | Concentric |
| System of Measurement | Inch |
| Thread Length (In.) | 0.448 in |
| Thread Length (mm) | 11.38 mm |
| Thread Size | M10x1.5 |
| Type | Stud, Concentric |
| V-Groove Angle | 90 Degrees |
