Black Box C6PC28-GN-01

mpnC6PC28-GN-01
brandname: BLACK BOX
manufacturername: BLACK BOX

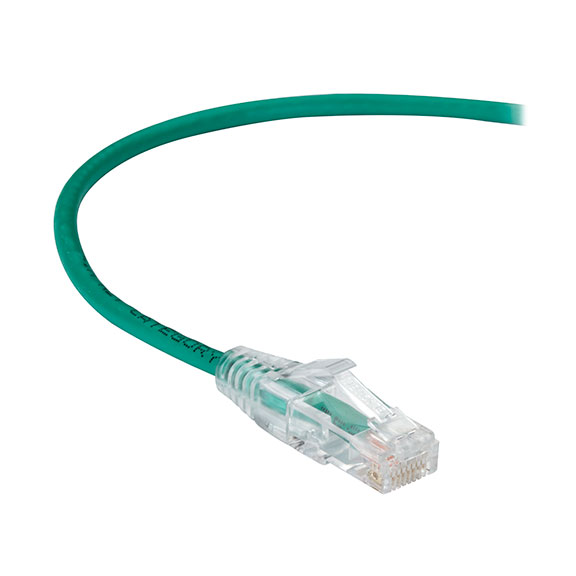

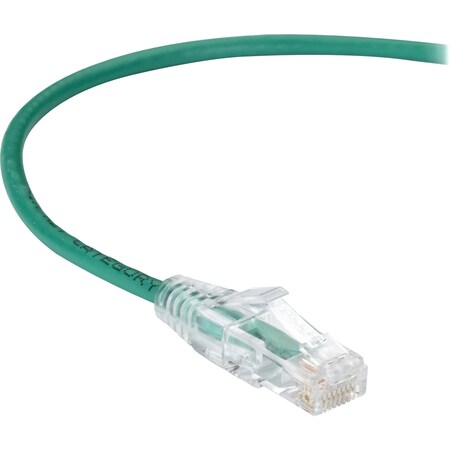

Black Box C6PC28-GN-01, Slim-Net 28 AWG Patch Cable, Pack of 50 pcs

Black Box C6PC28-GN-01, Slim-Net 28 AWG Patch Cable, Pack of 50 pcs

zoom

Brand: Black Box
PartNumber: C6PC28-GN-01
Color: Black,Green
PackageQuantity: 50
Manufacturer: Black Box
Label: Black Box

Attributes

Key	Value
ACR	100 MHz: 24.4 dB/100 m;.
ACRF	100 MHz: 27.8 dB/100 m;.
American Wire Gauge	28 AWG
Approvals	UL?E196163
Brand Name	Black Box
Cable Characteristic	Patch Cable
Cable Length	1 ft
Cable Type	Category 6
Color	Green
Conductor Gauge	28 AWG, stranded bare c.
Connector on First End	1 x RJ-45 Male Network
Connector on Second End	1 x RJ-45 Male Network
Contact Plating	Gold
Country of Origin	China
Data Transfer Rate	10 Gbit/s
Delay Skew	1-10 MHz: 40 +/- 10 nS/.
Device Supported	Patch Panel, Wallplate,.
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Features	Stranded, Snagless, Boo.
Frequency	250 MHz
Impedance	100 ? 15 ohms
Insertion Loss (Maximum)	100 MHz: 19.8 dB/100 m;.
Insulation	HDPE
Jacket	PVC, CM
Jacket Type	CM
Limited Warranty	Lifetime
Manufacturer	Black Box, Black Box Co.
Manufacturer Part Number	C6PC28-GN-01
Manufacturer Website Ad.	http://www.blackbox.com
Material	Polyvinyl Chloride (PVC.
NEXT	100 MHz: 44.3 dB/100 m;.
Outer Diameter	0.161"" (4.1 mm)
Package Quantity	1
Pair-to-Ground Capacita.	330 pF/100 m max.
Product Condition	New
Product Line	Slim-Net
Product Name	Slim-Net Cat.6 UTP Patc.
Product Type	Network Cable
Propagation Delay	250 MHz: 535.5 ns/100 m.
PS-ACR	100 MHz: 22.4 dB/100 m;.
PS-ACRF	100 MHz: 24.8 dB/100 m;.
PS-NEXT	100 MHz: 42.3 dB/100 m;.
Resistance	22.3 ohms/100 m
Return Loss	100 MHz: 19.0 dB/100 m;.
Shielding	No
