Black Box C6PC28-GN-02

B07N2YDN79

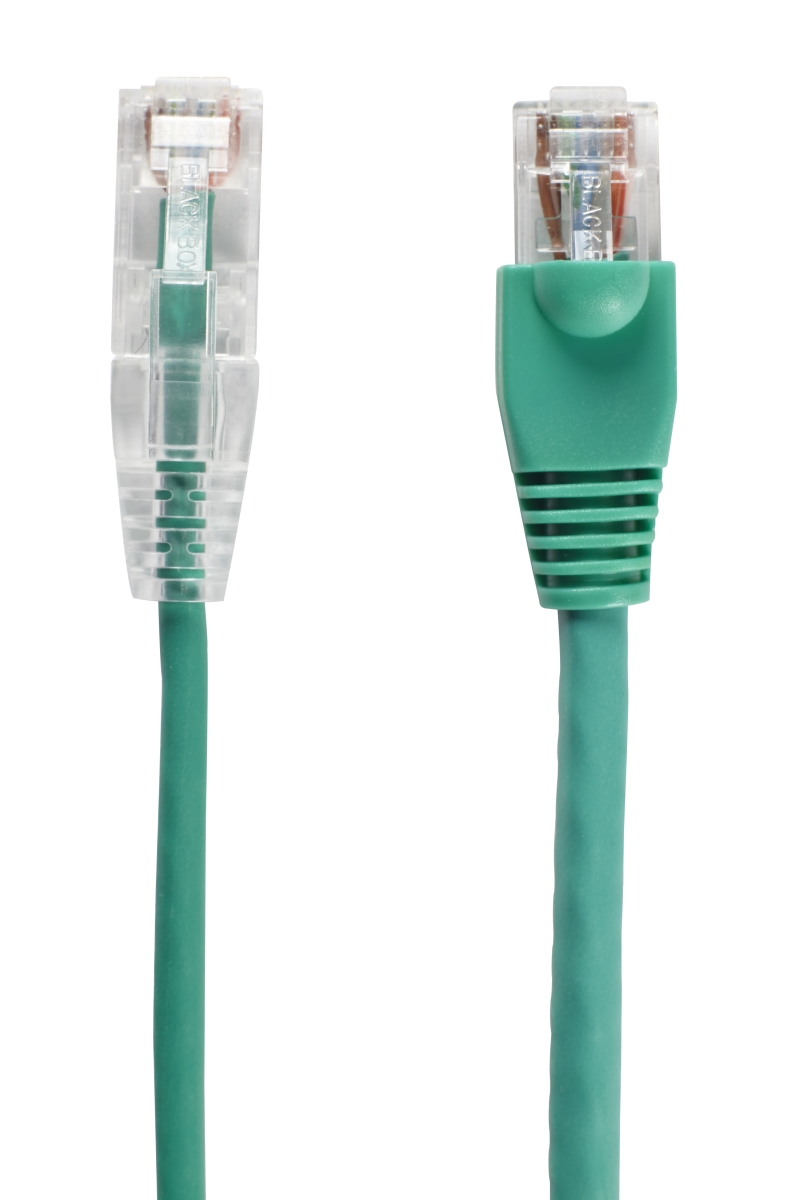

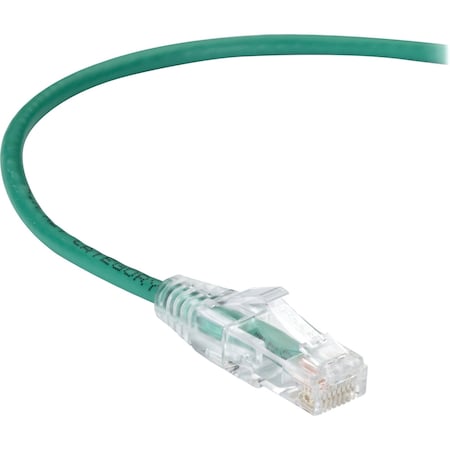

Black Box C6PC28-GN-02, Slim-Net 28 AWG Patch Cable, Pack of 50 pcs

Black Box C6PC28-GN-02, Slim-Net 28 AWG Patch Cable, Pack of 50 pcszoom

Attributes

Key Value
ACR100 MHz: 24.4 dB/100 m;.
ACRF100 MHz: 27.8 dB/100 m;.
American Wire Gauge28 AWG
ApprovalsUL?E196163
Brand NameBlack Box
Cable CharacteristicPatch Cable
Cable Length2 ft
Cable TypeCategory 6
ColorGreen
Conductor Gauge28 AWG, stranded bare c.
Connector on First End1 x RJ-45 Male Network
Connector on Second End1 x RJ-45 Male Network
Contact PlatingGold
Country of OriginChina
Data Transfer Rate10 Gbit/s
Delay Skew1-10 MHz: 40 +/- 10 nS/.
Device SupportedPatch Panel, Wallplate,.
Environmental Certifica.RoHS
Environmentally FriendlyYes
FeaturesStranded, Snagless, Boo.
Frequency250 MHz
Impedance100 ? 15 ohms
Insertion Loss (Maximum)100 MHz: 19.8 dB/100 m;.
InsulationHDPE
JacketPVC, CM
Jacket TypeCM
Limited WarrantyLifetime
ManufacturerBlack Box Corporation
Manufacturer Part NumberC6PC28-GN-02
Manufacturer Website Ad.http://www.blackbox.com
MaterialPolyvinyl Chloride (PVC.
NEXT100 MHz: 44.3 dB/100 m;.
Outer Diameter0.161"" (4.1 mm)
Package Quantity1
Pair-to-Ground Capacita.330 pF/100 m max.
Product LineSlim-Net
Product NameSlim-Net Cat.6 UTP Patc.
Product TypeNetwork Cable
Propagation Delay250 MHz: 535.5 ns/100 m.
PS-ACR100 MHz: 22.4 dB/100 m;.
PS-ACRF100 MHz: 24.8 dB/100 m;.
PS-NEXT100 MHz: 42.3 dB/100 m;.
Resistance22.3 ohms/100 m
Return Loss100 MHz: 19.0 dB/100 m;.
ShieldingNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomunbeatablesale.comSYBA1436433.15131BLACK BOX3.15 @ 1
CDW54753234.591681Black Box4.59 @ 1
thumbzoomdirectdeals.comC6PC28-GN-024.591In StockBlack Box4.59 @ 1
Newark83Y90645.971In StockBLACK BOX5.97 @ 1
thumbzoomipcstore.com14_C6PC28-GN-02_16.01In StockBlack Box6.0 @ 1
thumbzoomMegadepotC6PC28-GN-026.681In StockBlackBox6.68 @ 1
thumbzoomusmegastore.comC6PC28-GN-026.681In StockBlackBox6.68 @ 1
thumbzoomZoroG95125299.581In StockBlack Box9.58 @ 1
thumbzoomPCNation8RH41310.28131BLACK BOX CORPORATION1.010.28 @ 1
spaceboundsolutions.comSBS-52610911.651In StockBlack Box Innovations11.65 @ 1
barcodegiant.comBLA62903913.181In StockBlack Box13.18 @ 1
