Attributes
| Key ^ | Value |
|---|---|
| ACR | 13.3 dB/100 m at 100 MHz |
| ACRF | 23.8 dB/100 m at 100 MHz |
| American Wire Gauge | 26 AWG |
| Attenuation | 33.0 dB/100 m at 100 MHz |
| Brand, Brand Name | Black Box |
| Cable Characteristic | Patch Cable |
| Cable Length | 3 ft |
| Cable Outside Diameter (Nominal) | 0.22" (0.56 cm) |
| Cable Type | Category 5e, Ethernet |
| Capacitance Unbalance (Pair to Ground) | 330 pF/100 m maximum |
| Color | Black |
| Conductor | 26 AWG, stranded, bare copper |
| Connector on First End, Connector on Second End | 1 x RJ-45 Male Network |
| Connector Type | RJ45 |
| Contact Plating | Gold |
| Country of Origin | China |
| Data Transfer Rate | 1 Gbit/s |
| Date First Available | July 11, 2017 |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly, RoHS, Shielding | Yes |
| Features | EMI/RF Protection, Stranded, Molded, Non-snagless, Booted, Strain Relief, Near End Cross Talk (NEXT) |
| Gauge | 26.0 |
| Height | 1.00 |
| Impedance | 100 +/- 15 ohms at 100 MHz |
| Insulation | HDPE, 0.008" (0.22 mm) |
| Is Discontinued By Manufacturer | No |
| Item model number, Manufacturer Part Number | EVNSL0172BK-0003 |
| Jacket | PVC (CM) |
| Jacket Type | CM |
| Length, Width | 2.00 |
| Limited Warranty | Lifetime |
| Manufacturer | Black Box Corporation |
| Manufacturer Website Address | http://www.blackbox.com |
| Material | Polyvinyl Chloride (PVC) - Jacket, Aluminum Mylar - Shielding |
| NEXT | 35.0 dB/100 m at 100 MHz |
| Package Dimensions | 2 x 2 x 1 inches |
| Product Dimensions | 6 x 6 x 0.5 inches |
| Product Line | SlimLine |

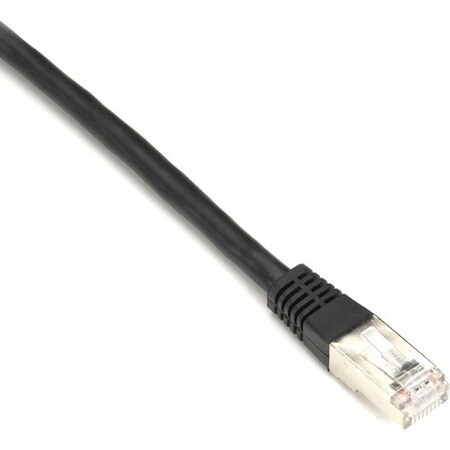

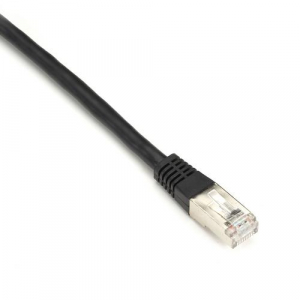

| Product Name | SlimLine Cat.5e (F/UTP) Patch Network Cable |
| Product Type | Network Cable |
| Product with faster shipping, Product with good Gross Margin | true |
| PS-NEXT | 32.0 dB/100 m at 100 MHz |
| Return Loss | 20.1 dB/100 m at 100 MHz |
| Shipping | undefined (Fixed Shipping Cost), Calculated at Checkout |
| Standards | UL ?? E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT5e |
| Temperature/Voltage Rating | 167deg F (75deg C) at 300 V |
| Weight | 0.10 |
