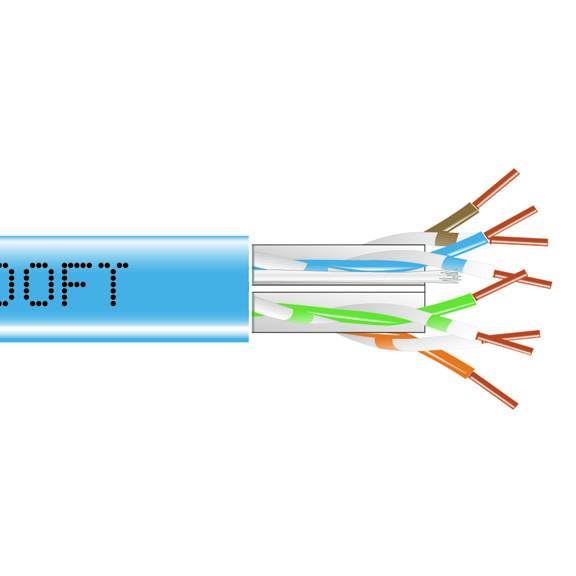

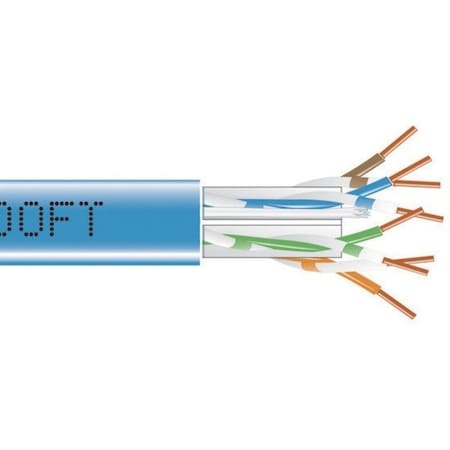

Black Box EYN871B-PB-1000, GigaTrue CAT6 Cable

mpn:
EYN871B-PB-1000
brand:
BLACK BOX
manufacturer:
BLACK BOX
MPN:
EYN871B-PB-1000
Weight:
1.875
Weight:
1.875 LB
Preferred Price:
537.49
Price:
537.49
Min Simple Price:
303.67
Absolute Min Price:
431.21
Min Price:
431.21
Dimensions:
[12000.0, 19.0, 13.0]
qty:
21
simpleSku:
Nzk0OQ:::EYN871B-PB-1000
sku:
Nzk0OQ::W6:EYN871B-PB-1000@y0
condition:
11
seller:
PCNation
amzMan:
black box
HazMat:
False
DropShip:
True

Attributes

Key ^Value
ACR (Minimum)26.5 dB at 100 MHz; 2.8 dB at 300 MHz; NA @ 550 MHz
ACRF (Minimum)27.8 dB at 100 MHz; 18.3 dB at 300 MHz; 13 dB at 550 MHz
American Wire Gauge23 AWG
Best Sellers RankCat 6 Ethernet Cables
Brand, Brand Name, ManufacturerBlack Box
Cable Length1000 ft
Cable TypeEthernet, Category 6
Capacitance Unbalance (Pair-to-Ground) (Maximum)330 pF/100 m
Characteristic Impedance1-550 MHz; 100 ? ohms
ColorBlue
Compatible DevicesPersonal Computer
Conductor23 AWG, solid, bare copper, Bare Copper
Connector on First End, Connector on Second EndBare Wire
Country of OriginTaiwan
Cross-MemberPlenum-rated polymer
Data Transfer Rate1 Gbit/s
Date First AvailableJanuary 24, 2019
Delay Skew (Maximum)30 ns/100 m
Device SupportedNetwork Device
FeaturesFlame Retardant
Height16.30
Insertion Loss (Maximum)19.8 dB/100 m at 100 MHz; 36.4 dB/100 m at 300 MHz; 51.8 dB/100 at 550 MHz
InsulationFEP
Is Discontinued By Manufacturer, ShieldingNo
Item Dimensions LxWxH16.8 x 9.6 x 16.3 inches
Item model number, Manufacturer Part NumberEYN871B-PB-1000
JacketFlame-retardant, low-smoke, PVC; CMP
Jacket TypeCMP, Plenum
Length16.80
Limited WarrantyLifetime
ManufacturerBlack Box Corporation
Manufacturer Website Addresshttp://www.blackbox.com
MaterialPolyvinyl Chloride (PVC) - Jacket, Fluorinated Ethylene Propylene (FEP) - Insulation
Mutual Capacitance (Maximum)56 pF/M
NEXT (Minimum)46.3 dB at 100 MHz; 39.2 dB at 100 MHz; 35.2 dB at 550 MHz
Package Quantity1
Package TypeBulk
Product ConditionNew
Product Dimensions19.5 x 19 x 12.25 inches; 32.6 Pounds
Product LineGigaTrue
Product NameCAT6 550-MHz Solid Bulk Cable UTP CMP Plenum Blue 1000FT Pull-Box
Product TypeNetwork Cable
Product with faster shippingtrue
Propagation Delay (Maximum)536 nS/100 m at 550 MHz
PS-ACR (Minimum)24.5 dB at 100 MHz; 0.8 dB at 300 MHz; NA at 550 MHz
PS-ACRF (Minimum)24.8 dB at 100 MHz; 15.3 dB at 300 MHz; 10 dB at 550 MHz
PS-NEXT (Minimum)44.3 dB at 100 MHz; 37.2 dB at 300 MHz; 37.2 dB at 550 MHz
Return Loss (Minimum)20.1 dB at 100 MHz; 16.8 dB at 300 MHz; 14.9 dB at 550 MHz
RoHS, TAA CompliantYes
Shippingundefined (Fixed Shipping Cost), Calculated at Checkout
Specification metIso, Iec, Ul, Eia, Ansi, Tia
StandardsANSI/TIA/EIA-568-C.2; ISO/IEC 11801 Class E; UL 444; ETL Verified
Weight29.00
Width9.60

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomPCNation9L6975303.67182323.46811000BLACK BOX CORPORATION30.0303.67 @ Qty: 1000+
thumbzoomunbeatablesale.comSYBA14844351.28210908.51211000BLACK BOX351.28 @ Qty: 1000+
barcodegiant.comBLA620207394.72236989.88811000Black Box394.72 @ Qty: 1000+
thumbzoomipcstore.com14_EYN871B-PB-1000_1440.0264176.011000Black Box440.0 @ Qty: 1000+
thumbzoomusmegastore.comEYN871B-PB-1000442.3265556.9211000BlackBox442.3 @ Qty: 1000+
thumbzoomhomeessentialsdirect.comEYN871B-PB-1000470.55282518.2211000BLACK BOX470.55 @ Qty: 1000+
thumbzoombhphotovideo.comBL871BPB1000474.32284781.72811000Black Box474.32 @ Qty: 1000+
thumbzoomZoroG0416852484.99291187.99611000Black Box484.99 @ Qty: 1000+
thumbzoomMegadepotEYN871B-PB-1000486.1291854.4411000BlackBox486.1 @ Qty: 1000+
CDW2908205514.99309199.99611000Black Box514.99 @ Qty: 1000+
Newark06W8835559.99336217.99611000BLACK BOX559.99 @ Qty: 1000+
thumbzoomdirectdeals.comEYN871B-PB-1000559.99336217.99611000Black Box559.99 @ Qty: 1000+
