mpn:
brand:
manufacturer:
MPN:
Weight:
1.25
Weight:
1.25 LB
Preferred Price:
392.9
Price:
392.9
Min Simple Price:
110.99
Absolute Min Price:
315.2
Min Price:
315.2
Dimensions:
[12000.0, 12000.0, 12000.0]
qty:
1
simpleSku:
Nzk0OQ:::EYN853A-PB-1000
sku:
Nzk0OQ::CQ:EYN853A-PB-1000@x2
condition:
11
seller:
PCNation
amzMan:
black box
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| ACR (Minimum at 100 m) | 16.3 dB at 100 MHz; 1.4 dB at 200 MHz |
| American Wire Gauge | 24 AWG |
| Attenuation (Minimum at 100 m) | 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz |
| Best Sellers Rank | #3,113 in Cat 5e Ethernet Cables |
| Brand, Brand Name | Black Box |
| Cable Length | 1000 ft |

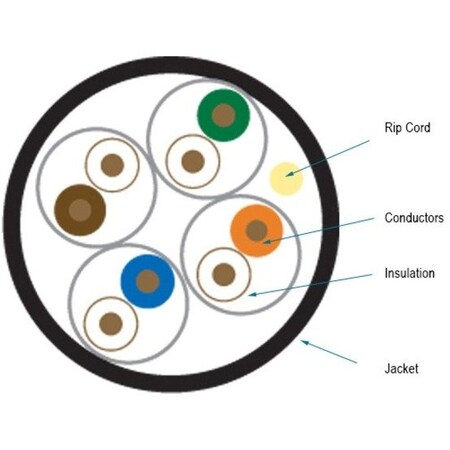

| Cable Type | Category 5e, 4-pair UTP, Ethernet |
| Capacitance Unbalance (Maximum) | 3300 pF/km (Pair to ground) |
| Characteristic Impedance | 1?350 MHz: 100 ? 15 ohms |
| Color | White |
| Compatible Devices | Personal Computer |
| Conductor | Copper, 24 AWG, solid, bare copper |
| Conductor Resistance | 93.8 ohm/20? C maximum |
| Connector on First End, Connector on Second End | Bare Wire |
| Country of Origin | South Korea |
| Data Transfer Rate | 100 Mbit/s, 0.1 Gigabits Per Second |
| Date First Available | August 28, 2013 |
| Delay Skew (Maximum) | 1?350 MHz: 40 nS/100 m |
| Device Supported | Patch Panel, Network Device |
| EL-FEXT (Minimum at 100 m) | 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz |
| Features | Near End Cross Talk (NEXT) |
| Height | 15.00 |
| Is Discontinued By Manufacturer, Shielding | No |
| Item Dimensions LxWxH, Product Dimensions | 14.5 x 9.3 x 15 inches |
| Item model number, Manufacturer Part Number | EYN853A-PB-1000 |
| Jacket Type | CMR |
| Length | 14.50 |
| Limited Warranty | Lifetime |
| Manufacturer | Black Box Corporation, BLACKBOX NETWORK SERVICE |
| Manufacturer Website Address | http://www.blackbox.com |
| Material | Polyvinyl Chloride (PVC) - Jacket |
| NEXT (Minimum at 100 m) | 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz |
| Package Quantity | 1 |
| Package Type | Bulk |
| Packing | Spool |
| Product Line | GigaBase |

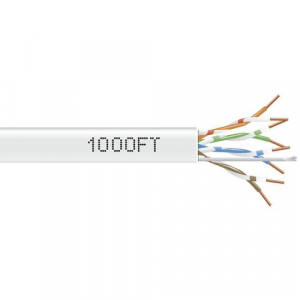

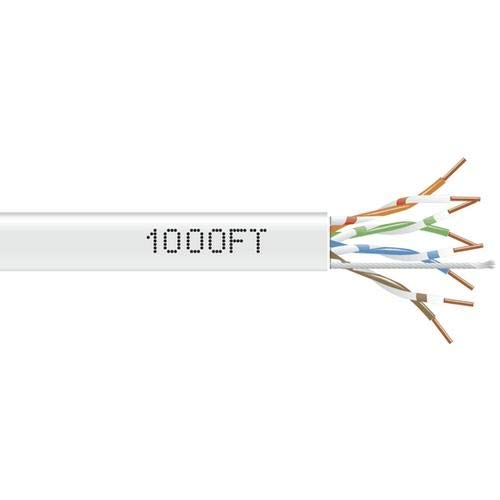

| Product Name | CAT5e 350-MHz Solid Bulk Cable UTP CMR PVC WH 1000FT Pull-Box |
| Product Type | Network Cable |
| Product with faster shipping | true |
| PS-ACR | 14.3 dB at 100 MHz |
| PS-ELFEXT | 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz |
| PS-NEXT | 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz |
| Return Loss | 20.1 dB at 100 MHz |
| Shipping | undefined (Fixed Shipping Cost), Calculated at Checkout |
| TAA Compliant | Yes |
| Velocity of Propagation | 62.1% at 350 MHz |
| Weight | 19.35 |
| Width | 9.30 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | PCNation | 3U8154 | 110.99 | 177.584 | 1 | 2 | BLACK BOX CORPORATION | 20.0 | 110.99 @ Qty: 2+ | |
 | homeessentialsdirect.com | EYN853A-PB-1000 | 121.05 | 193.68 | 1 | 2 | BLACKBOX NETWORK SERVICE | 121.05 @ Qty: 2+ | ||
 | bhphotovideo.com | BL853APB1000 | 128.744 | 205.9904 | 1 | 2 | Black Box | 128.744 @ Qty: 2+ | ||
 | unbeatablesale.com | SYBA14685 | 138.4 | 221.44 | 1 | 2 | BLACK BOX | 138.4 @ Qty: 2+ | ||
| AmazonTP | B005VQW56U | 144.38 | 231.008 | 1 | 2 | 30 | Black Box Network | 144.38 @ Qty: 2+ | ||
 | usmegastore.com | EYN853A-PB-1000 | 152.8 | 244.48 | 1 | 2 | BlackBox | 152.8 @ Qty: 2+ | ||
 | Zoro | G0336118 | 152.99 | 244.784 | 1 | 2 | Black Box | 152.99 @ Qty: 2+ | ||
| Newark | 16M8572 | 221.39 | 354.224 | 1 | 2 | BLACK BOX | 221.39 @ Qty: 2+ |
