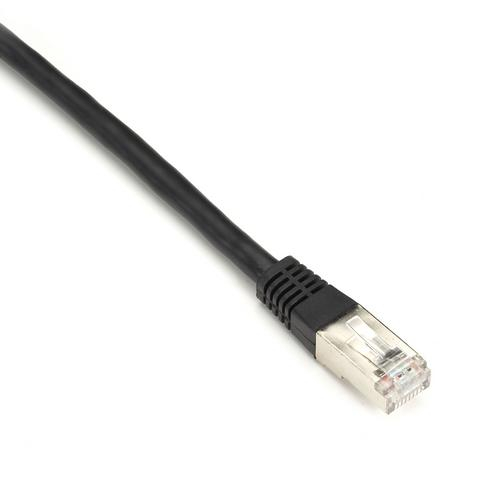

BlackBox Ethernet Patch Cable EVNSL0172BK-0001. ?BlackBox authorized distributor ?. ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Attributes
| Key ^ | Value |
|---|---|
| ACR | 13.3 dB/100 m at 100 MHz |
| ACRF | 23.8 dB/100 m at 100 MHz |
| Attenuation | 33.0 dB/100 m at 100 MHz |
| Cable Outside Diameter (Nominal) | 0.22" (0.56 cm) |
| Capacitance Unbalance (Pair to Ground) | 330 pF/100 m maximum |
| Conductor | 26 AWG, stranded, bare copper |
| Impedance | 100 +/- 15 ohms at 100 MHz |
| Insulation | HDPE, 0.008" (0.22 mm) |
| Jacket | PVC (CM) |
| NEXT | 35.0 dB/100 m at 100 MHz |
| PS-NEXT | 32.0 dB/100 m at 100 MHz |
| Return Loss | 20.1 dB/100 m at 100 MHz |
| RoHS | Yes |
| Standards | UL ?? E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT5e |
| Temperature/Voltage Rating | 167deg F (75deg C) at 300 V |
