brand:
manufacturer:
Description:

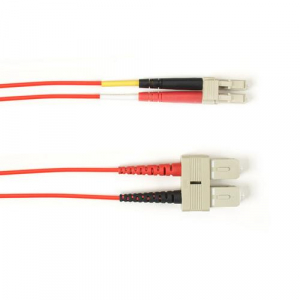

<p><strong>BlackBox, FOLZH10-005M-SCLC-RD, Multimode Fiber Optic Patch Cable, 50um, OM3, LSZH, SCLC, Red, 5m </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Color code fiber networks for different applications, departments, and security levels. </li> <li>Take your network to 10-GbE. </li> <li>Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion. </li> <li>Well suited for using in aircraft, ships, and construction areas. </li> <li>Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs). </li> <li>Full compatibility with a broad range of laser-based and legacy protocols and applications. </li> </ul>
Attributes
| Key | Value |
|---|---|
| Attenuation | =2.3 dB/km at 850 nm; =0.6 dB/km at 1300 nm |
| Bandwidth | Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm |
| Data Rate (Optimized) | 10 Gbps over 300 m at 1300 nm |
| Diameter | Core: OM3 laser-optimized 50-?m; Cladding: 125-?m |
| Jacket | Low Smoke Zero Halogen (LSZH) |
| Listings | ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC |
| Temperature | Operating Temperature: -76 to 185 F (-60 to 85? C) |
