mpn:
brand:
manufacturer:
MPN:
Description:

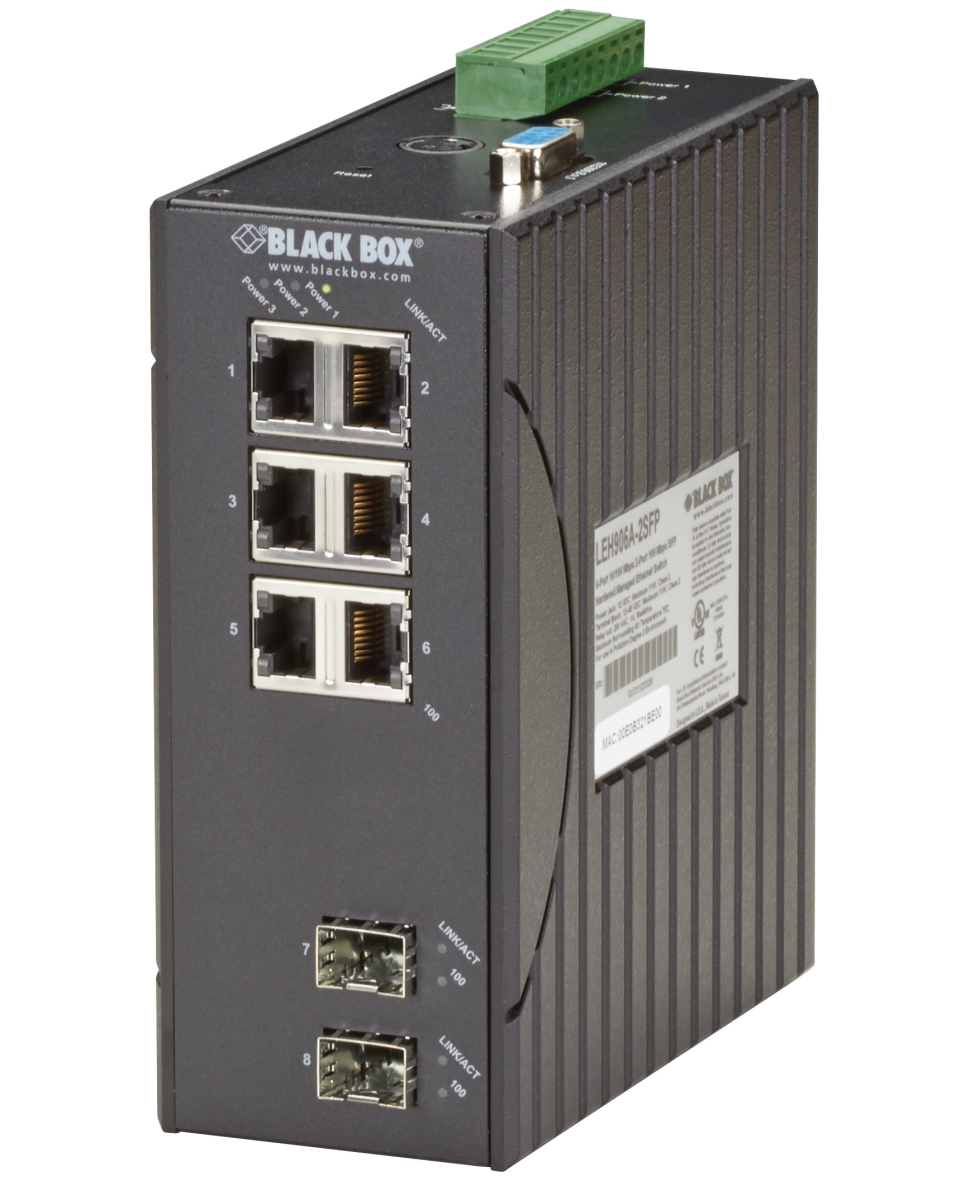

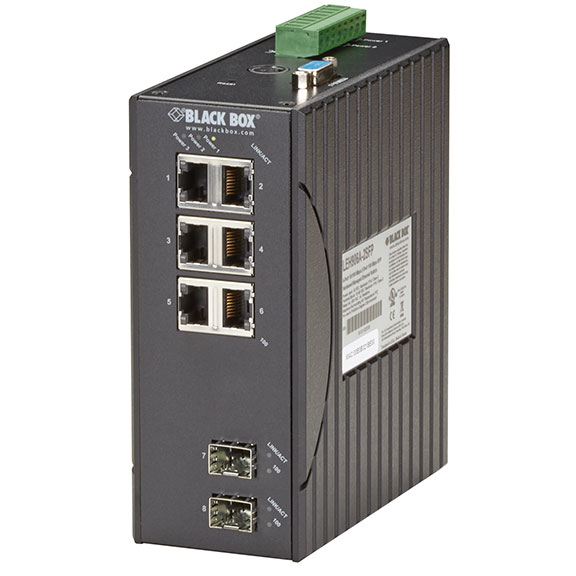

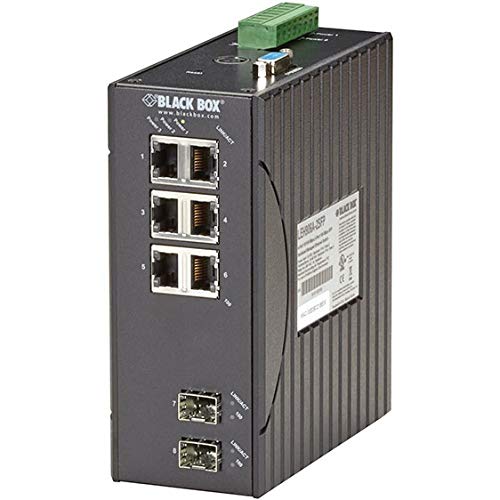

BlackBox Managed Ethernet Switch LEH906A-2SFP. ?BlackBox authorized distributor ?. ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Weight:
0.565
Weight:
2.43 LB
Preferred Price:
984.12
Price:
984.12
Min Simple Price:
556.0
Absolute Min Price:
789.52
Min Price:
789.52
Dimensions:
[6.0, 5.0, 3.0]
qty:
21
simpleSku:
MTM2OQ:::LEH906A-2SFP
sku:
MTM2OQ::64:LEH906A-2SFP@y0
condition:
11
seller:
usmegastore.com
amzMan:
blackbox network service
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| A02038 | IGMPv3, IGMPv2, IGMP |
| A04960 | Network hubs and switches |
| A05523 | Yes |
| A05611 | DIN rail mountable |
| A05612 | Fast Ethernet |
| Address Table Size | 8192 MAC addresses |
| Alarm Contact | (1) Relay output with current 1A @ 24 VDC |
| Brand | Black Box |
| Console Port | (1) DB9 RS-232 |
| Depth | 12.5 |
| Device Type | Switch |
| Dimensions | 5.71"H x 2.36"W x 4.92"D (14.5 x 6 x 12.5 cm) |
| Distance | 2 km |
| EMI | FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3; |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (radiated RFI), EN61000-4-4 (burst), EN61000-4-5 (surge), EN61000-4-6 (induced RFI), EN61000-4-8 (magnetic field), EN61000-6-2 |
| Enclosure | IP30 aluminum |
| Environmental Requirements | Railway: EN50121-4, Traffic control: NEMA TS1/2 |
| Environmental Test | IEC60068-2-6 Fc (vibration), IEC60068-2-27 Ea (shock), Federal Standard 101C Method 5007.1 (free fall) |
| Forwarding and Filtering Rate | 14,880 pps for 10 Mbps, 148,810 pps for 100 Mbps, 1,488,810 pps for 1000 Mbps |
| Height | 14.5 |
| Humidity | 5 to 95%, noncondensing |
| Management | RS-232 console (DB9), Telnet, SNMP V1, V2, and V3, RMON, Web browser, and TFTP management |
| Operating Temperature | -40 to +167? F (-40 to +75? C); Storage: -40 to +185? F (-40 to +85? C) |
| Packaged Quantity | 1 |
| Packet Buffer Memory | 2 Mbits |
| Ports Qty, Width | 6 |
| Processing Type | Store-and-Forward; Half-duplex back-pressure; IEEE 802.3x full-duplex flow control |
| Product Line | Black Box Hardened Managed Ethernet Switch |
| Remote Management Protocol | HTTP, CLI, Telnet, RMON, TFTP, SNMP 2, SNMP 3, SNMP 1 |
| Safety | UL 508 |
| Security | IEEE 802.1x |
| Service Type | 5-year warranty |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, 100BASE-FX, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1W, IEEE 802.1x |
| Weight | 2.42 lb. (1.1 kg), 1.1 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | usmegastore.com | LEH906A-2SFP | 556.0 | 2224.0 | 1 | 6 | BlackBox | 2.42 | 556.0 @ Qty: 6+ | |
 | unbeatablesale.com | SYBA13536 | 623.96 | 2495.84 | 1 | 6 | BLACK BOX | 623.96 @ Qty: 6+ | ||
 | Grand and Toy | LEH906A-2SFP | 766.39 | 3065.56 | 1 | 6 | Black Box Hardened Managed Ethernet | 766.39 @ Qty: 6+ |
