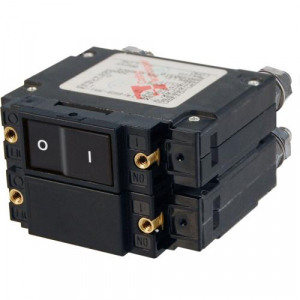

Blue Sea Systems 7563-BSS
Blue Sea Systemszoom
manufacturer:
Description:
<p><strong>Blue Sea Systems, 7563-BSS, C-Series Flat Rocker Circuit Breaker Double Pole 80A AC </strong> </p> <p><strong>Features: </strong> </p> <ul><li>5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 30 Ampere main protection </li> <li>Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral </li> <li>Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral </li> <li>Circuit breakers will trip all poles if any one pole trips </li> <li>"Trip Free" design cannot be held "ON" during fault current condition </li> </ul>

Attributes

Key ^Value
Actuator StyleFlat Rocker
Amperage80A AC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Interrupt Capacity5000A at 48V DC
Maximum Operating Temperature85? C
Maximum Voltage120V AC; 240V AC
Minimum Operating Temperature-40? C
Mounting Screw6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Poles2
Switching Cycles10000
Terminal Stud1/4-20 Tin-Plated Brass
Terminal Stud Torque35 in-lb (3.95 Nm)
Weight0.64lb (0.29 kg)
