Boston Gear / Altra Industrial Motion F732-60E-B5-G

B01L0AL2LO

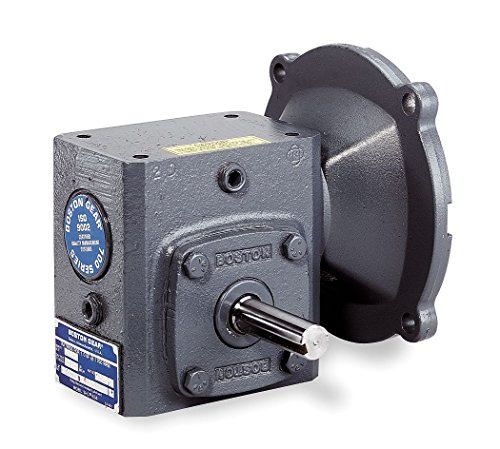

Speed Reducer, C-Face, 56C, 60:1

Speed Reducer, C-Face, 56C, 60:1zoom

Attributes

Key Value
BearingsTapered Roller
Bore Dia.5/8 in
Bore/Shaft Diameter1.375"
Center Distance3.2"
Dimension U1 3/8 in
DutyStandard
Housing MaterialCast Iron
Input Flange56C
Input RPM1,750 RPM
Input Shaft Diameter5/8 in
Input Size56C
Input StyleQuill
Input TypeFlange
ItemSpeed Reducer
LubricationKlubersynth UH1 6-460
Max. Output Torque1,004 in-lb
MountingAny Position
Nominal Output RPM29 RPM
Nominal Ratio60:1
OutputLeft
Output Shaft Dia.1 3/8 in
Output Shaft Diameter1 3/8 in
Output Shaft Height3 1/2 in
Output TypeSolid Output Shaft
Overhung Load1,300 lb
Paint/CoatingGray
Pinion MaterialHardened Steel
Reducer Model No.F732-60-B5-G
ReductionSingle
Shaft ProjectionLeft Side
Single/Double Output/Un.Single Output
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA
Worm Gear MaterialBronze

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG11179861813.991In StockBoston Gear73.251813.99 @ 1
thumbzoomMRO Supply427811966.691In StockBoston Gear1966.69 @ 1
thumbzoomsustainablesupply.comC16605943866.661In StockBoston Gear73.253866.66 @ 1
thumbzoomRaptor SuppliesAB2CJM4050.5054851In StockBOSTON GEAR4050.505485 @ 1
