Bourns 3852A-162-503AL

B005TB8D1I

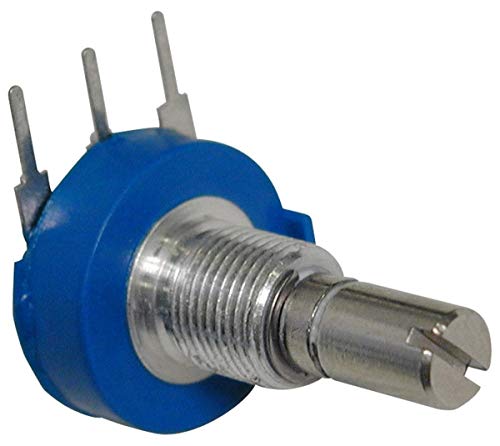

BOURNS - 3852A-162-503AL - POTENTIOMETER CERMET, 50KOHM 10% 2W

BOURNS - 3852A-162-503AL - POTENTIOMETER CERMET, 50KOHM 10% 2Wzoom

Attributes

Key Value
Actuator Diameter0.250" (6.35mm)
Actuator Length0.500" (12.70mm)
Actuator TypeSlotted
Adjustment TypeUser Defined
Base Product Number3852A
Built in SwitchNone
Bushing Thread3/8-32
CategoryPotentiometers, Variabl.
Dielectric Strength900 VAC
Dimensions0.75 Dia. x 0.25 L in
Element MaterialCermet
Features-
Insulation Resistance1000 MegaOhms
Linearity10 %
Maximum Operating Tempe.+125 ?C
Mechanical Angle280 ?
MfrBourns Inc.
Minimum Operating Tempe.-1 ?C
Mounting TypePanel Mount, Bushing Mo.
Number of Gangs1
Number of Turns1, 1 Turn
PackageTray
Power (Watts)2W
Power Rating2 W
Primary TypePotentiometers
Product StatusActive
Resistance50 Kiloohms
Resistance (Ohms)50k
Resistive MaterialCermet
Rotation280?
Rotational Life20000 Cycles
Series3852 Series, 3852
Shaft Diameter0.25 In.
Size - BodyRound - 0.750" Dia (19..
TaperLinear
Temperature Coefficient?150ppm/?C, ?150 ppm/?C
TerminationLugs
Termination StyleSolder Lug
Tolerance0.1 %, ?10%
Torque0.35 to 4.23 N/cm
TypeRotary

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com3852A-162-503AL6.61237BOURNS6.6 @ 1
thumbzoomNewark14P80417.23270In StockBOURNS7.23 @ 250
Digi-Key25344827.96041270In StockBourns Inc.7.96041 @ 270
HotendaH295545811.091In StockBourns, Inc.11.09 @ 1
us.rs-online.com7015376412.19270In StockBourns12.19 @ 270
thumbzoomComponent Electronics360F-50K-41915.38141Bourns Inc15.38 @ 1
