Description:

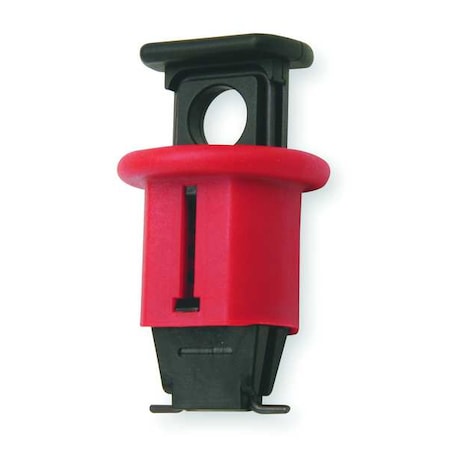

DIN Style Miniature Breaker Lockout, Circuit Breaker Lockout Type Pin-Out, For Circuit Breaker Type Mini, For Maximum Padlock Shackle Diameter 9/32 in, For Voltage 120/277V AC, Maximum Number of Padlocks 1, Overall Height 1.64 in, Overall Length 0.56 in, Overall Width 0.95 in, Features Installed Using the Push Button, Requires No Tools for Installation, For Use With Multi-Pole Breakers, Push Button, Single-Pole Breakers, Lockout Color Red, Lockout Material Fiberglass Reinforced Nylon
Attributes
| Key ^ | Value |
|---|---|
| Circuit Breaker Lockout Type | Pin-Out |
| Circuit Breaker Voltage | 120/277 |
| Color | Red |
| Dimensions (L x W x H) | 0.56 in x 0.95 in x 1.64 in |
| For Maximum Padlock Shackle Diameter, Padlock Shackle Max. Dia. | 9/32 in |
| For Use With | Multi-Pole Breakers, Push Button, Single-Pole Breakers |
| For Voltage | 120/277V AC |
| Height, Width | 1 in |
| Includes Cable Tie Slot | No |
| Item | DIN Style Miniature Breaker Lockout |
| Length | 9/16 in |
| Lockout Type | Pin-Out, Standard |
| Material | Nylon |
| Max. Number of Padlocks | 1 |
| Minimum Temperature | -4 Degrees F |
| OSHA Compliant | Yes |
| Overall Depth | 0.54 in |
| Overall Height | 1.64 in |
| Overall Length | 0.56 in |
| Overall Width | 0.95 in |
| Resistance Properties | Chemical Resistant |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
