| Accessory_Combined, For Use With | Multi-Pole Breakers, Push Button, Single-Pole Breakers |
| Circuit Breaker Lockout Type, Mount Type | Pin-In |
| Color, Lockout Color | Red |
| Country of Origin (subject to change) | Mexico |
| Dimensions (L x W x H) | 0.56 in x 0.95 in x 1.64 in |
| Features | Installed Using the Push Button, Requires No Tools for Installation |
| For Circuit Breaker Type | Mini |
| For Maximum Padlock Shackle Diameter, Padlock Shackle Max. Dia. | 9/32 in |
| For Voltage | 120/277V AC |
| Height | 1 5/8 in |
| Includes Cable Tie Slot | No |

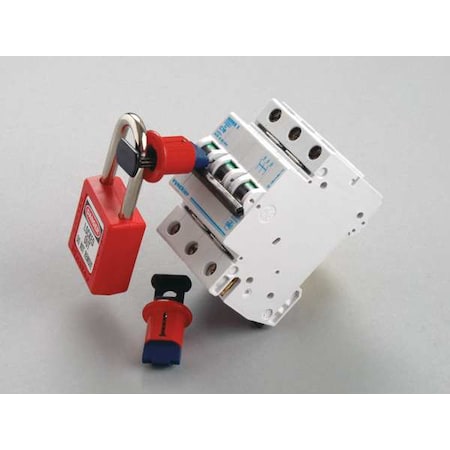

| Item | Circuit Breaker Lockout |
| Length, Length (Straight Wireway) | 9/16 in |
| Lockout Material, Material | Fiberglass Reinforced Nylon |
| Lockout Type | Pin-In, Standard |
| Max. Number of Padlocks | 6 |
| Maximum Number of Padlocks | 1 |
| Maximum Temperature | 248 Degrees F |
| Minimum Temperature | -4 Degrees F |
| OSHA Compliant | Yes |
| Overall Depth | 0.54 in |
| Overall Height | 1.64 in |
| Overall Length | 0.56 in |
| Overall Width | 0.95 in |
| Resistance Properties | Chemical Resistant |
| Standards | OSHA 1910.147 |
| TagLock Source Attribute | 90848 |
| Width | 15/16 in |
