| Accessory_Combined, For Use With | Multi-Pole Breakers, Push Button, Single-Pole Breakers |
| Circuit Breaker Lockout Type | Clamp-On |
| Color, Lockout Color | Red |
| Country of Origin (subject to change) | Mexico |
| Dimensions (L x W x H) | 0.94 in x 1.23 in x 2.16 in |
| Features | Installed Using the Push Button, Requires No Tools for Installation |
| For Circuit Breaker Type | Mini |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| For Voltage | 120/277V AC |
| Height | 2 3/16 in |
| Includes Cable Tie Slot | No |

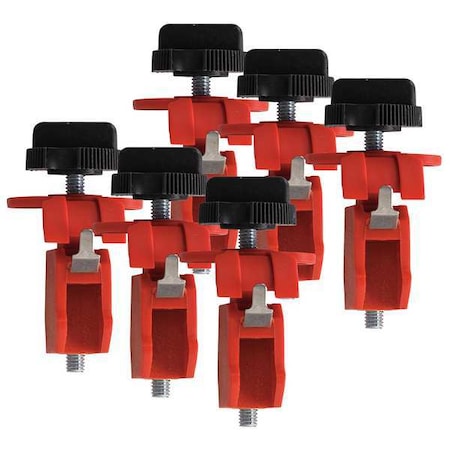

| Item | Miniature Circuit Breaker Lockout |
| Length, Length (Straight Wireway) | 15/16 in |
| Lockout Material, Material | Fiberglass Reinforced Nylon |
| Lockout Type, Mount Type | Tie Bar |
| Max. Number of Padlocks | 6 |
| Maximum Number of Padlocks | 2 |
| Maximum Temperature | 248 Degrees F |
| Minimum Temperature | -4 Degrees F |
| OSHA Compliant | Yes |
| Overall Depth | 0.5 in |
| Overall Height | 2.16 in |
| Overall Length | 0.94 in |
| Overall Width | 1.23 in |
| Padlock Shackle Max. Dia. | 5/16 in |
| Resistance Properties | Chemical Resistant |
| Standards | OSHA 1910.147 |
| TagLock Source Attribute | 90854 |
| Width | 1 1/4 in |
