Brand: Ashland Conveyor B007IB43UC

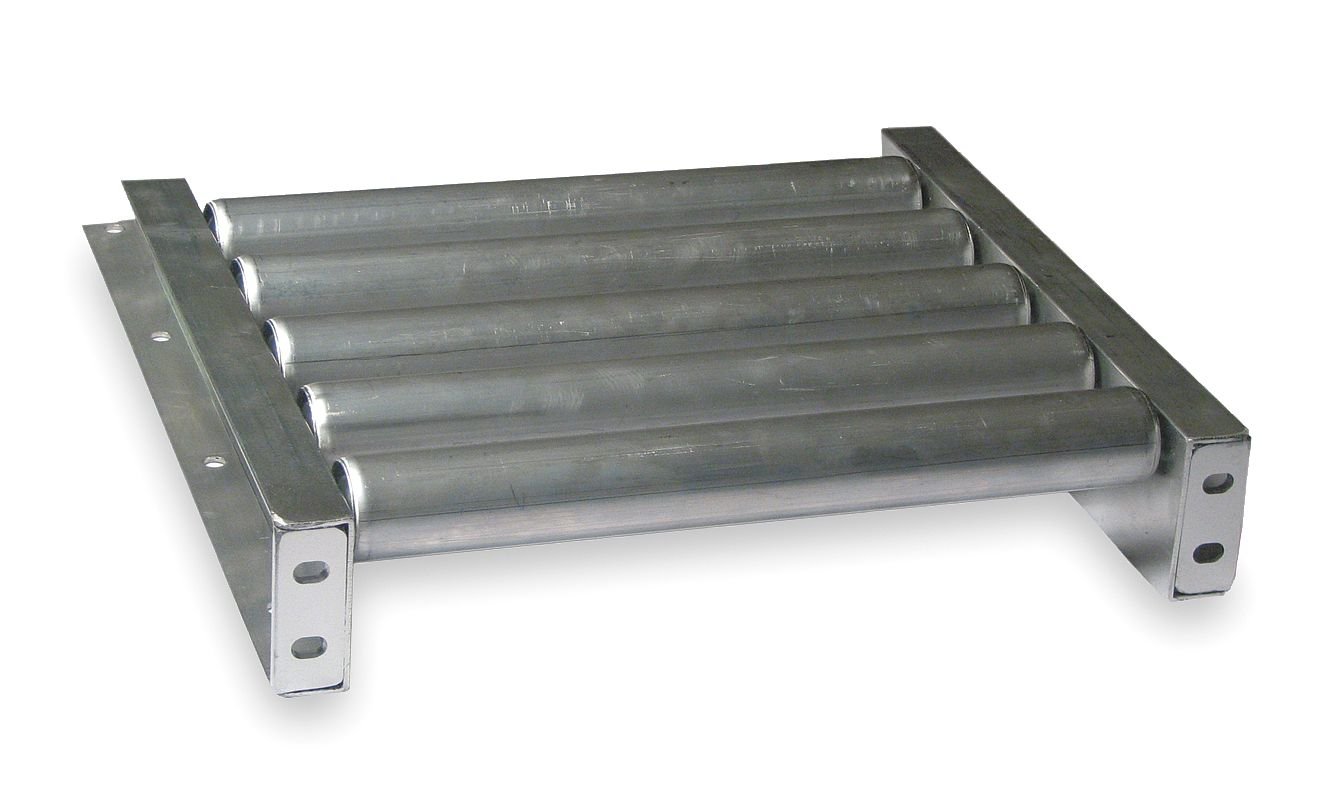

Gravity Steel and Aluminum Roller Conveyors Feature high-load capacity bearings, solid steel axles, and galvanized steel roller tubes. Rollers are set high within the frame. Support with H-stands. Can be field-cut. All straight conveyors are 10-ft. overall length. Note: Recommend a minimum of 3 rollers underneath conveyed product at all times. Note: Frame capacities are shown per linear ft. with supports on 5-ft. or 10-ft. centers. Medium-Duty 1-3/8 x 3-1/2 x 1-3/8 x 11-ga. powder-coated steel frames with end plates 1.9 x 16-ga. galvanized steel rollers with 7/16 hex spring axles 1.9 x 16-ga. aluminum frames and rollers This listing is for each. Technical Specification Bearings Ball Center to Center Roller Spacing 3' Frame Material 1/8' Aluminum Design Welded Item Roller Conveyor Overall Length 5 ft. Bed Length 5 ft. Overall Width 12-3/4' Bed Material Aluminum Between Frame Width 10' Roller Dia. 1-15/16' Rollers for Conveyor Section 20 Roller Position Set High on 3' Centers Roller Material 16 ga. Aluminum Frame Capacity per Foot on 5-Ft. Centers 420 lb.
