4N35-000E

B00LQPTVP8

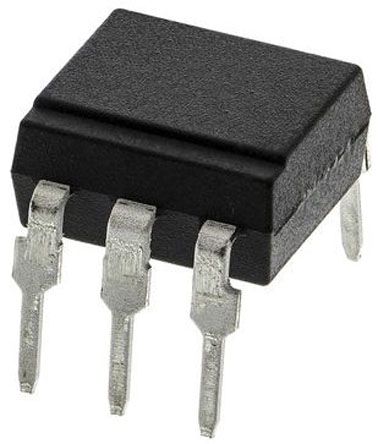

AVAGO TECHNOLOGIES 4N35-000E OPTOCOUPLER, PHOTOTRANSISTOR, 3550VRMS

AVAGO TECHNOLOGIES 4N35-000E OPTOCOUPLER, PHOTOTRANSISTOR, 3550VRMSzoom

Attributes

Key Value
Base Product Number4N35
BrandBroadcom
CaseDIP6
CategoryIsolators
Collector-emitter volta.10V
CTR@If100%@10mA
Current - DC Forward (I.60 mA
Current - Output / Chan.100mA
Current Transfer Ratio .-
Current Transfer Ratio .100% @ 10mA
DescriptionOPTOISO 3.55KV TRANS W/.
Detailed DescriptionOptoisolator Transistor.
Digi-Key Part Number516-4N35-000E-ND
Input TypeDC
Insulation voltage3.55kV
Isolation Voltage3.55 kVrms
Kind of outputtransistor
ManufacturerBroadcom Limited, BROAD.
Manufacturer Product Nu.4N35-000E
Manufacturer Standard L.20 Weeks
Maximum Forward Voltage1.5V
Maximum Input Current10 mA
MfrBroadcom Limited
Minimum Current Transfe.100%
MountingTHT
Mounting TypeThrough Hole, Surface M.
Number of channels1
Number of Channels1
Number of Pins6
Operating Temperature-55?C ~ 100?C
Output DevicePhototransistor
Output TypeTransistor with Base
PackageTube
Package / Case6-DIP (0.300", 7.62mm)
Package TypeDIP
Part StatusActive
Product StatusActive
Rise / Fall Time (Typ)3?s, 3?s
Series-, 4N35
Supplier Device Package6-DIP
Turn On / Turn Off Time.-
Turn-off time3?s
Turn-on time3?s
Type of optocoupleroptocoupler
Typical Fall Time3?s
Typical Rise Time3?s
Vce Saturation (Max)300mV
Voltage - Forward (Vf) .1.2V
Voltage - Isolation3550Vrms
Voltage - Output (Max)30V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet4N35-000E0.131117864Broadcom0.131 @ 10
thumbzoomRS Delivers189-47470.40446523010Broadcom0.4044 @ 65
thumbzoomTME4N35-000E0.42422488BROADCOM (AVAGO)0.424 @ 10
HotendaH27464980.441110Avago Technologies US, Inc.0.441 @ 10
thumbzoomDigi-Key7683650.473110Broadcom Limited0.473 @ 10
Mouser630-4N35-000E0.556126657Broadcom0.556 @ 10
thumbzoomRadwell4N35-000E0.82110AVAGO TECHNOLOGIES US INC0.82 @ 10
