- mpnCN-5706
- brandname: Bud Industries
- manufacturername: Bud Industries

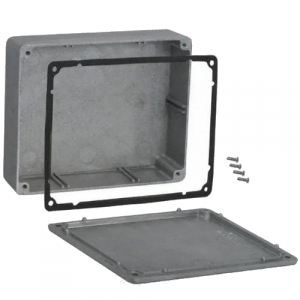

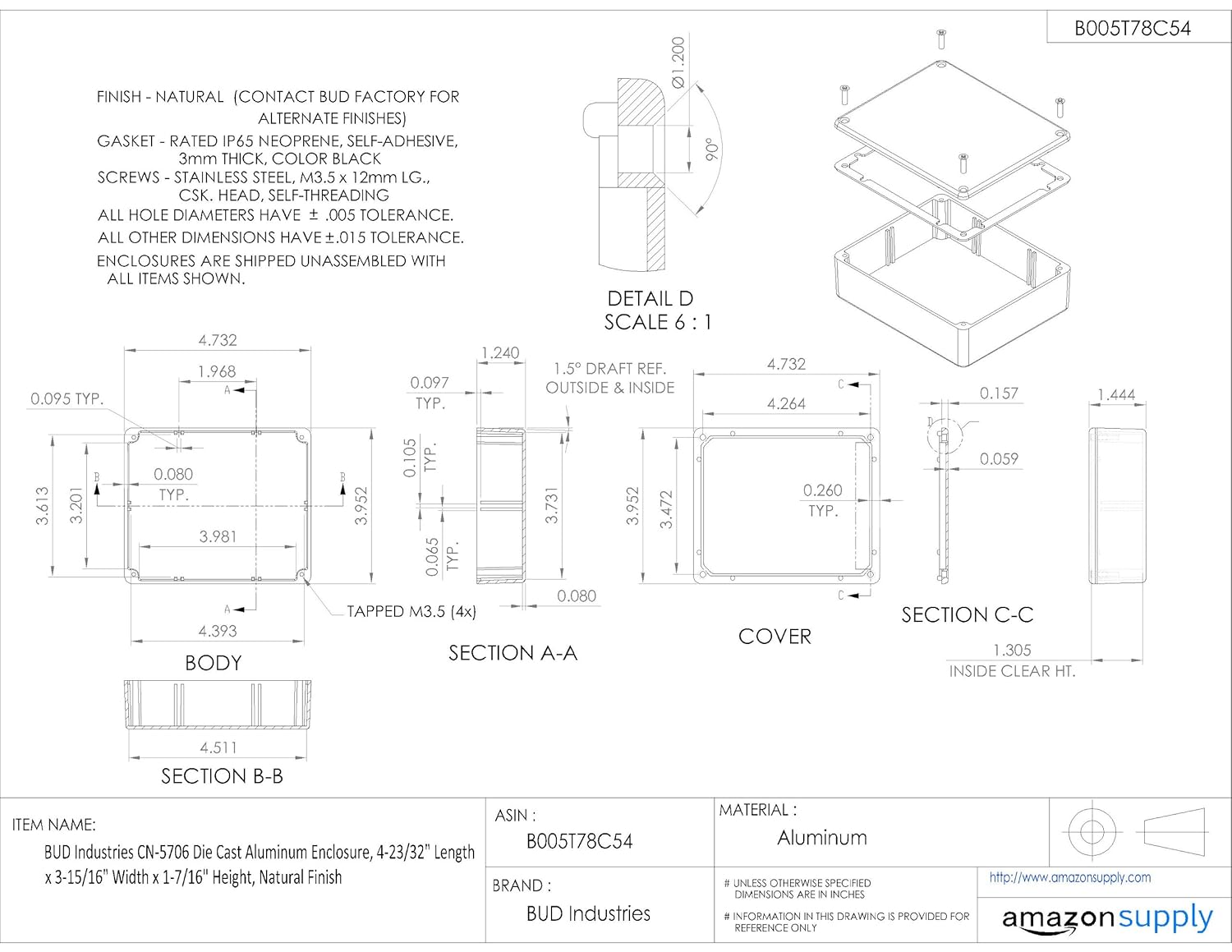

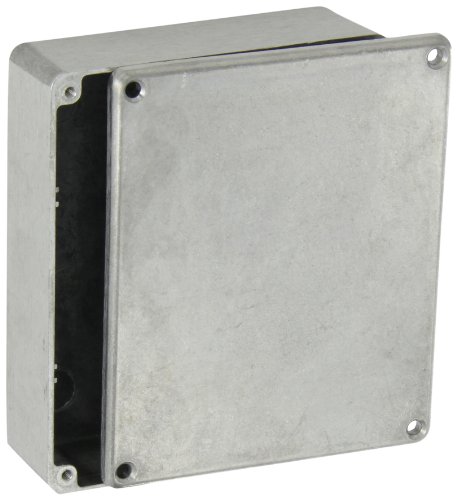

BUD Industries CN-5706 Die Cast Aluminum Enclosure 4.73" L x 3.95" W x 1.44" H, Natural
- Brand: BUD Industries
- PartNumber: CN-5706
- Model: CN-5706
- Color: Natural
- Size: 4-23/32" Length x 3-15/16" Width x 1-7/16" Height
- PackageQuantity: 1
- Binding: Unknown Binding
- Manufacturer: BUD Industries
- Label: BUD Industries
Attributes
| Key | Value |
|---|
| Approximate Depth | 1.4" (36mm) |
| Approximate Height | 4.7" (119mm) |
| Approximate Width | 4" (102mm) |
| Area (L x W) | 18.7in? (121cm?) |
| Body Length | 4.73 in |
| Body Width | 3.95 In. |
| Category | Boxes, Enclosures, Racks |
| Color | Natural |
| Composition | Metallic |
| Container Type | Box |
| Cover Design | Lift-Off Cover |
| Depth | 1.44 in |
| Description | BOX ALUM NAT 4.732"L X . |
| Design | Cover Included |
| Detailed Description | Box Metal, Aluminum Nat. |
| Digi-Key Part Number | 377-1517-ND |
| Dimensions | 4.73 x 3.95 x 1.44 . ; . |
| Dimensions (H x W x D) | 4.73 x 3.95 x 1.44" |
| Door Design | Lift-Off |
| Enclosure Mounting | Desktop |
| Family Series | Bud Industries Enclosur. |
| Features | Card Guides, Sealed |
| Finish | Natural |
| Gross Weight | 0.54 lbs |
| Height | 1.444" (36.68mm) |
| Inner Panel | Not Supported |
| IP Rating | IP66 |
| Item Number | CN-5706 |
| Latching Mechanism | Screws |
| Locking Feature | Screw |
| Manufacturer | Bud Industries |
| Manufacturer Part Number | CN-5706 |
| Manufacturer Product Nu. | CN-5706 |
| Manufacturer Standard L. | 10 Weeks |
| Material | Metal, Aluminum, ABS, C. |
| Material Flammability R. | - |
| Mfr | Bud Industries |
| Molded-in Card Guides | Yes |
| Mounting | Wall |
| NEMA Rating | 13 |
| NEMA Type | 4, 4X, 12 and 13 |
| Net Weight | 0 lbs |
| Nominal Depth | 1 " |
| Nominal Height | 5 " |
| Nominal Width | 4 " |
| Number of Doors | 1 |
| Package | Box |
| Panel Included | No |
| Product Series | CN |
| Product Status | Active |
| Ratings | IP66, NEMA 1,2,4,4X,12,. |
| RoHS | Yes |
| Series | CN Series, CN |
| Shipping Info | Shipped from Digi-Key |
| Size | Xtra Small |
| Size / Dimension | 4.732" L x 3.952" W (12. |
| Standards | RoHS |
| Thickness | 0.080" (2.03mm) |
| Type | Box-Lid |
| Wall Thickness | 0.08" |
| Weight | 0.544 lb (246.75 g) |
| Wgt. Ozs. | 8.7 |
| Window/Clear Cover | No |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AI Consolidated | CN-5706-BUD | 7.93 | 1 | In Stock | | Bud Industries | 0.6 | 7.93 @ 1 |
| Hawk Electronics | CN-5706 | 9.3 | 1 | In Stock | | BUD | | 9.3 @ 1 |
 | usmegastore.com | CN-5706 | 9.39 | 1 | In Stock | | Bud Industries | | 9.39 @ 1 |
 | Galco | CN-5706-BUDI | 11.51 | 1 | In Stock | | Bud Industries | 0.54 | 11.51 @ 1 |
| Onlinecomponents.com | CN-5706 | 11.54 | 1 | 18 | | BUD INDUSTRIES | | 11.54 @ 1 |
| Hotenda | H18250 | 12.0 | 1 | In Stock | | BUD Industries, Inc. | | 12.0 @ 1 |
 | Digi-Key | 1219178 | 12.8 | 1 | In Stock | | Bud Industries | 0.544 | 12.8 @ 1 |
 | Newark | 79K6006 | 13.19 | 1 | 1113 | | BUD INDUSTRIES | | 13.19 @ 1 |
 | jensentools.com | 10012592 | 13.3 | 1 | 1170 | | Bud Industries | | 13.3 @ 1 |
| us.rs-online.com | 70147718 | 14.37 | 1 | In Stock | | Bud Industries | | 14.37 @ 1 |
 | Solutions Direct | CN-5706 | 14.5 | 1 | In Stock | | Bud Industries | | 14.5 @ 1 |
| AmazonTP | B005T78C54 | 17.17 | 1 | In Stock | 5 | BUD Industries | | 17.17 @ 1 |
 | Amazon | B005T78C54 | 17.17 | 1 | In Stock | | BUD Industries | | 17.17 @ 1 |
| AmazonUNK | B005T78C54 | 17.17 | 1 | In Stock | | BUD Industries | | 17.17 @ 1 |
 | National Supply Network | B562779 | 21.75 | 8 | In Stock | | Bud Industries Inc | | 21.75 @ 8 |
