Bunting Bearings FFM012018020

B0040JG5HY

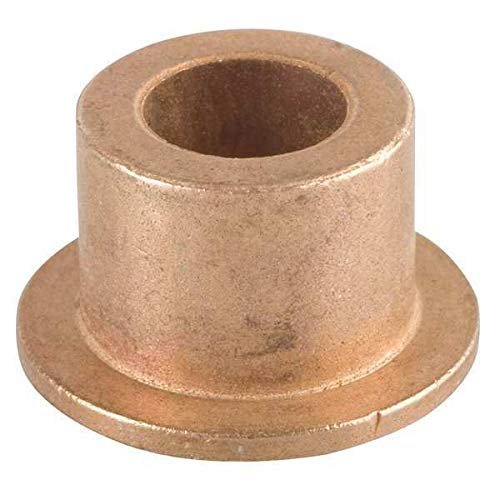

Bunting Bearings FFM012018020 Flanged Metric Bearings, Powdered Metal SAE 841, 12.0 MM Bore x 18.0 MM OD x 24.0 MM Length 20.0 MM Flange OD x 3.0 MM Flange Thickness

Bunting Bearings FFM012018020 Flanged Metric Bearings, Powdered Metal SAE 841, 12.0 MM Bore x 18.0 MM OD x 24.0 MM Length 20.0 MM Flange OD x 3.0 MM Flange Thicknesszoom

Attributes

Key Value
Bore Diameter12 mm
Bronze Material TypeSintered Bronze
ColorBronze
Country of Origin (subj.United States
Flange Dia. (mm)24 mm
Flange Diameter24 mm
Flange Thickness3 mm
Flange Thickness (mm)3 mm
Flange TypeFlanged
For EnvironmentVacuum
Inside Dia.12 mm
Inside Diameter12 mm
ItemFlanged Sleeve Bearing
Length20 mm
Length (Straight Wirewa.20 mm
Lubricant MaterialSAE 30 Oil
LubricationLubricated
Lubrication MethodEmbedded
Lubrication TypeSelf Lubricating
MaterialMetal
Material GradeSAE 841
Material GroupMetallic
Max. Pv50,000 lb/sq in-fpm
Maximum PV50,000 lb/sq in-fpm
Maximum Temperature220 Degrees F
Minimum Temperature10 Degrees F
Outside Dia.18 mm
Outside Diameter18 mm
Overall Length20 mm
Plain Bearing MaterialBronze
StandardsASTM
System of MeasurementMetric
Temp. Range (F)10 Degrees to 220 Degr.
Temperature Range10 Degrees F to 220 D.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG405801323.015Bunting Bearings0.2523.0 @ 5
thumbzoomsustainablesupply.comC297315937.015Bunting Bearings0.2537.0 @ 5
