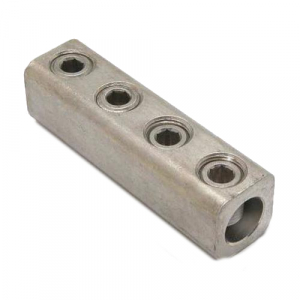

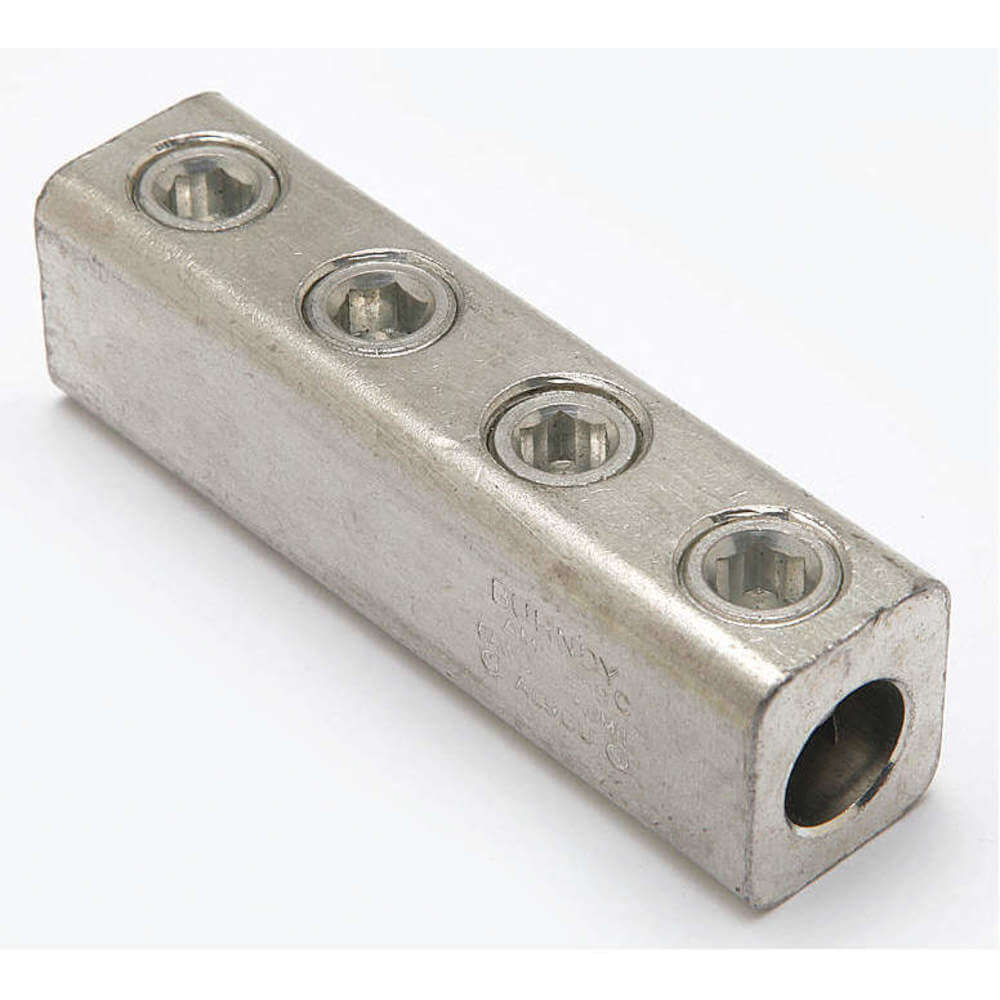

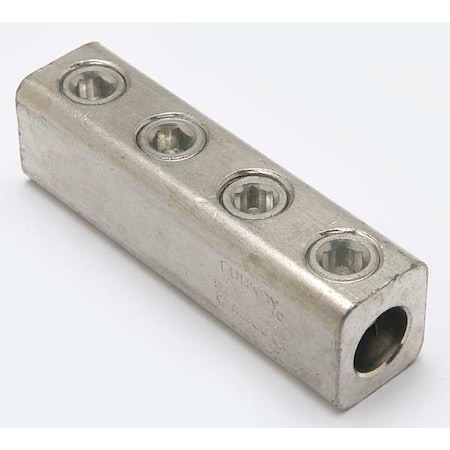

Burndy AMS-250
Burndyzoom

Burndy AMS-250

mpn:
AMS-250
brand:
BURNDY
manufacturer:
BURNDY
MPN:
AMS-250
Weight:
0.021875
Weight:
0.021875 LB
Preferred Price:
21.83
Price:
21.83
Min Simple Price:
11.71
Absolute Min Price:
17.03
Min Price:
17.03
Dimensions:
[5.0, 2.0, 2.0]
qty:
21
simpleSku:
NjQxNw:::AMS-250
sku:
NjQxNw::ZW:AMS-250@y0
condition:
11
seller:
steinerelectric.com
amzMan:
burndy
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Aluminum Size (Range), Conductor - AL Str Size Range, Conductor - Copper Solid Run Range, Conductor - Copper Solid Tap Range6 AWG-4/0 AWG
ApplicationFor Use With Copper And Aluminum Conductors
ApprovalsCSA, UL
Body Material, Housing Material, Material, Material - Hardware, Product MaterialAluminum
Brand, ManufacturerBurndy
Carton1
Category Description, ClassificationComp & Mech Lugs and Butt Splices
Certification - CSA Approved, Certification - UL Listed Direct Burial, Direct Burial, RoHS CompliantNo
Certification - CSA Approved, UL ListedYes
ColorBare
Compatible with Product TypeAluminum Cable, Copper Cable
Conductor - AL Str Run Range, Conductor - AL Str Tap Range, Conductor - Copper Str Run Range, Conductor - Copper Str Size Range, Conductor - Copper Str Tap Range, Conductor Size, Copper Stranded (Range), Wire Range6 AWG-250 KCMIL
Conductor - AL Str Run, Conductor - AL Str Tap6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - AL Str Size6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Run, Conductor - Copper Solid Tap6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size Range, Copper Solid Size (Range)4 AWG-4/0 AWG
Conductor - Copper Str Run, Conductor - Copper Str Size, Conductor - Copper Str Tap6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Connection OrientationDual Rated Splice/Reducer
Connector TypeSplice/Reducer, Splice,Reducer, Splice;Reducer
Contact Finish, Plating Type, Type of PlatingTin
Country of OriginMX - Mexico
CSA Certified, Plated, Plated (Yes or No), UL ListedY
CULUS, Rated for Direct Burial, UL RecognizedN
Description250-6 Al/Cu Butt Splice
Dimension - H1 Height inch, Overall Width, Width1.09 in
Dimension - Height fraction1-3/32, 11691
Dimension - L Length Overall mm104 mm
Dimension - Length Overall inch, Length, Length (Straight Wireway), Overall Length4.09 in
Dimension - Width fraction, Overall Depth1 in
Dimension - Width inch1.00 in
Dimension - Width mm25 mm
ECCNEAR99
extra long descriptionBUR AMS250 250-6 DUAL RATED SPLICE
Family SeriesBurndy Terminals, AMS Series
For Conductor MaterialAluminum, Copper
For Stranded Copper Wire Size - Maximum250 kcmil
For Stranded Copper Wire Size - Minimum6 AWG
For Stud Size5/8 in
For Wire Size1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG
Gross Weight0.0181 lbs
GTIN00781810241035
H11.09
Head StyleHex
Hex Size5/16, 45062
Hole Diameter, Hole Spacing, Tongue Thickness, Tongue WidthNot Applicable
Industry Standard(s), Industry Standards, standard, Standards - Industry Standards MetUL467
Installation Torque50
Installation Torque Recommended in-lb50 LBS/in
ItemMechanical Connector
Item Number, Manufacturer Part Number, Manufacturers Part NumberAMS250
Length (in)4.09
Long DescriptionAluminum Mechanical Splice, 250 kcmil-6 AWG, 5/8" Screw Dia, 4 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated.
MaterialTin Plated Aluminum, Tin-Plated Aluminum
Max. Conductor Size250 kcmil Solid
Maximum Operating Temperature194 Degrees F
Maximum Voltage600 V
Min. Conductor Size6 AWG Stranded
Net Weight0 lbs
No. of Conductors, Number of Conductors2
Number of Screws, Number of Terminations, Physical Attribute - Number of Screws4
Package10
Physical Attribute - Screw TypeAllen
Product DescriptionAluminum Mechanical Splice, 250 kcmil-6 AWG, 5/8" Screw Dia, 4 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated
Product SeriesAMS
Product TypeSPLICE REDUCER
Rating - Minimum Voltage600
ROHS CompatibleExempt
Special FeaturesConnectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion, Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With
StandardsCSA Certified, UL Listed
Standards - RoHS Compliance StatusEX
sub brand, Sub BrandSPLICER/REDUCER
Temperature Rating194? F, 194? F, 194? F
Torque50 in-lb
TypeAMS, Dual Rated
UNSPSC39121458, 39121458 - Wire or cable compression reducer
UPC781810241035
Use WithAluminum Conductors, Copper Conductors
Weight per each0.29
Width (in)1.00
Wire Size1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3 AWG, 3/0 AWG, 4 AWG, 4/0 AWG, 5 AWG, 6 AWG
Wire Size Ranges6 AWG - 250 kcmil

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
steinerelectric.com1947611.7111.711In StockBURNDY11.71 @ Qty: 1+
thumbzoomZoroG469559123.6523.65127Burndy0.3523.65 @ Qty: 1+
thumbzoommayerelectric.comBURAMS25025.4925.491In StockBURNDY25.49 @ Qty: 1+
Graybar9204243727.462427.46241In StockBurndy27.4624 @ Qty: 1+
thumbzoomGalcoAMS250-BURN30.1730.171In StockBurndy0.018130.17 @ Qty: 1+
thumbzoomusmegastore.comAMS25034.0834.081In StockBurndy34.08 @ Qty: 1+
kirbyrisk.com202509537.1137.111In StockBurndy37.11 @ Qty: 1+
thumbzoomElliott ElectricAMS25048.948.91In StockBurndy0.2948.9 @ Qty: 1+
thumbzoomRaptor SuppliesAB6RET60.370420560.37042051In StockBURNDY60.3704205 @ Qty: 1+
B00CBK3RZW
Burndy AMS-250

Burndy AMS-250 Dual Rated Splicer/Reducer, 250 kcmil - AWG 6 Wire Range, 4 Screws, 5/16 Hex, 5/8" Diameter, 1" Width, 4-3/32" Length, 1.29" Height

Burndy AMS-250 Dual Rated Splicer/Reducer, 250 kcmil - AWG 6 Wire Range, 4 Screws, 5/16 Hex, 5/8" Diameter, 1" Width, 4-3/32" Length, 1.29" Heightzoom
