- mpnAMS-350
- brandname: BURNDY
- manufacturername: BURNDY

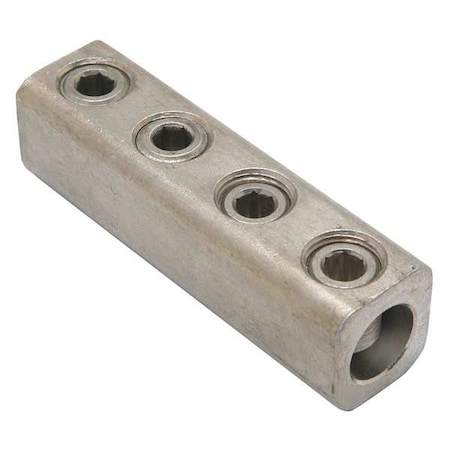

Burndy AMS-350 Dual Rated Splicer/Reducer, 350 kcmil - AWG 6 Wire Range, 4 Screws, 5/16 Hex, 11/16" Diameter, 1" Width, 4-11/32" Length, 1.30" Height
- Brand: Burndy
- PartNumber: AMS-350
- Model: AMS-350
- Color: Aluminum
- Size: 350 kcmil - AWG 6
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Burndy
- Label: Burndy
Attributes
| Key | Value |
|---|
| Application | For Use With Copper And. |
| Approvals | CSA, UL |
| Body Material | Aluminum |
| Brand | Burndy |
| Certification - CSA App. | No |
| Certification - UL List. | No |
| Color | Bare, Aluminum |
| Compatible with Product. | Aluminum Cable, Copper . |
| Conductor - ACSR Cmpt S. | 400 kcmil |
| Conductor - ACSR Str Si. | 336 kcmil-350 kcmil |
| Conductor - AL Str Run | 6 AWG;4 AWG;3 AWG;2 AWG. |
| Conductor - AL Str Run . | 6 AWG-350 KCMIL |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG. |
| Conductor - AL Str Size. | 6 AWG-350 KCMIL |
| Conductor - AL Str Tap | 6 AWG;4 AWG;3 AWG;2 AWG. |
| Conductor - AL Str Tap . | 6 AWG-350 KCMIL |
| Conductor - Copper Soli. | 6 AWG;5 AWG;4 AWG;3 AWG. |
| Conductor - Copper Soli. | 6 AWG-4/0 AWG |
| Conductor - Copper Soli. | 4 AWG;3 AWG;2 AWG;1 AWG. |
| Conductor - Copper Soli. | 4 AWG-4/0 AWG |
| Conductor - Copper Soli. | 6 AWG;5 AWG;4 AWG;3 AWG. |
| Conductor - Copper Soli. | 6 AWG-4/0 AWG |
| Conductor - Copper Str . | 400 kcmil |
| Conductor - Copper Str . | 6 AWG;5 AWG;4 AWG;3 AWG. |
| Conductor - Copper Str . | 6 AWG-350 KCMIL |
| Conductor - Copper Str . | 6 AWG;5 AWG;4 AWG;3 AWG. |
| Conductor - Copper Str . | 6 AWG-350 KCMIL |
| Conductor - Copper Str . | 6 AWG;5 AWG;4 AWG;3 AWG. |
| Conductor - Copper Str . | 6 AWG-350 KCMIL |
| Conductor Size | 6 AWG-350 KCMIL |
| Connection Orientation | Dual Rated Splice/Reduc. |
| Connector Type | Splice/Reducer, Splice;. |
| Contact Finish | Tin |
| Country of Origin | MX - Mexico |
| Current Stock | 9 |
| Depth | 0.56 in |
| Die Size | Kearney 11/8-2Burndy 31. |
| Dimension - H1 Height i. | 1.09 in |
| Dimension - Height frac. | 1-3/32, 11691 |
| Dimension - L Length Ov. | 110 mm |
| Dimension - Length Over. | 4.34 in |
| Dimension - Width fract. | 1 in |
| Dimension - Width inch | 1.00 in |
| Dimension - Width mm | 25 mm |
| Direct Burial | No |
| ECCN | EAR99 |
| Family Series | Burndy Terminals, AMS S. |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wir. | 350 kcmil |
| For Stranded Copper Wir. | 6 AWG |
| For Stud Size | 11/16 in |
| For Wire Size | 1/0 AWG, 2 AWG, 2/0 AWG. |
| Gross Weight | 0.385 lbs |
| Head Style | Hex |
| Hex Size | 5/16, 45062 |
| Hole Diameter | Not Applicable |
| Hole Spacing | Not Applicable |
| Housing Material | Aluminum |
| Industry Standard(s) | UL467 |
| Installation Torque Rec. | 275 LBS/in |
| International Shipping | No |
| Item | Mechanical Connector |
| Item Number | AMS350 |
| Lead Time | Expected to ship in 1-2. |
| Length | 4.34 in |
| Length (Straight Wirewa. | 4.34 in |
| Manufacturer | Burndy |
| Manufacturer Part Number | AMS350 |
| Material | Tin Plated Aluminum, Al. |
| Material - Hardware | Aluminum |
| Max. Conductor Size | 350 kcmil Stranded |
| Maximum Operating Tempe. | 194 Degrees F |
| Maximum Voltage | 600 V |
| Min. Conductor Size | 6 AWG Stranded |
| Mpn | AMS350 |
| Net Weight | 0.385 lbs |
| No. of Conductors | 2 |
| Number of Conductors | 2 |
| Number of Terminations | 4 |
| Overall Depth | 1 1/8 in |
| Overall Length | 4.34 in |
| Overall Width | 1.09 in |
| Physical Attribute - Nu. | 4 |
| Physical Attribute - Sc. | Allen |
| Plated | Y |
| Plating Type | Tin |
| Product Series | AMS |
| Rating - Minimum Voltage | 600 |
| RoHS Compliant | No |
| SKU | ZO-G4702424 |
| Special Features | Connectors Feature Roun. |
| Standards | ANSI, CSA Certified, UL. |
| Standards - Industry St. | UL467 |
| Standards - RoHS Compli. | EX |
| Stud Size | 11/16 in |
| Sub Brand | SPLICER/REDUCER |
| SubCategory | Electrical |
| Temperature Rating | 194? F, 194? F |
| Tongue Thickness | Not Applicable |
| Tongue Width | Not Applicable |
| Torque | 275 in-lb |
| Type | AMS, Dual Rated |
| UL Listed | Yes |
| UNSPSC | 39121458 |
| UPC | 781810554586 |
| Use With | Aluminum Conductors, Co. |
| Width | 1.09 in |
| Wire Range | 6 AWG-350 KCMIL |
| Wire Size | 1 AWG, 1/0 AWG, 2 AWG, . |
| Wire Size Ranges | 6 AWG - 350 kcmil |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Graybar | 92042443 | 28.2688 | 1 | In Stock | | Burndy | | 28.2688 @ 1 |
 | gordonelectricsupply.com | AMS-350 | 30.36 | 1 | In Stock | | BURNDY | | 30.36 @ 1 |
 | Zoro | G4702424 | 35.52 | 1 | 64 | | Burndy | 0.4 | 35.52 @ 1 |
 | usmegastore.com | AMS350 | 36.35 | 1 | In Stock | | Burndy | | 36.35 @ 1 |
 | Galco | AMS350-BURN | 36.96 | 1 | In Stock | | Burndy | 0.385 | 36.96 @ 1 |
 | simsupply.com | ZO-G4702424 | 49.7 | 1 | 9 | | Burndy | | 49.7 @ 1 |
 | Raptor Supplies | AB6REU | 64.0353285 | 1 | In Stock | | BURNDY | | 64.0353285 @ 1 |
