Burndy YA1CA1

B00GPQ3UCI

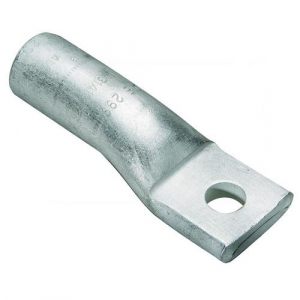

YA1CA1 -- LUG ALU COMP #1 1 hole 3/8" ALCU

YA1CA1 -- LUG ALU COMP #1 1 hole 3/8" ALCUzoom

Attributes

Key Value
ApplicationWire Termination, For A.
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA1CA1
Certification - CSA App.No
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
Color CodeGold
Conductor - AL Str Size1 AWG
Conductor - AL Str Size.1 AWG
Conductor - Copper Str .1 AWG
Conductor - Copper Str .1 AWG
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Die ColorGold
Die Index471
Dimension - B Length fr.7/8 in
Dimension - B Length in.0.91 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - D inch1.19 in
Dimension - Hole Size i.0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Ov.66 mm
Dimension - Length Over.2.59 in
Dimension - N inch0.44 in
Dimension - Outside Dia.0.54 in
Dimension - Pad Width i.0.76 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size i.3/8
Dimension - Thread Size3/8
Dimension - Z inch0.75 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-A .
Feature - Barrel TypeStandard
Features: Type YA-A Alu.471
Gross Weight0.0019 lbs
Industry Standard(s)UL468A-468B
Item NumberYA1CA1
Item TypeYA-A, Dual Rated, 3A
Lug Wire Size1 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA1CA1
MaterialAluminum
Material/CompositionCopper
Max Conductor Range1 AWG
Min Conductor Range1 AWG
Net Weight0 lbs
Number of Holes1
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating TypeTin - Electro Plated
Product SeriesYA-A
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: Type YA-A Alu.
StandardUL 486A-486B
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Stud Size3/8 in.
Sub BrandHYLUG
Temperature Rating194
Trade NameHYLUG?, HYLUG?
TypeYA-A, Dual Rated
UL ListedYes
UNSPSC39121405
UPC781810751206
UPC 12 Digit7818107512066
UPC Code781810751206
Voltage - Maximum35000
Voltage Rating35

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com196254.721In StockBURNDY4.72 @ 1
thumbzoomgordonelectricsupply.comYA1CA19.111In StockBURNDY9.11 @ 1
thumbzoommayerelectric.comBURYA1CA110.08120BURNDY10.08 @ 1
thumbzoomZoroG10243835711.21In Stock54Burndy11.2 @ 1
kirbyrisk.com179376213.841In StockBurndy13.84 @ 1
thumbzoomusmegastore.comYA1CA114.511In StockBurndy14.51 @ 1
us.rs-online.com7148697517.21In StockBURNDY17.2 @ 1
Graybar8804853517.67361In StockBurndy17.6736 @ 1
thumbzoomcrescentelectric.com18363821.061In StockBurndy-US, a Hubbell affiliate21.06 @ 1
thumbzoomGalcoYA1CA1-BURN22.371In StockBurndy0.001922.37 @ 1
