Burndy YA2C2LN

B002FYG37S

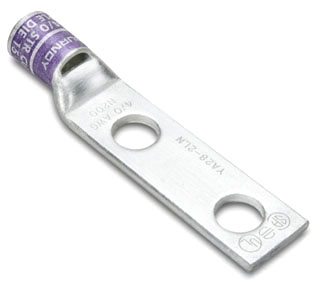

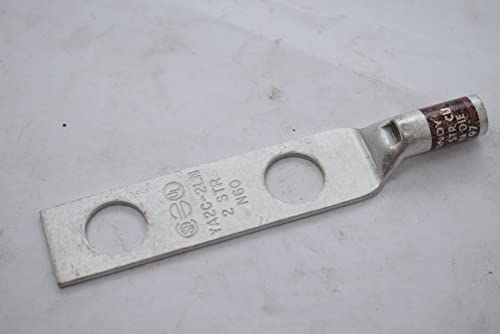

BURNDY YA2C2LN Lug, 2H, 2AWG, Short-(2) NEMA, Copper

BURNDY YA2C2LN Lug, 2H, 2AWG, Short-(2) NEMA, Copperzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA2C2LN
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorBrown
Color CodeBrown
Color FamilyBrown
Conductor - Copper DLO .N/A
Conductor - Copper Str .60 (37) Navy
Conductor - Copper Str .60 (37) Navy
Conductor - Copper Str .2 AWG
Conductor - Copper Str .2 AWG
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cross Reference Products256-30695-1049
Die ColorBrown
Die Index10
Dimension - B Length fr.7/8 in
Dimension - B Length in.0.88 in
Dimension - Bolt Hole S.0.52 in
Dimension - D inch3.02 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.108 mm
Dimension - Length Over.4.27 in
Dimension - N inch0.63 in
Dimension - Outside Dia.0.42 in
Dimension - Pad Width i.0.83 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size i.1/2
Dimension - Z inch0.64 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-2L.
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishTin-Plated
Gross Weight0.0056 lbs
GTIN00781810500767
InsulatedNon-Insulated
Item NumberYA2C2LN
Item TypeStandard Barrel, Tin Pl.
Lug Wire Size2 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA2C2LN
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-2LN
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Hole Spacing1.75 in.
Stud Size1/2 in.
Stud Spacing1.75
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeBarrel - Standard, Two .
Tongue Width0.83 "
Trade NameHYLUG?
UL ListedYes
UNSPSC39121405
UPC781810500767
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Wire Size2 AWG
Wire Size (AWG)2 AWG
Wire Strip Length0.9375 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comYA2C-2LN6.0812BURNDY6.08 @ 2
thumbzoomSpecialized Products109X3536.3612Burndy6.36 @ 2
thumbzoomKelly HayesYA2C-2LN6.451270Burndy6.45 @ 2
Graybar890208306.60812Burndy6.608 @ 2
thumbzoomGalcoYA2C2LN-BURN7.812Burndy0.00567.8 @ 2
thumbzoomZoroG2024389058.661259Burndy8.66 @ 2
thumbzoomusmegastore.comYA2C2LN11.7912Burndy11.79 @ 2
thumbzoomcrescentelectric.com17083219.012Burndy-US, a Hubbell affiliate19.0 @ 2
