Description:

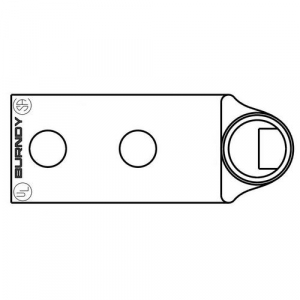

<p><strong>Burndy, YA2CL2NT1490, 10015267 Copper Compression Lug, 2 Hole, #2 AWG, 1/4" Stud, Standard Barrel Narrow, 5/8" Spacing, 90 Degree </strong> </p>
Attributes
| Key ^ | Value |
|---|---|
| Certification - CSA Approved, UL Listed | Yes |
| Certification - cULus, Certification - UL Recognized | No |
| Color Code | Brown |
| Conductor - AL Str Size, Conductor - AL Str Size Range, Conductor - Copper Str Size | 2 AWG |
| Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range | 60 (37) Navy |
| Conductor - Material, Material | Copper |
| Connector Type | Terminal |
| Die Index | 10 |
| Dimension - B Length inch | 0.88 in |
| Dimension - Bolt Hole Size inch, Dimension - Hole Size inch | 0.27 in |
| Dimension - D inch | 1.26 in |
| Dimension - Height inch | 1.37 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - L Length Overall mm | 48 mm |
| Dimension - Length Overall inch | 1.68 in |
| Dimension - N inch | 0.31 in |
| Dimension - Outside Diameter inch | 0.42 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Strip Length inch | 15/16 |
| Dimension - Z inch | 0.32 in |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Item Type | 3B |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Angle | 90 Degree |
| Plated | Y |
| Plating Type | Tin |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| Standards - RoHS Compliance Status | CM |
| Temperature Rating | 194 |
| Trade Name | HYLUG? |
| Type | Long Barrel, Tin Plated |
| Voltage - Maximum | 35000 |
