CAI - BURNDY YA2CLBOX

B07J9MK9X1

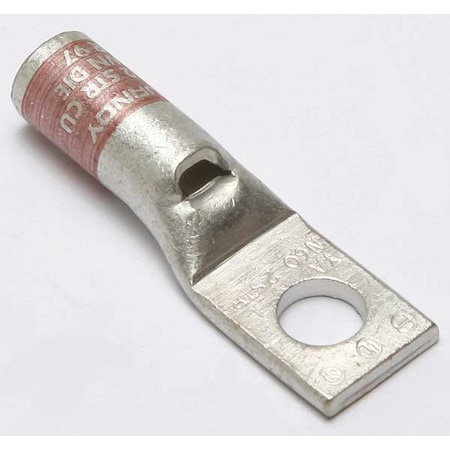

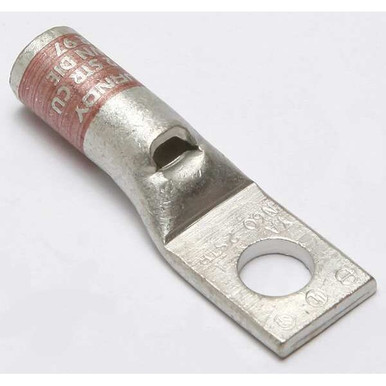

BURNDY 2 AWG One-Hole Lug Compression Connector, Straight Barrel, Brown

BURNDY 2 AWG One-Hole Lug Compression Connector, Straight Barrel, Brownzoom

Attributes

Key Value
Allowable Gauge Range2
ApplicationFor Code Conductor, Wir.
ApprovalsCSA, UL
Barrel LengthShort
Barrel Outside Diameter0.42 in
Barrel SizeStandard
Barrel StyleChamfered, Skived
BrandBurndy-US, a Hubbell af.
Cable Size2 AWG
Catalog NumberYA2CLBOX
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorBrown
Color CodeBrown
Color FamilyBrown
Colour CodeBrown
Conductor - Copper Str .60 (37) Navy
Conductor - Copper Str .60 (37) Navy
Conductor - Copper Str .2 AWG
Conductor - MaterialCopper
Connector TypeTerminal, Straight Barr.
Contact FinishTin
Country of OriginUnited States, US - Uni.
Cross Reference ProductsCSWS-2-516
Current Stock42
Die Code10
Die ColorBrown
Die Index10
Dimension - B Length in.0.88 in
Dimension - Bolt Hole S.0.33 in
Dimension - D inch0.70 in
Dimension - Hole Size i.0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Ov.49 mm
Dimension - Length Over.1.93 in
Dimension - N inch0.34 in
Dimension - Outside Dia.0.42 in
Dimension - Pad Width i.0.61 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size f.5/16
Dimension - Stud Size i.5/16
Dimension - Z inch0.36 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel TypeStandard
FinishTin-Plated
For Conductor MaterialCopper
For Stranded Copper Wir.2 AWG
For Stranded Copper Wir.2 AWG
For Stud Size5/16 in
For Wire Size2 AWG
For Wire TypeStranded
Gross Weight0.9485 lbs
GTIN00781810551509
Hole Center to CenterNot Applicable
Hole Center to End0.34 in
Hole Size0.33 in
Inspection HoleYes
InsulatedNon-Insulated
International ShippingNo
ItemOne-Hole Lug Compressio.
Item NumberYA2CLBOX
Item Type3A, Standard Barrel, Ti.
Length1.93"
Length (Straight Wirewa.1.94 in
Lug Wire Size2 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA2CLBOX
MaterialCopper
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kVAC
Minimum Pack Quantity1
Mounting1-Hole
MpnYA2CLBOX
Net Weight0 lbs
Number of Holes1
Overall Length1.93 in
Overall Width0.61 in
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
SKUZO-G4687541
Special FeaturesBarrel is Designed with.
StandardUL 486A-486B
StandardsCSA, UL467, UL, Califor.
Standards - RoHS Compli.CM
Strip Length15/16 in
Stud Size5/16 in., 5/16 in
Sub BrandHYLUG
SubCategoryElectrical
Temperature Rating194
Terminal MaterialCopper
Terminal TypeRing
Termination StyleCrimp
Tongue AngleStraight
Tongue Length0.7 in
Tongue StyleStandard
Tongue Thickness0.11 in
Tongue Width0.61 ", 0.61 in
Tongue Width Ranges0.51 - 0.75 inches
Trade NameHYLUG?, HYLUG?
TypeCompression Lug, Standa.
UL ListedYes
UNSPSC39121405
UPC781810551509, 781810555.
UPC 12 Digit7818105515099
UPC Code781810551509
Use WithCopper
Voltage - Maximum35000
Voltage Rating35
Volts AC600
Width0.61"
Wire Size2 AWG
Wire Size (AWG)2 AWG
Wire Size Range2 AWG - 2 AWG
Wire Size Ranges2 AWG - 2 AWG
Wire Strip Length0.937 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPlatt.com09159181.116Burndy1.1 @ 1
thumbzoomelectricalparts.comYA2CLBOX1.23216Burndy1.232 @ 1
steinerelectric.com195793.5128BURNDY3.5 @ 1
thumbzoomSpecialized Products109X3594.76128Burndy4.76 @ 1
thumbzoommayerelectric.comBURYA2CLBOX5.191In StockBURNDY5.19 @ 1
thumbzoomGalcoYA2CLBOX-BURN5.81In StockBurndy0.94855.8 @ 1
grainger.caWWG22C2987.68628554128BURNDY0.017.68628554 @ 1
thumbzoomMegadepotYA2CLBOX7.731In StockBurndy7.73 @ 1
thumbzoomZoroG46875418.981338Burndy0.018.98 @ 1
thumbzoomusmegastore.comYA2CLBOX8.981In StockBurndy8.98 @ 1
us.rs-online.com714871029.0110BURNDY9.0 @ 1
Graybar8804858611.00961In StockBurndy11.0096 @ 1
thumbzoomRaptor SuppliesAB6RHK13.68753751In StockBURNDY13.6875375 @ 1
thumbzoomsimsupply.comZO-G468754116.27142Burndy16.27 @ 1
thumbzoomcrescentelectric.com1934418.13137Burndy-US, a Hubbell affiliate18.13 @ 1
