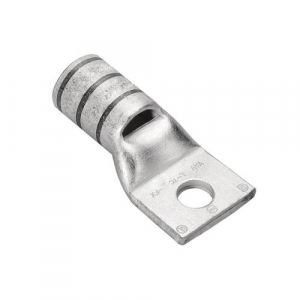

Burndy YA32LTC58FX
Burndyzoom
brand:
manufacturer:
Description:
<p>300 kcmil G,H,I,K,M,313 DLO CU, One Hole, 5/8 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Red Color Code, 18 or 324 Die Index. </p>

Attributes

Key Value
Color CodeRed
Conductor - Copper DLO Size313.1 (775/#24) DLO
Conductor - Copper DLO Size Range313 kcmil
Conductor - Copper Flex G Size300 kcmil
Conductor - Copper Flex G Size Range300 kcmil
Conductor - Copper Flex H Size300 kcmil
Conductor - Copper Flex H Size Range300 kcmil
Conductor - Copper Flex I Size300 kcmil
Conductor - Copper Flex I Size Range300 kcmil
Conductor - Copper Flex K Size300 kcmil
Conductor - Copper Flex K Size Range300 kcmil
Conductor - Copper Flex M Size300 kcmil
Conductor - Copper Flex M Size Range300 kcmil
Conductor - Copper Str Size Range300 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Die Index18;324
Dimension - B Length fraction1-3/16 in
Dimension - B Length inch1.19 in
Dimension - Bolt Hole Size inch0.66 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size inch0.69 in
Dimension - Hole Size mm18 mm
Dimension - L Length Overall mm81 mm
Dimension - Length Overall inch3.18 in
Dimension - N inch0.66 in
Dimension - Outside Diameter inch0.95 in
Dimension - Pad Width inch1.40 in
Dimension - Strip Length inch1-1/4
Dimension - Stud Size inch5/8
Dimension - Z inch0.67 in
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Number of Holes1
Physical Attribute - Tongue AngleStraight
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin
Quantity Per Bag100 pcs
Rating - KVA35 kV
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Unit of MeasureCase of 10 bags
UPC781810020241
UPC 12 Digit7818100202411
Voltage - Maximum35000
