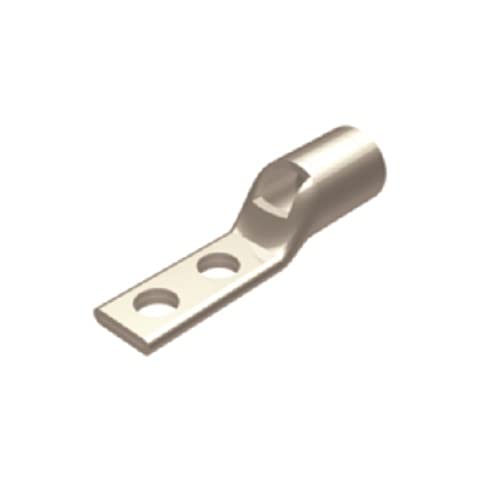

Burndy YA34L2NT12E1

B095RWYMFW

Burndy - YA34L2NT12E1 - CULUG-500-1/2 X 1 NARTNG - (Pack of 1)

Burndy - YA34L2NT12E1 - CULUG-500-1/2 X 1 NARTNG - (Pack of 1)zoom

Attributes

Key Value
ApprovalsCSA, UL
BrandHYLUG
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
Color CodeBrown
Color FamilyBrown
Conductor - Copper DLO .N/A
Conductor - Copper Str .500 kcmil
Conductor - Copper Str .500 kcmil
Connector TypeTerminal
Country of OriginUS - United States
Country of Origin (subj.United States
Die ColorBrown
Die Index20;22
Dimension - B Length fr.1-1/4 in
Dimension - B Length in.1.27 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - D inch2.09 in
Dimension - Inside Diam.0.83 in
Dimension - L Length Ov.105 mm
Dimension - Length Over.4.13 in
Dimension - N inch0.53 in
Dimension - Outside Dia.1.06 in
Dimension - Pad Width i.0.96 in
Dimension - Strip Lengt.1-7/16
Dimension - Stud Size i.1/2
Dimension - Z inch0.56 in
ECCNEAR99
Family SeriesBurndy Terminals
Feature - Barrel TypeStandard
FinishTin-Plated
Gross Weight0 lbs
Item NumberYA34L2NT12E1
ManufacturerBurndy
Manufacturer Part NumberYA34L2NT12E1
MaterialCopper
Material/CompositionCopper
Max Conductor Range500 kcmil
Min Conductor Range500 kcmil
Net Weight0 lbs
Number of Holes2
Physical Attribute - Nu.2
Physical Attribute - To.Straight
PlatedY
Plating TypeTin - Electro Plated
Rating - KVA35 kV
Rating - Minimum Voltage600
Standards - RoHS Compli.CM
Stud Hole Spacing1 in.
Stud Size1/2 in.
Trade NameHYLUG?
UL ListedYes
Use WithCopper Conductor
Voltage - Maximum35000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG40243902349.771In Stock59Burndy49.77 @ 1
thumbzoomusmegastore.comYA34L2NT12E163.251In StockBurndy63.25 @ 1
thumbzoomGalcoYA34L2NT12E1-BURN85.2510In StockBurndy85.25 @ 10
Graybar2580540985.7921In StockBurndy85.792 @ 1
