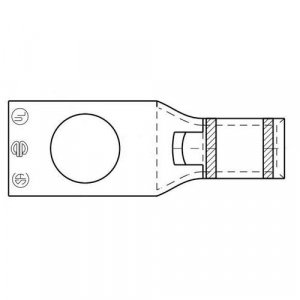

<p><strong>Burndy, YA34LTC38FX, 25003792 Copper Compression Lug, 1 Hole, 350 Kcmil, 3/8" Stud, Flex </strong> </p>
Attributes
| Key ^ | Value |
|---|---|
| Certification - CSA Approved, UL Listed | Yes |
| Certification - cULus, Certification - UL Recognized | No |
| Color Code | Blue |
| Conductor - Copper DLO Size, Conductor - Copper DLO Size Range | 373.7 (925/#24) DLO |
| Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range | 350 kcmil |
| Conductor - Material, Material | Copper |
| Connector Type | Terminal |
| Die Index | 19;470 |
| Dimension - B Length fraction | 1-1/4 in |
| Dimension - B Length inch | 1.27 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction, Dimension - Stud Size inch | 3/8 |
| Dimension - Hole Size inch | 0.40 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Length Overall inch | 2.87 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Pad Width inch | 1.55 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.42 in |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Plating Type | Tin |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| Standards - RoHS Compliance Status | CM |
| Trade Name | HYLUG? |
| Type | Standard Barrel, Tin Plated |
| Voltage - Maximum | 35000 |
