Description:

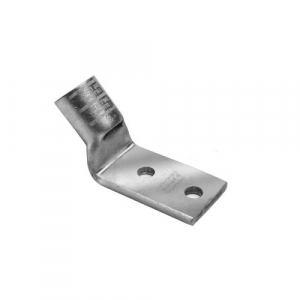

<p>Copper Compression Lug, 2 Holes w/ Inspection Window, 750 kcmil, 3/8" Stud,24 index ,Black,Tin Plated,45 Degree Bend. </p>
Attributes
| Key ^ | Value |
|---|---|
| Color Code | Black |
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Str Size, Conductor - Copper Str Size Range | 750 kcmil |
| Connector Type | Terminal |
| Die Index | 24 |
| Dimension - B Length fraction | 1-7/16 in |
| Dimension - B Length inch | 1.42 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction, Dimension - Stud Size inch | 3/8 |
| Dimension - D inch | 2.06 in |
| Dimension - L Length Overall mm | 112 mm |
| Dimension - Length Overall inch | 4.40 in |
| Dimension - N inch | 0.50 in |
| Dimension - Outside Diameter inch | 1.30 in |
| Dimension - Pad Width inch | 1.63 in |
| Dimension - Strip Length inch | 1-1/2 |
| Dimension - Z inch | 0.56 in |
| Feature - Barrel Type, Physical Attribute - Tongue Type | Standard |
| Material | Copper |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Plated | Y |
| Plating Type | Tin |
| Rating - KVA | 35 kV |
| Trade Name | HYLUG |
| UPC | 781810021231 |
| Voltage - Maximum | 35000 |
