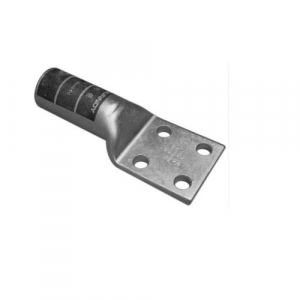

<p><strong>Burndy, YA474N, Copper Compression Lug, 4 Hole w/o Inspection Window, 1/2" Stud, Long Barrel, Tin Plated. </strong> </p>
Attributes
| Key ^ | Value |
|---|---|
| Color Code | Gray |
| Conductor - Copper Str Size, Conductor - Copper Str Size Range | 1750 kcmil |
| Conductor ? Material, Material | Copper |
| Connector Type | Terminal |
| Die Index | 33 |
| Dimension - B Length inch | 3.44 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction, Dimension - Stud Size inch, Dimension - Thread Size | 1/2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 200 mm |
| Dimension - Length Overall inch | 7.89 in |
| Dimension - N inch | 0.63 in |
| Dimension - Outside Diameter inch | 1.98 in |
| Dimension - Pad Width inch | 2.90 in |
| Dimension - Strip Length inch | 3-1/2 |
| Dimension - Z inch | 0.64 in |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Plating Type | Tin plated |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| Trade Name | HYLUG; |
| Type | Long Barrel, Tin Plated |
| Voltage - Maximum | 35000 |
