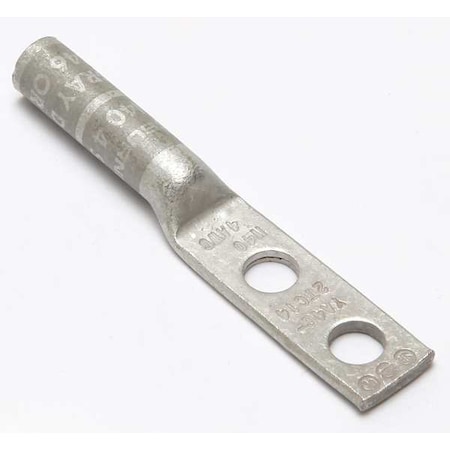

Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Attributes
| Key ^ | Value |
|---|---|
| Application | For Code Conductor |
| Barrel Length | Long |
| Barrel Outside Diameter, Dimension - Outside Diameter inch, Dimension - Z inch | 0.34 in |
| Barrel Size, Feature - Barrel Type, Tongue Style | Standard |
| Barrel Style | Chamfered, Skived |
| Cable Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range, Conductor Size, For Stranded Copper Wire Size - Maximum, For Stranded Copper Wire Size - Minimum, For Wire Size | 4 AWG |
| Color Code | Gray |
| Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range | 40 (19) Navy |
| Connector Type | Long Barrel |
| Contact Finish | Tin |
| Die Code | 346, 8 |
| Dimension - B Length fraction | 1-1/8 in |
| Dimension - B Length inch | 1.12 in |
| Dimension - Bolt Hole Size inch, Dimension - Hole Size inch, Hole Size | 0.27 in |
| Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction | 2023-01-04 |
| Dimension - Bolt Size inch | 0.25 |
| Dimension - D inch | 1.27 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - L Length Overall mm | 69 mm |
| Dimension - Length Overall inch | 2.70 in |
| Dimension - N inch, Hole Center to End | 0.31 in |
| Dimension - Pad Width inch | 0.50 in |
| Dimension - Strip Length inch | 42372 |
| Dimension - Stud Size inch | 44930 |
| For Conductor Material, Material | Copper |
| For Stud Size, Stud Size | 1/4 in |
| For Wire Type | Stranded |
| Hole Center to Center | 0.625 in |
| Industry Standard(s) | UL468A-468B |
| Inspection Hole, Peep Hole | No |
| Item, Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Length | 2.7" |
| Length (Straight Wireway), Overall Length | 2.7 in |
| Maximum Operating Temperature | 194 Degrees F |
| Maximum Voltage | 35 kV AC |
| Overall Width | 0.51 in |
| Physical Attribute - Number of Holes | 2 |
| Plate Material | Electro Tin |
| Rating - Minimum Voltage | 600 |
| RoHS Compliant | Yes |
| Special Features | Corrosion Resistant, Non-Insulated Construction |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Strip Length | 1 3/16 in |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.65 in |
| Tongue Thickness | 0.09 in |
| Tongue Width | 0.5 in |
| Tongue Width Ranges | 0.26 - 0.50 inches |
| Width | 1/2" |
| Wire Size Range | 4 AWG - 4 AWG |
