Burndy YA4CTC38

mpnYA4CTC38
brandname: Burndy
manufacturername: Burndy

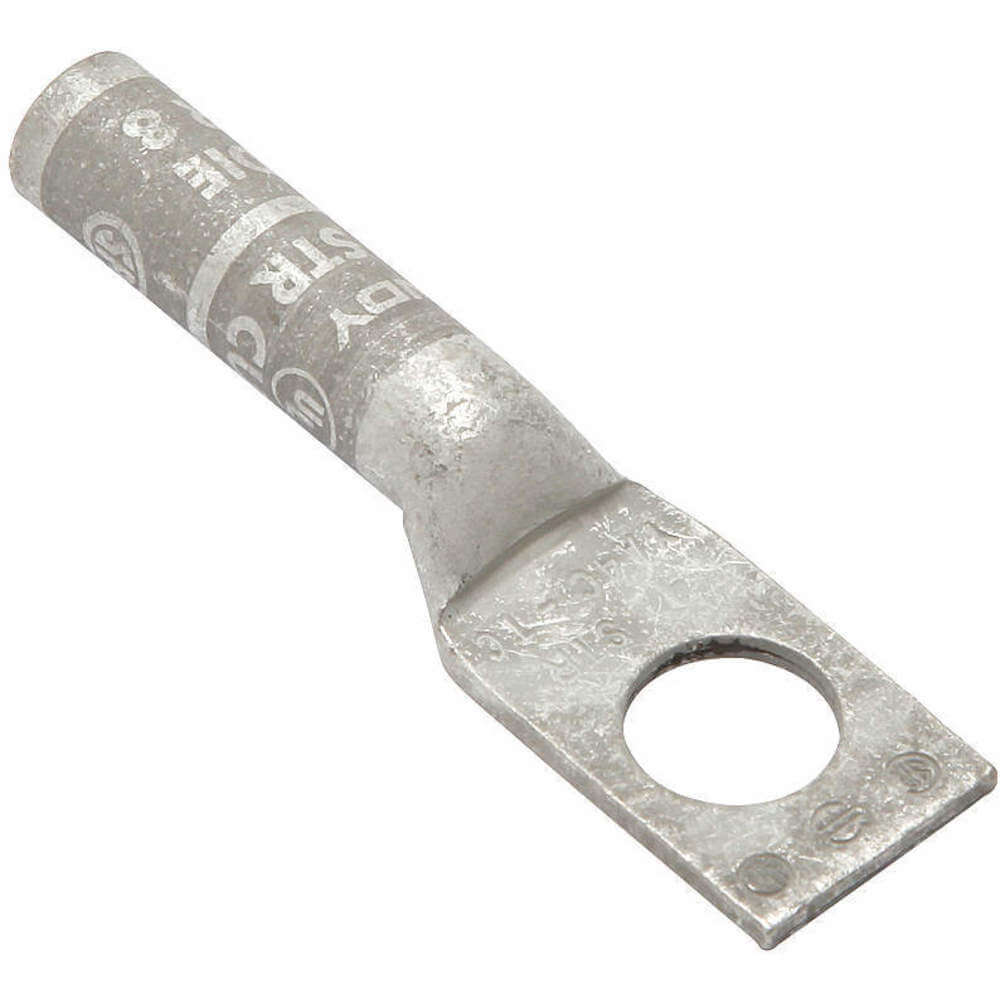

Burndy YA4CTC38 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal, 4 AWG Conductor, 3/8" Stud Hole Size, 0.58" Tongue Width, 2.25" Length

Brand: Burndy
PartNumber: YA4CTC38
Model: YA4CTC38
Color: Gray
Size: #4 AWG
PackageQuantity: 1
Binding: Misc.
Manufacturer: Burndy
Label: Burndy

Attributes

Key	Value
Application	For Code Conductor
Approval	Approval
Approvals	CSA, UL
Barrel Length	Barrel Length, Long
Barrel Outside Diameter	0.34 in
Barrel Size	Long
Barrel Style	Chamfered
Cable Size	4 AWG
Certification - CSA App.	Yes
Color	Gray
Color Code	Gray
Color Family	Gray
Colour Code	Gray
Conductor - Copper Soli.	4 AWG
Conductor - Copper Str .	40 (19) Navy
Conductor - Copper Str .	40 (19) Navy
Conductor - Copper Str .	4 AWG
Conductor - Copper Str .	4 AWG
Conductor - Material	Copper
Conductor Material	Conductor Material
Conductor Size	4 AWG
Connector Type	Straight Barrel, Long B.
Contact Finish	Tin
Country of Origin	US - United States
Die Code	346, 8
Die Color	Gray
Die Index	Die Index
Dimension - B Length in.	1.12
Dimension - Bolt Hole S.	0.4
Dimension - Bolt Size f.	2023-03-08
Dimension - Bolt Size i.	0.38
Dimension - Hole Size f.	2023-03-08
Dimension - Hole Size i.	0.4
Dimension - Hole Size mm	10
Dimension - L Length Ov.	57
Dimension - Length Over.	2.25
Dimension - N inch	0.41
Dimension - Outside Dia.	0.34
Dimension - Pad Width i.	0.58
Dimension - Strip Lengt.	1-3/16 in
Dimension - Stud Size f.	2023-03-08
Dimension - Stud Size i.	3/8 in
Dimension - Z inch	0.42
ECCN	EAR99
Family Series	Burndy Terminals, YA-TC.
Finish	Electro Tin-Plated
For Conductor Material	Copper
For Stranded Copper Wir.	4 AWG
For Stranded Copper Wir.	4 AWG
For Stud Size	3/8 in
For Wire Size	4 AWG
For Wire Type	Solid, Stranded
Gross Weight	0.025 lbs
Hole Center to Center	Not Applicable
Hole Center to End	0.41 in
Hole Size	0.4 in
Inspection Hole	No
Insulated	Non-Insulated
Item	One-Hole Lug Compressio.
Item Number	YA4CTC38
Length	2-1/4"
Length (Straight Wirewa.	2.26 in
Lug Wire Size	4 AWG
Manufacturer	Burndy
Manufacturer Part Number	YA4CTC38
Material	Copper
Max Temp	194 ?F
Maximum Operating Tempe.	194 Degrees F
Maximum Voltage	35 kVAC, 35 kV AC
Net Weight	0.0019 lbs
Number of Holes	1, Number of Holes
Overall Length	Overall Length, 2.25 in
Overall Width	0.59 in
Pad Size	Pad Size
Peep Hole	No
Plate Material	Electro Tin
Plating Material	Electro-Tin
Plating Type	Electro-Tin
Product Series	YA-TC
RoHS Compliant	Yes
Special Features	Non-Insulated Construct.
Standards	CSA Certified, UL 486A-.
Strip Length	1 3/16 in
Stud Size	Stud Size, 3/8 in, 3/8 .
Terminal Material	Copper
Terminal Type	Barrel - Long
Termination Style	Crimp
Tongue Angle	Straight
Tongue Length	0.83 in
Tongue Style	Standard
Tongue Thickness	0.08 in
Tongue Width	0.58 ", 0.58 in
Tongue Width Ranges	0.51 - 0.75 inches
UNSPSC	39121405
UPC ID	UPC ID
Voltage Rating	Voltage Rating
Volts	600 V
Width	0.58"
Wire Size	4 AWG, Wire Size
Wire Size (AWG)	4 AWG
Wire Size Range	4 AWG - 4 AWG
Wire Size Ranges	4 AWG - 4 AWG
Wire Strip Length	1.1875 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
steinerelectric.com	263501	2.97	1	33		BURNDY		2.97 @ 1
Amazon	B00CBNMF8Y	3.22	1	33		Burndy		3.22 @ 1
Graybar	22039211	3.9312	1	28		Burndy		3.9312 @ 1
Heilind Electronics	YA4CTC38	4.5942	1	33		BURNDY DIVISION OF FCI USA		4.5942 @ 1
grainger.ca	WWG22C369	5.1532226	1	33		BURNDY	0.005	5.1532226 @ 1
mecampbell.com	BURYA4CTC38	6.44	1	In Stock	36	Burndy		6.44 @ 1
Zoro	G4701505	6.65	1	568		Burndy	0.01	6.65 @ 1
gordonelectricsupply.com	YA4CTC38	7.1	1	28		BURNDY		7.1 @ 1
Kelly Hayes	YA4CTC38	8.6	1	18		Burndy		8.6 @ 1
Galco	YA4CTC38-BURN	9.2	1	28		Burndy	0.025	9.2 @ 1
Raptor Supplies	AB6RLL	10.458396	1	28		BURNDY		10.458396 @ 1
kirbyrisk.com	2084376	11.14	1	28		Burndy		11.14 @ 1
