CAI - BURNDY YA8C2TC14

B07J9LZ5C9

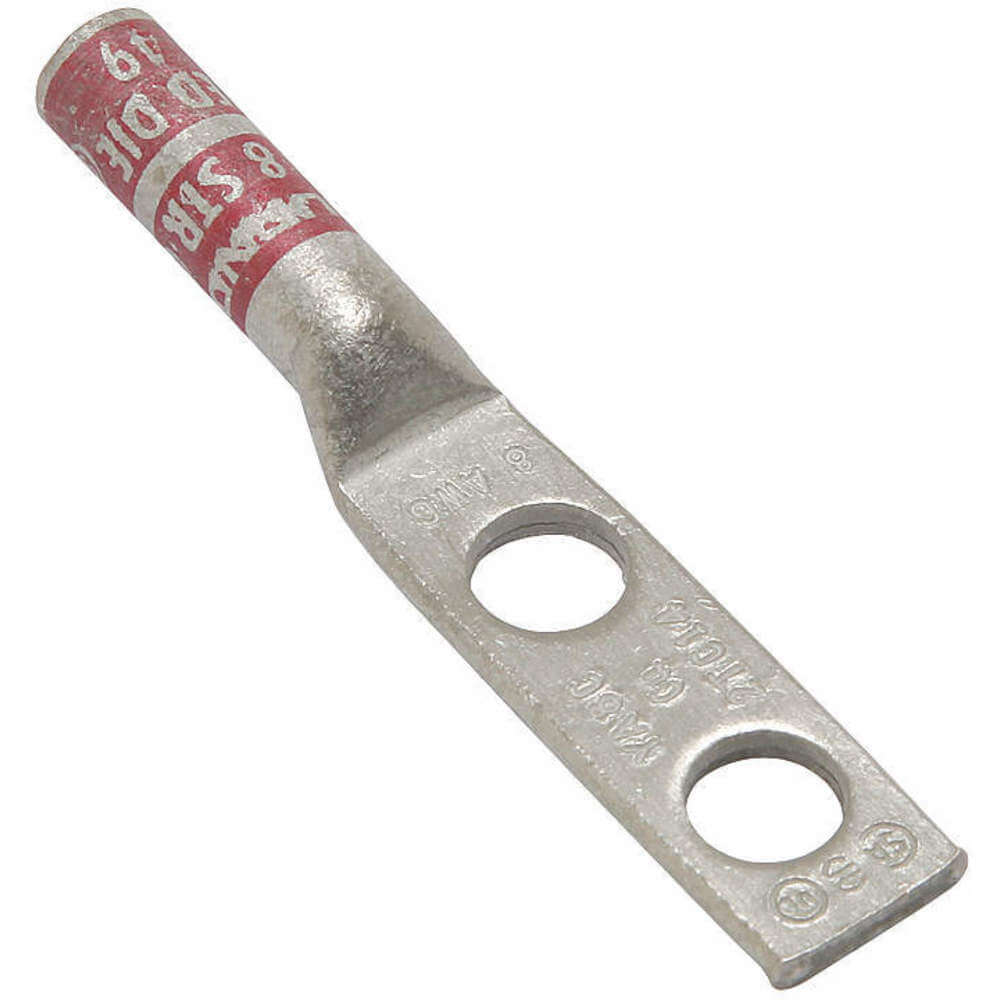

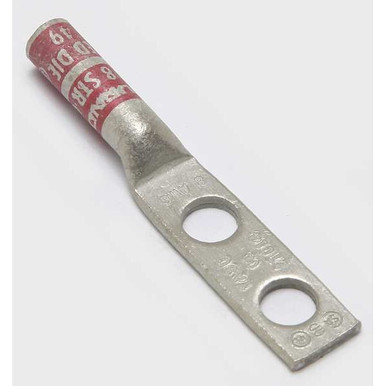

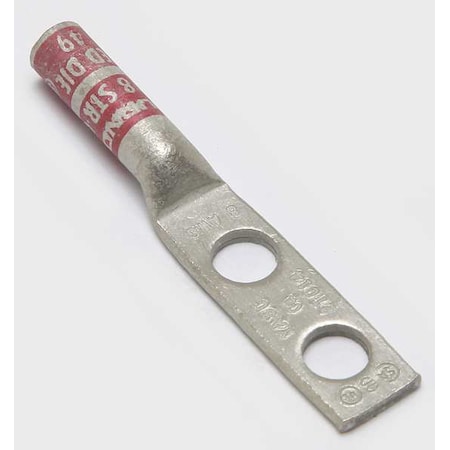

BURNDY 8 AWG Two-Hole Lug Compression Connector, Straight Barrel, Red

BURNDY 8 AWG Two-Hole Lug Compression Connector, Straight Barrel, Redzoom

Attributes

Key Value
ApplicationFor Code Conductor, Wir.
ApprovalsCSA, UL
Barrel LengthLong
Barrel Outside Diameter0.27 in
Barrel SizeLong
Barrel StyleChamfered
BrandBurndy-US, a Hubbell af.
Cable Size8 AWG
Catalog NumberYA8C2TC14
ColorRed
Color CodeRed
Color FamilyRed
Colour CodeRed
Conductor - Copper DLO .8 AWG
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Soli.8 AWG
Conductor - Copper Soli.8 AWG
Conductor - Copper Str ."8 AWG"
Conductor - Copper Str .23 (7) Navy
Conductor - Copper Str .23 (7) Navy
Conductor - Copper Str .8 AWG
Conductor - Copper Str .8 AWG
Conductor Size8 AWG
Connector TypeTerminal, Straight Barr.
Contact FinishTin
Country of OriginUnited States, US - Uni.
Cross Reference Products54850BE
Current Stock397
Die Code49
Die ColorRed
Die Index49
Dimension - B Length in.0.81 in
Dimension - Bolt Size f.2023-01-04
Dimension - Bolt Size i.0.25
Dimension - D inch1.26 in
Dimension - Hole Size f.2023-01-04
Dimension - Hole Size i.0.27 in
Dimension - Hole Size mm7 mm
Dimension - L Length Ov.59 mm
Dimension - Length Over.2.33 in
Dimension - N inch0.31 in
Dimension - Outside Dia.0.27 in
Dimension - Pad Width i.0.44 in
Dimension - Strip Lengt.45115
Dimension - Stud Size f.2023-01-04
Dimension - Stud Size i.44930
Dimension - Z inch0.33 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
FinishElectro Tin-Plated
For Conductor MaterialCopper
For Stranded Copper Wir.8 AWG
For Stranded Copper Wir.8 AWG
For Stud Size1/4 in
For Wire Size6 AWG, 8 AWG, 8 AWG
For Wire TypeSolid, Stranded
Gross Weight0.02 lbs
GTIN00781810019696
Hole Center to Center0.625 in
Hole Center to End0.31 in
Hole Size0.27 in
Inspection HoleNo
InsulatedNon-Insulated
International ShippingNo
ItemTwo-Hole Lug Compressio.
Item NumberYA8C2TC14
Item Type3A, Long Barrel, Tin Pl.
Lead TimeExpected to ship in 1-2.
Length2.33"
Length (Straight Wirewa.2.33 in
Lug Compression Connect.Two-Hole Lug Compressio.
Lug Wire Size6-8 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA8C2TC14
MaterialCopper
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kVAC, 35 kV AC
MpnYA8C2TC14
Net Weight0.02 lbs
Number of Holes2
Overall Length2.33 in
Overall Width0.43 in
Peep HoleNo
Physical Attribute - Nu.2
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
RoHS CompliantYes
SKUZO-G4688503
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
StandardsCSA Certified, UL 486A-.
Strip Length7/8 in
Stud Hole Spacing0.625 in.
Stud Size1/4 in, 1/4 in.
Sub BrandHYLUG
SubCategoryElectrical
Temperature Rating194
Terminal MaterialCopper
Terminal TypeRing
Termination StyleCrimp
Tongue AngleStraight
Tongue Length0.64 in
Tongue StyleStandard
Tongue Thickness0.08 in
Tongue Width0.4 ", 0.44 in
Tongue Width Ranges0.26 - 0.50 inches
Trade NameHYLUG?
TypeLong Barrel, Tin Plated
UNSPSC39121405
UPC781810555705, 781810019.
Voltage Rating35
Width0.44"
Wire Size8 AWG
Wire Size (AWG)8 AWG
Wire Size Range8 AWG - 8 AWG
Wire Strip Length0.625 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar910110386.126413Burndy6.1264 @ 2
grainger.caWWG22C3627.3378986612BURNDY0.057.33789866 @ 2
thumbzoomZoroG46885037.891476Burndy0.057.89 @ 2
thumbzoomusmegastore.comYA8C2TC148.1112Burndy8.11 @ 2
thumbzoomGalcoYA8C2TC14-BURN8.2212Burndy0.028.22 @ 2
thumbzoomsimsupply.comZO-G468850314.911397Burndy14.91 @ 2
kirbyrisk.com54340414.9412Burndy14.94 @ 2
thumbzoomcrescentelectric.com14445115.7512Burndy-US, a Hubbell affiliate15.75 @ 2
thumbzoomRaptor SuppliesAB6RLD16.49208612BURNDY16.492086 @ 2
