mpn:
brand:
manufacturer:
MPN:
Description:

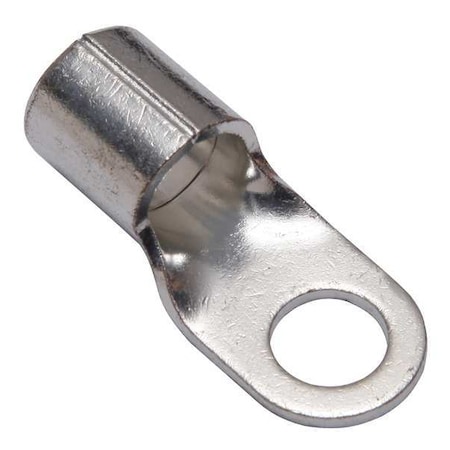

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1 AWG, Maximum Wire Size 1 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
8.51
Min Offer Price:
10.60
Price:
8.51
Min Simple Price:
3.85
Absolute Min Price:
6.43
Min Price:
6.43
Dimensions:
[3.0, 1.0, 1.0]
qty:
25
simpleSku:
NjQxNw:::YAD1CM10E38
sku:
NjQxNw::KH:YAD1CM10E38@y0
condition:
11
seller:
Megadepot
amzMan:
burndy
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Barrel Length, Dimension - B Length inch | 0.63 in |
| Barrel Outside Diameter, Dimension - Outside Diameter inch | 0.57 in |
| Barrel Size, Feature - Barrel Type | Long |
| Barrel Style, Seam, Seam Style | Brazed |
| Brand, Manufacturer | Burndy |
| Cable Size, Conductor - Copper Str Size, Conductor Size, For Wire Size, Max Conductor Range, Maximum Wire Size, Min Conductor Range, Minimum Wire Size, Wire Range | 1 AWG |
| Certification - CSA Approved, Certification - cULus, Certification - UL Recognized, International Shipping, Peep Hole, UL Listed | No |
| Color | Silver |
| Color Code, Insulation, Insulation Coverage, Insulation Material | None |
| Compatible with Product Type | Code, Flex Cable |
| Compatible with Series | PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT |
| Connection Material | Tin Plater Copper |
| Connector Type | Terminal, YAD |
| Contact Finish, Plate Material, Plating Type | Tin |
| Contact Material, Material, Material/Composition | Copper |
| Current Stock | 397 |
| Die Code | 1019 |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Dimension - Hole Size inch, Hole Diameter | 0.41 in |
| Dimension - L Length Overall mm | 43 mm |
| Dimension - Length Overall inch | 1.70 in |
| Dimension - Pad Width inch, Hole Spacing, Tongue Width, Tongue Width - Wire Connector | 0.71 in |
| Dimension - Strip Length inch | 44989, 3/4 |
| Dimension - Stud Size inch | 44993, 3/8 |
| Family Series | Burndy Terminals |
| For Wire Sizes | 1 AWG to 1 AWG |
| Gross Weight | 0.0023 lbs |
| Hole Center to End | 1.340" |
| Industry Standard(s), Standards - Industry Standards Met | UL467 |
| Insulation Color | Bare |
| Insulation Type | Non-Insulated |
| Item | Uninsulated Compression Terminal |
| Item Number, Manufacturer Part Number, Mpn | YAD1CM10E38 |
| Item Type | 3B |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 1.69" |
| Material | Electrolytic Copper |
| Max. Temp. | 302 Degrees F |
| Max. Voltage, Maximum Voltage, Voltage - Maximum | 600 V |
| Maximum Operating Temperature, Minimum Operating Temperature | 302 Degrees F |
| Net Weight | 0 lbs |
| Number of Holes | 1 |
| Overall Length | 1.7 in |
| Physical Attribute - Tongue Type, Tongue Style | Ring |
| Plated | Y |
| Ring Width Ranges | 0.51 - 0.75 inches |
| RoHS Compliant | Yes |
| SKU | ZO-G6087277 |
| Special Features | Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections |
| Standards | UL 467 |
| Standards - RoHS Compliance Status | NC |
| Strip Length | 3/4 in |
| Stud Size | 3/8 in, 3/8 " |
| SubCategory | Electrical |
| Terminal Shape, Type | Ring Tongue |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 1.07 in |
| Tongue Thickness | 0.07 in |
| Trade Name | HYLUG? |
| UPC | 781810668085 |
| Width | 0.71" |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Megadepot | YAD1CM10E38 | 3.85 | 3.85 | 1 | 25 | Burndy | 3.85 @ Qty: 1+ | ||
 | usmegastore.com | YAD1CM10E38 | 4.04 | 4.04 | 1 | 24 | Burndy | 4.04 @ Qty: 1+ | ||
 | Zoro | G6087277 | 4.39 | 4.39 | 1 | 661 | Burndy | 0.05 | 4.39 @ Qty: 1+ | |
 | Galco | YAD1CM10E38-BURN | 5.53 | 113.918 | 50 | 25 | Burndy | 0.0023 | 5.53 @ Qty: 50+ | |
 | Raptor Supplies | AF9ZQB | 7.15104 | 7.15104 | 1 | 25 | BURNDY | 7.15104 @ Qty: 1+ | ||
 | simsupply.com | ZO-G6087277 | 11.6 | 11.6 | 1 | 397 | Burndy | 11.6 @ Qty: 1+ | ||
 | gordonelectricsupply.com | YAD1CM10E38 | 230.5 | 230.5 | 1 | 25 | BURNDY | 230.5 @ Qty: 1+ |
