Burndy YAD1CM16E58

B076CFL492

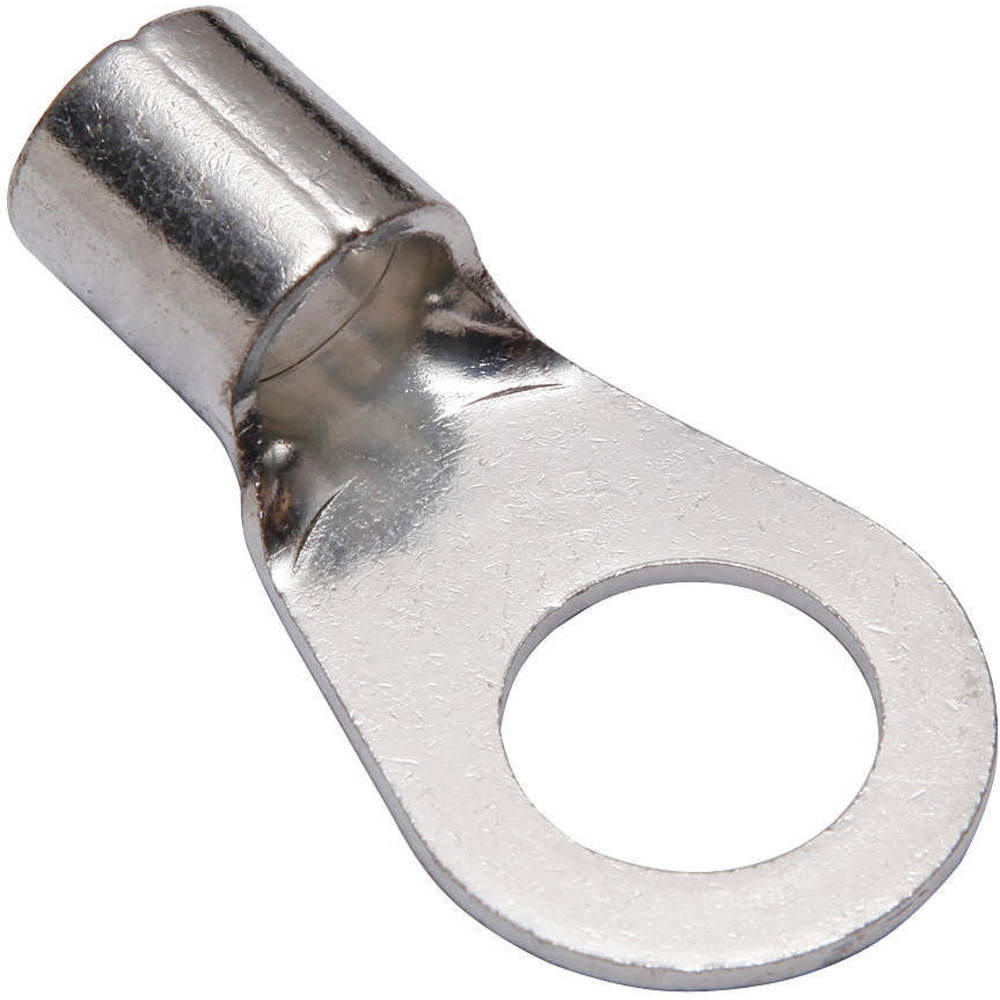

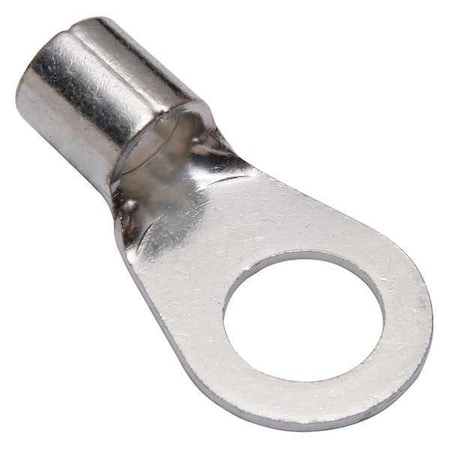

One Hole Lug Compression Connector, 1 AWG

One Hole Lug Compression Connector, 1 AWGzoom

Attributes

Key Value
Barrel LengthShort
Barrel Outside Diameter0.57 in
Barrel SizeLong
BrandBurndy
Cable Size1 AWG
Certification - CSA App.No
Certification - cULusNo
Certification - UL Reco.No
ColorSilver
Color CodeNone
Conductor - Copper Str .1 AWG
Connection MaterialTin Plater Copper
Connector TypeTerminal, YAD
Current Stock97
Die Code1019
Dimension - B Length in.0.63 in
Dimension - Hole Size i.0.67 in
Dimension - L Length Ov.54 mm
Dimension - Length Over.2.12 in
Dimension - Outside Dia.0.57 in
Dimension - Pad Width i.1.10 in
Dimension - Strip Lengt.3/4
Dimension - Stud Size i.5/8
Family SeriesBurndy Terminals
Feature - Barrel TypeLong
For Wire Size1 AWG
For Wire Sizes1 AWG to 1 AWG
Gross Weight0.0028 lbs
Hole Diameter0.67 in
Industry Standard(s)UL467
International ShippingNo
Item NumberYAD1CM16E58
Item Type3B
Lead TimeExpected to ship in 1-2.
Length2.13"
ManufacturerBurndy
Manufacturer Part NumberYAD1CM16E58
MaterialCopper, Electrolytic Co.
Material/CompositionCopper
Max Conductor Range1 AWG
Max. Temp.302 Degrees F
Maximum Wire Size1 AWG
Min Conductor Range1 AWG
Minimum Wire Size1 AWG
MpnYAD1CM16E58
Net Weight0 lbs
Number of Holes1
Overall Length2.12 in
Physical Attribute - To.Ring
PlatedY
Plating TypeTin
Ring Width Ranges1.01 - 1.50 inches
SKUZO-G6119461
Standards - RoHS Compli.NC
Strip Length3/4 in
Stud Size5/8 in, 5/8 "
SubCategoryElectrical
Tongue Length1.49 in
Tongue Width1.1 in
Tongue Width - Wire Con.1.1 in
Trade NameHYLUG?
TypeRing Tongue
UL ListedNo
UPC781810668108
Voltage - Maximum600 V
Width1.1"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYAD1CM16E585.641In StockBurndy5.64 @ 1
thumbzoomMegadepotYAD1CM16E585.921In StockBurndy5.92 @ 1
thumbzoomZoroG61194617.161192Burndy0.067.16 @ 1
thumbzoomGalcoYAD1CM16E58-BURN8.3850In StockBurndy0.00288.38 @ 50
thumbzoomRaptor SuppliesAF9ZQD11.78804251In StockBURNDY11.7880425 @ 1
thumbzoomsimsupply.comZO-G611946114.32197Burndy14.32 @ 1
